Home /Products/LCD TFT Screen/MIPI Interface 3.97 Inch TFT LCD Display 480x800 24PIN For Fingerprint Lock

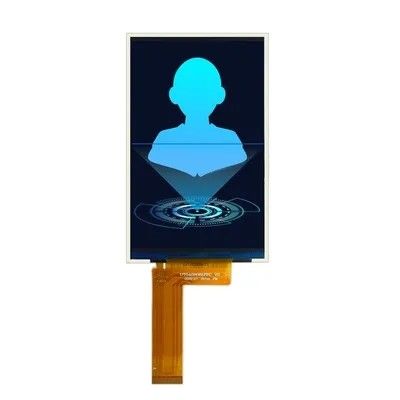

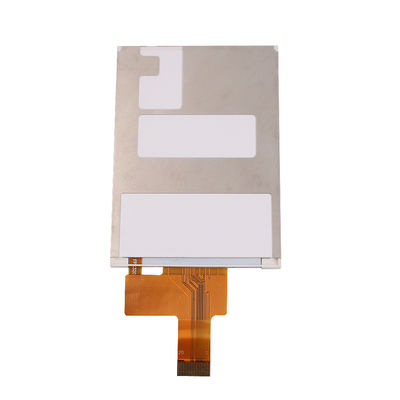

MIPI Interface 3.97 Inch TFT LCD Display 480x800 24PIN For Fingerprint Lock

1000
MOQ
0.1-5USD
Price
MIPI Interface 3.97 Inch TFT LCD Display 480x800 24PIN For Fingerprint Lock
Features Gallery Product Description Request A Quote
Features
Specifications
Name: TFT LCD Display
Contrast Ratio: 1000:1
Display Type: TFT
Resolution: 1920 X 1080
Viewing Angle: 178 Degrees
Pixel Pitch: 0.18mm
Dimensions: 15.6 X 9.3 X 0.8 Inches
Highlight:

3.97 Inch TFT LCD Display

,

TFT LCD Display 480x800

,

MIPI Interface Display
Basic Infomation
Place of Origin: China
Brand Name: BBI
Certification: ISO9001,RoHS,CE,REACH,SGS
Model Number: BBI-001
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 20-30DAYS
Payment Terms: T/T D/P Paypal
Supply Ability: 5000000/months
Product Description

Product Description



MIPI Interface 3.97 Inch TFT LCD Display 480x800 24PIN For Fingerprint Lock



A 3.97-inch TFT screen is a slightly larger version of the typical 3.5-inch TFT display, offering more screen real estate for your embedded or DIY projects. It retains the key advantages of TFT technology—such as vibrant colors, sharp resolution, and fast refresh rates—but with a slightly larger form factor. This makes it suitable for applications that require a bit more space but are still relatively compact.



Basic Parameters:



NO. ITEM SPECIFICATIONS
1 Product Name 3.97 Inch TFT LCD
2 LCD Type IPS
3 Viewing Angle All
4 Resolution
480x800 dots
5 Operating Temperature -20~+70℃
6 Storage Temperature -30~+80℃
7 FPC Connector 24PIN, ZIF type
8 Driver IC(COG) GC9503CV
9 Interface MIPI
10 Backlight Type

8-LED, White, Parallel
11 Backlight Power
Vf=24±1.6V, If=20mA
12 Outline Dimension

57.14(H)* 96.85(V)* 2.20(D) mm
13 Active Area
51.84(H)* 86.40(V) mm



Tag:

TFT Display Screen

TFT LCD Screen

IPS TFT Display
