2.2 Inch VA LCD Display with 5V Negative Driving and 57x29.2x2.0 mm Dimensions for Clear Readability

1000
MOQ
DISCUSSABLE
Price
2.2 Inch VA LCD Display with 5V Negative Driving and 57x29.2x2.0 mm Dimensions for Clear Readability
Features Gallery Product Description Chat Now
Features
Specifications
Backgroundcolor: White
Connectors: PIN
Connector: PIN, 17 Numbers
Vop: 5V
Driving Methor: Negative
Outline Dimension: 57(W)* 29.2(H)* 2.0(T) Mm
LCD Type: Segmented Display
Active Area: 51(W)* 26(H) Mm
Highlight:

2.2 Inch VA LCD Display

,

5V Segment LCD Display

,

57x29.2x2.0 mm 7 Segment LCD Display
Basic Infomation
Place of Origin: China
Brand Name: BBI
Certification: ISO9001 RoHS
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 3-4WEEKS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Product Description
2.2 Inch VA LCD Display 7 Segment White Digits PIN Connect
2.2 Inch VA LCD Display 7 Segment White Digits PIN Connect
Advantages of Segment LCDs in Thermostats
  • Clear Readability: The segmented design of the display makes it easy to read temperature settings, even from a distance.
  • Simplicity: These displays are straightforward and user-friendly, offering just the right amount of information needed (e.g., temperature, mode) without unnecessary complexity.
  • Energy Efficiency: Ideal for devices like programmable thermostats or smart thermostats that need to be power-efficient.
  • Cost-Effective: Segment LCDs are often more affordable to manufacture compared to more complex displays (e.g., full-color or touch screens), making them a popular choice in budget-friendly or mid-range thermostat models.
Detailed Parameters
Outline Dimension 57(W)* 29.2(H)* 2.0(T) mm Display mode VA, Negative
LCD viewing area 51(W)* 26(H) mm Polarizer type Transmissive
Driver IC / LED backlight White
Drive method 1/4 Duty, 1/3 Bias Working voltage 5.0V
Viewing angle 12 O'clock Connection Way PIN, 17 numbers
Operate temperature -20℃~+70℃ Storage temperature -30~+80℃

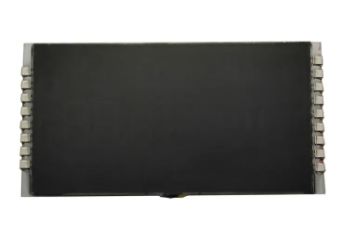

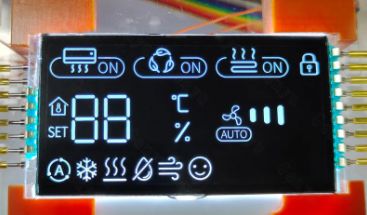

2.2 Inch VA LCD Display with 5V Negative Driving and 57x29.2x2.0 mm Dimensions for Clear Readability 0 2.2 Inch VA LCD Display with 5V Negative Driving and 57x29.2x2.0 mm Dimensions for Clear Readability 1
Common Applications of Segment LCDs in Thermostats
  • Home Thermostats: Used in wall-mounted thermostats to control heating, cooling, and air conditioning systems in residential homes.
  • Smart Thermostats: Although many smart thermostats use full-color touchscreens, some models still utilize segment LCDs to display basic information like current temperature, setpoint, and mode.
  • Industrial and Commercial Thermostats: Segment LCDs are often used in programmable thermostats designed for commercial buildings, HVAC systems, and industrial environments where simplicity and clarity are prioritized.
  • Portable Thermostats: In battery-operated or portable devices, segment displays are ideal due to their energy efficiency and clear readability.
  • HVAC Controllers: Segment LCDs are also commonly used in control panels for HVAC systems, providing users with easy-to-read feedback about system settings and temperature.
Our Services
  1. Free repair within one year after the shipment of products from us.
  2. Replacement within 30 days after the shipment of products from us due to products' problems.
  3. We can print your logo and stick your model No. on the cameras.
  4. We have long cooperation with many shipping companies and our export volume is large. The shipping companies can offer us good discounts.
  5. Professional technician supports. We have a good after-sales service team. They can solve your problems in time.
  6. All goods will be inspected and tested by our engineers and QC/QA before packing and shipment.
  7. Customers satisfactory is most important to us. If you have any problem or questions regarding our transaction, please contact us by Email or online. It will be responded within 24 hours.
  8. Products pictures only for your reference. Please kindly refer to the specification. We can provide the products based on the specification, or you can offer your own specification or drawing. We can customize all kinds of LCD displays for you.

2.2 Inch VA LCD Display with 5V Negative Driving and 57x29.2x2.0 mm Dimensions for Clear Readability 2
