Octagon VA LCD Display with 6 O'clock Viewing Angle 4.8V Working Voltage and 1/4 Duty 1/3 Bias

1000
MOQ
DISCUSSABLE
Price
Octagon VA LCD Display with 6 O'clock Viewing Angle 4.8V Working Voltage and 1/4 Duty 1/3 Bias
Features Gallery Product Description Chat Now
Features
Specifications
Display Mode: VA Negative
View Angle Direction: 6O′clock
Working Voltage: 4.8V
Polarizer Mode: Transflective Transmissive (Customized)
Drive Condition: 1/4 Duty1/3bias
Operating Temperature: 0~+50℃
Backlight: White
Connector: PIN, 19 Numbers
Highlight:

6 O'clock Viewing Angle VA LCD Display

,

4.8V Working Voltage 7 Segment Display

,

1/4 Duty 1/3 Bias Octagon LCD Display
Basic Infomation
Place of Origin: China
Brand Name: BBI
Certification: ISO9001 RoHS
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 3-4WEEKS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Product Description

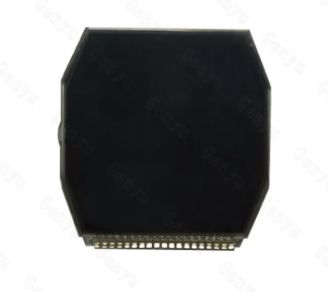

Octagon VA LCD Display Black Background 2 Digit 7 Segment Display
Octagonal VA liquid crystal display with black background and 2-digit 7-segment display is a special type of liquid crystal display device, featuring an octagonal appearance, VA liquid crystal technology, black background, and 2-digit 7-segment display.
Key Features
  • Octagonal design: Unique visual effect suitable for special applications
  • VA technology: High contrast ratio and wide viewing angle
  • Black background: Enhances visibility and reduces glare
  • 2-digit 7-segment display: Shows numbers 0-9 and simple characters
Technical Specifications
LCD Type VA, Negative
Viewing Angle 6 O'clock
Operating Temperature 0~+50℃
Voltage 4.8V
Backlight White
Detailed Parameters
Outline Dimension 35.64(W)* 37.64(H)* 2.8(T) mm Display mode VA, Negative
LCD viewing area 33.64(W)* 33.64(H) mm Polarizer type Transmissive
Driver IC / LED backlight White
Drive method 1/4 Duty, 1/3 Bias Working voltage 4.8V
Viewing angle 6 O'clock Connection Way PIN, 19 numbers
Operate temperature 0℃~+50℃ Storage temperature -10~+60℃
LCD Technology Comparison
  • TN (Twisted Nematic): Basic, low-cost with limited viewing angles
  • VA (Vertical Alignment): High contrast and better viewing angles (used in this product)
  • STN (Super Twisted Nematic): Improved contrast for larger displays
Octagon VA LCD Display with 6 O'clock Viewing Angle 4.8V Working Voltage and 1/4 Duty 1/3 Bias 0 Octagon VA LCD Display with 6 O'clock Viewing Angle 4.8V Working Voltage and 1/4 Duty 1/3 Bias 1

Octagon VA LCD Display with 6 O'clock Viewing Angle 4.8V Working Voltage and 1/4 Duty 1/3 Bias 2

Applications
Ideal for motorcycle dashboards, smart home appliances, and other devices requiring special appearance designs with clear numeric displays.
