Features

Specifications

Touchscreen: No

Interface: SPI

Active Area: 30.57(W)* 22.76(H) Mm

Dimensions: 35.65(W)* 32.50(H)* 4.10(T) Mm

Module Size: 211.1(H) X 126.5(V) X (5.9)(T)mm

Fpc Connect: 12PIN, ZIF Type

Size: 1.5 Inch

Va Size: 31.65(W)* 23.80(H) Mm

Highlight:

1.5 Inch Graphic LCD Display

128x64 Resolution LCD Module

3.0V Voltage Monochrome COG Display

Basic Infomation

Place of Origin: China

Brand Name: BBI

Certification: ISO9001 RoHS

Document: Product Brochure PDF

Payment & Shipping Terms

Packaging Details: CARTON

Delivery Time: 3-4WEEKS

Payment Terms: T/T

Supply Ability: 100000/MONTH

Gallery

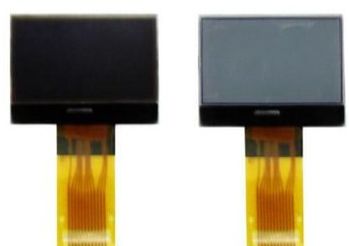

1.5 Inch 128x64 Resolution Graphic LCD Display with 3.0V Voltage and ST7567 Controller

Product Description

1.5 Inch 128 X 64 Graphic LCD Display FSTN Transmissive ST7567 SPI Interface

Product Overview

This 1.5-inch graphic LCD display features 128x64 resolution with FSTN transmissive technology and ST7567 SPI interface, ideal for embedded systems and handheld devices.

Key Features

128x64 Resolution: Provides clear display of text, graphics, and basic images for small embedded systems and interfaces.
ST7567 Controller: Supports both parallel and serial communication with SPI interface for easy microcontroller integration.

Technical Specifications

Parameter	Value
LCD Type	FSTN (Gray), Positive
Viewing Angle	6 O'clock
Resolution	128x64 dots
Working Voltage	3.0V
Operating Temperature	-20~+70℃
Driver IC	ST7567A
Interface	SPI
Backlight	3-LEDs, White, Parallel
Outline Dimensions	35.65(W) * 32.50(H) * 4.10(T) mm
