3.3V VA LCD Display Panel with 105(W)*51(H) mm Viewing Area and 12 O'clock Viewing Angle for High Contrast Applications

1000
MOQ
DISCUSSABLE
Price
3.3V VA LCD Display Panel with 105(W)*51(H) mm Viewing Area and 12 O'clock Viewing Angle for High Contrast Applications
Features Gallery Product Description Chat Now
Features
Specifications
Backlight Type: LED
Backlight: White
Connector Type: PIN(Customized)
VA Size: 105(W)* 51(H) Mm
Display Mode: VA, Negative
View Angle Direction: 12 O′clock
Connector: Pin
Driving Condition: 3.3V
Highlight:

105(W)*51(H) mm VA LCD Display

,

12 O'clock Viewing Angle LCD Segment Display

,

High Contrast VA LCD Panel
Basic Infomation
Place of Origin: China
Brand Name: BBI
Certification: ISO9001 RoHS
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 3-4WEEKS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Product Description
3.3V VA LCD Display Panel Black LCD Segment Display 46PIN White Backlight
High-quality VA LCD screen panel featuring black segment display with 3.3V operation and 46PIN white backlight.
Technical Specifications
LCD Type VA, Negative
Viewing Angle 12 O'clock
Operating Temperature -20~+70℃
Voltage 3.3V
Connector PIN
Detailed Parameters
Outline dimension 108(W)* 56(H)* 3.1(T) mm Display mode VA, Negative
LCD viewing area 105(W)* 51(H) mm Polarizer type Transmissive
Operating temp. -20~+70℃ LED backlight White
Drive method 1/4 Duty, 1/3 Bias Working voltage 3.3V
Viewing angle 12 O'clock Connection Way PIN, 46 numbers
Key Features
  • High Contrast: Produces deeper black background with brighter, more vivid segments for excellent visibility.
  • Wide Viewing Angles: Offers superior readability with up to 170° viewing angles in both directions.
  • Energy Efficiency: Low power consumption ideal for battery-operated devices.
  • Temperature Tolerance: Reliable operation from -20°C to 70°C.
  • Customizable Designs: Supports custom segments for specific applications including icons, numbers, and bar graphs.

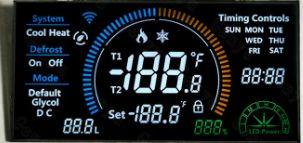

3.3V VA LCD Display Panel with 105(W)*51(H) mm Viewing Area and 12 O'clock Viewing Angle for High Contrast Applications 0
3.3V VA LCD Display Panel with 105(W)*51(H) mm Viewing Area and 12 O'clock Viewing Angle for High Contrast Applications 1
Applications
This 3.3V VA LCD panel with black segments and white backlight is versatile for multiple industrial and commercial applications:
  • Smart Electricity Meters: Clearly displays consumption data, fees, and usage status with high contrast.
  • Industrial Control Equipment: Ideal for displaying working status, parameters, and alarms in PLCs and frequency converters.
  • Medical Instruments: Perfect for blood glucose meters and blood pressure monitors with clear data display.
  • Household Appliances: Used in microwaves, air conditioners, and refrigerators for status and mode displays.
  • Portable Instruments: Suitable for handheld multimeters and gas detectors with its compact design and low power consumption.

3.3V VA LCD Display Panel with 105(W)*51(H) mm Viewing Area and 12 O'clock Viewing Angle for High Contrast Applications 2
