Bar Type VA LCD Display with High Contrast Black Segment Screen and RGB Color for Wide Temperature Range Applications

1000
MOQ
0.7-7USD
Price
Bar Type VA LCD Display with High Contrast Black Segment Screen and RGB Color for Wide Temperature Range Applications
Features Gallery Product Description Chat Now
Features
Specifications
Display Technology: LCD
Type: VA Display
Pins Number: 49PINS
View Angle Direction: 6 O′clock
Driving Condition: 5.0 V
Display Mode: Negative
Connectors: PIN
Storage Temp: -30ºC-+80ºC
Highlight:

High Contrast VA LCD Display

,

Wide Temperature Range VA Segment LCD

,

Low Power Consumption Bar Type LCD Display
Basic Infomation
Place of Origin: China
Brand Name: BBI
Certification: ISO9001 RoHS
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 3-4WEEKS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Product Description
Bar Type VA LCD Display Black Segment Screen RGB Color 6 O'clock
VA LCD Display Black Segment Screen Bar Type RGB Color 6 O'clock
Detail Information
LCD Type: VA, Negative
Viewing Angle: 6 O'clock
Operating Temperature: -20~+70℃
Voltage: 5.0V
Backlight: RGB Color
Why Choose VA Segment LCDs?
  • Cost-effective display solution with excellent contrast, wide viewing angles, and low power consumption
  • Ideal for static or semi-static information display where vibrant visuals and readability are essential
Summary:
VA Segment LCDs combine the benefits of vertical alignment technology with the simplicity of segmented displays. They offer high contrast, wide viewing angles, and energy efficiency, making them versatile for a broad range of applications like consumer electronics, automotive dashboards, and medical devices.
Detailed Parameters:
Outline Dimension 341.5(W)* 96.5(H)* 2.8(T) mm Display mode VA, Negative
LCD viewing area 337.5(W)* 90.0(H) mm Polarizer type Transmissive
Driver IC / LED backlight RGB color
Drive method 1/1 Duty, 1/1 Bias Working voltage 5.0V
Viewing angle 6 O'clock Connection Way PIN, 49 numbers
Operate temperature -20℃~+70℃ Storage temperature -30~+80℃

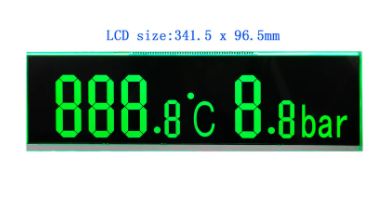

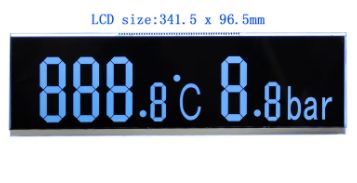

Bar Type VA LCD Display with High Contrast Black Segment Screen and RGB Color for Wide Temperature Range Applications 0 Bar Type VA LCD Display with High Contrast Black Segment Screen and RGB Color for Wide Temperature Range Applications 1
Display Principle
VA (Vertical Alignment) liquid crystal display technology arranges liquid crystal molecules vertically to the substrate when no voltage is applied, making the screen appear black. When voltage is applied, the molecules align horizontally, allowing light to pass through and display white or other color segment information.
Viewing Angle Characteristics
The 6 o'clock viewing angle provides optimal visibility when viewing from below the screen (similar to the 6 o'clock position on a clock). This design ensures clear, distortion-free display in specific installation scenarios.
Color and Display Mode
Features a high-contrast black background with white text display, clearly visible in various lighting conditions. RGB color elements may be used for specific markings or backlighting.
Application Fields
Ideal for vehicle instrument panels, industrial control equipment, outdoor power supplies, and energy storage devices due to its high contrast, wide viewing angle, and temperature adaptability.
Bar Type VA LCD Display with High Contrast Black Segment Screen and RGB Color for Wide Temperature Range Applications 2
Bar Type VA LCD Display with High Contrast Black Segment Screen and RGB Color for Wide Temperature Range Applications 3
