130(W)*80(H) mm VA LCD Module with 1/4 Duty 1/3 Bias and COB+PIN 35 Numbers for Electroacupuncture Device

1000
MOQ
0.7-7USD
Price
130(W)*80(H) mm VA LCD Module with 1/4 Duty 1/3 Bias and COB+PIN 35 Numbers for Electroacupuncture Device
Features Gallery Product Description Chat Now
Features
Specifications
Va Size: 130(W)* 80(H) Mm
Drive Method: 1/4 Duty, 1/3 Bias
Backlight Type: LED
Connectivity: COB+PIN, 35 Numbers
Active Area: 36.72(H)* 48.96(V) Mm
Backlight Technology: LED
Light Source: White LED
Display Type: VA, Negative
Highlight:

130(W)*80(H) mm VA LCD Module

,

1/4 Duty 1/3 Bias VA LCD Display

,

COB+PIN 35 Numbers VA LCM
Basic Infomation
Place of Origin: China
Brand Name: BBI
Certification: ISO9001 RoHS
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 3-4WEEKS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Product Description
4.8V VA LCD Module LCM Black Color Segments For Electroacupuncture Device

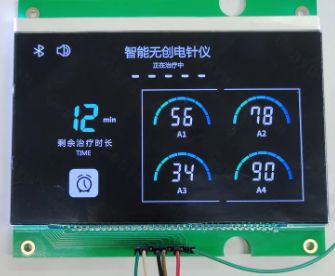

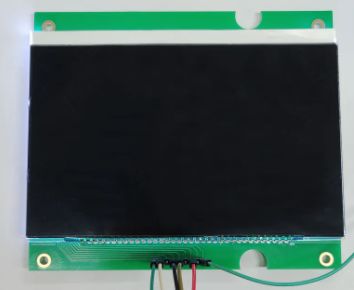

130(W)*80(H) mm VA LCD Module with 1/4 Duty 1/3 Bias and COB+PIN 35 Numbers for Electroacupuncture Device 0 130(W)*80(H) mm VA LCD Module with 1/4 Duty 1/3 Bias and COB+PIN 35 Numbers for Electroacupuncture Device 1
A VA LCD (Vertical Alignment Liquid Crystal Display) is a type of LCD technology where liquid crystals are naturally aligned vertically to the glass substrate when no voltage is applied. This alignment blocks light from passing through, creating deep black levels. When a voltage is applied, the crystals tilt, allowing light to pass through and create the desired image.
VA LCDs are known for their excellent contrast ratios, better color reproduction, and improved viewing angles compared to older LCD technologies like TN (Twisted Nematic).
Technical Specifications
LCD Type VA, Negative
Viewing Angle 6 O'clock
Operating Temperature 0~+50℃
Voltage 4.8V
Backlight White
Detailed Parameters
Outline Dimension 133(W)* 114.3(H)* 7.7(T) mm Display mode VA, Negative
LCD viewing area 130(W)* 80(H) mm Polarizer type Transmissive
Driver IC HT1621 LED backlight White
Drive method 1/4 Duty, 1/3 Bias Working voltage 5.0V
Viewing angle 6 O'clock Connection Way COB+PIN, 35 numbers
Operate temperature 0℃~+50℃ Storage temperature -10~+60℃
Key Features
  • High contrast: The background color is extremely dark like ink, with very high black-white contrast ratio for clear, eye-catching display
  • Negative display mode: Black background with white characters provides excellent visibility in various lighting conditions
  • Wide operating range: Works from 2.7V to 5.0V (4.8V nominal) and -20℃ to 70℃ temperature range
  • Multiple connection options: Supports metal pin feet, conductive rubber strips, heat-pressed zebra paper, and FPC connections
  • Stable performance: Resistant to external interference with long-term reliability for medical applications
Structure and Components
The module consists of liquid crystal panels, driving ICs (HT1621), backlight modules (white LED), and connectors. The driving IC controls liquid crystal molecule arrangement for image display, while the backlight ensures visibility in dim environments.
Medical Applications
This VA LCD module is ideal for electroacupuncture devices, displaying treatment parameters, working status, and operation prompts. Its high contrast and stable performance help medical staff and patients accurately monitor device operation.

130(W)*80(H) mm VA LCD Module with 1/4 Duty 1/3 Bias and COB+PIN 35 Numbers for Electroacupuncture Device 2
