Home /Products/VA LCD Display/3.5 Inch Square Shape VA LCD Display 3 Digit Seven Segment Display with 19 PIN

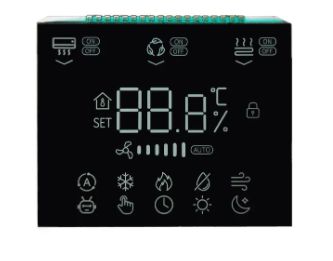

3.5 Inch Square Shape VA LCD Display 3 Digit Seven Segment Display with 19 PIN

1000
MOQ
0.7-7USD
Price
3.5 Inch Square Shape VA LCD Display 3 Digit Seven Segment Display with 19 PIN
Features Gallery Product Description Request A Quote
Features
Specifications
Pins Number: 19PINS
Customized: Customized
Display Type: VA LCD
Bias: 1/3
Lcd Drive Voltage: 5.0V
Display Color: White
Operating Temp: -20~+70℃
Drive Condition: 1/4 Duty,1/3 Bias
Highlight:

3.5 Inch VA LCD Display

,

3 Digit Seven Segment Display

,

19 PIN LCD Module
Basic Infomation
Place of Origin: China
Brand Name: BBI
Certification: ISO9001 RoHS
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 3-4WEEKS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Product Description
3.5 Inch Square Shape VA 3 Digit Seven Segment Display 19 PIN
VA LCD Display 3 Digits 7 Segment 3.5 Inch Square Shape 19 PIN
Detail Information
LCD Type VA, Negative
Viewing Angle 12 O'clock
Operating Temperature -20~+70℃
Voltage 5.0V
Backlight White
Example of a Thermostat Segment LCD Design
  • Temperature Display: A large numerical readout (e.g., "72" for 72°F)
  • Mode Indicators: Small icons or text for modes like "HEAT," "COOL," or "OFF"
  • Setpoint Indicators: Numbers or symbols to indicate the user-set temperature
  • Status Indicators: Symbols for fan operation, battery status, or Wi-Fi connection
Detailed Parameters
Outline Dimension 72.0(W)* 60.5(H)* 2.0(T) mm Display mode VA, Negative
LCD viewing area 69.0(W)* 55.5(H) mm Polarizer type Transmissive
Driver IC / LED backlight White
Drive method 1/4 Duty, 1/3 Bias Working voltage 5.0V
Viewing angle 12 O'clock Connection Way PIN, 19 numbers
Operate temperature -20℃~+70℃ Storage temperature -30~+80℃
3.5 Inch VA 3 Digit Seven Segment Display Close-up of 3.5 Inch VA Display
Product Features
Dimensions and shape: The diagonal size is 3.5 inches and it is square-shaped. This size is relatively compact and suitable for devices with limited space but requiring the display of digital information, such as small instruments and portable electronic devices.
Panel type: Uses VA (Vertical Alignment) technology with high contrast ratio for vivid colors and clear character display. Features wide viewing angles (178°/178°) for visibility from different angles.
Display mode: 3-digit seven-segment display capable of showing numbers 0-9 and simple symbols. Ideal for counters, clocks, temperature displays, and other numerical applications.
Pins and interfaces: 19-pin configuration provides comprehensive connections for data input/output, control signals, and power supply between the display and control devices.
Packaging & Shipping
Packaging: Carton boxes, cupboard, EPE, blister tray. Packaging method depends on product size and customer requirements, with variations for different countries.
Packaging options for LCD display
Shipping: Available via express (DHL, FedEx, EMS, UPS), air shipping, or sea shipping according to customer preference.
Shipping options for LCD display
Payment Method
Accepted payment methods

3.5 Inch Square Shape VA LCD Display 3 Digit Seven Segment Display with 19 PIN

Tag:

VA LCD Panel

VA LCD Module

LCD Segment Display
