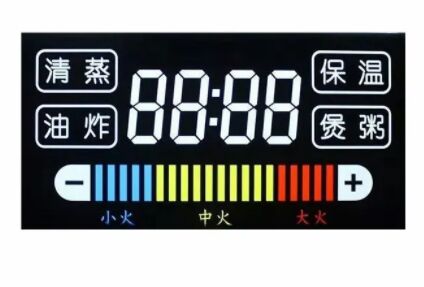

4.5V 7 Segment LCD Display with 6 O'clock Viewing Direction and Customizable Monochrome LCD Module

1000
MOQ
0.7-7USD
Price
4.5V 7 Segment LCD Display with 6 O'clock Viewing Direction and Customizable Monochrome LCD Module
Features Gallery Product Description Chat Now
Features
Specifications
Product Type: VA LCD Display
Color Depth: 16.7 Million Colors (24-bit)
Connect: Pin, Zebra
Surface Treatment: Anti-glare Coating
Viewing Direction: 6 O'clock Or 12 O ' Clock
Module Size: Customized
Display Size: Customized
Operating Temperature: -20°C To 70°C
Highlight:

4.5V LCD Display

,

7 Segment LCD Module

,

6 O'clock Viewing Direction LCD
Basic Infomation
Place of Origin: China
Brand Name: BBI
Certification: ISO9001 RoHS
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 3-4WEEKS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Product Description
4.5V Customize 7 Segment LCD Display, Liquid Crystal Monochrome LCD Module
4.5V 7 Segment LCD Display with 6 O'clock Viewing Direction and Customizable Monochrome LCD Module 0 4.5V 7 Segment LCD Display with 6 O'clock Viewing Direction and Customizable Monochrome LCD Module 1
Product Specifications
Type VA LCD Display
Storage Temperature -20°C to +70°C
Voltage 4.5V
Connector Pin or Zebra
Driving Method Static/Dynamic
Polarizer Type Transflective/Transmissive/Reflective
Technical Details
Item Content Description
LCD Type TN, HTN, FSTN, VA, DFSTN, STN LCD Display Various LCD technology options
Outline Size Customized Tailored to your requirements
Viewing Direction 6 O'clock or 12 O'clock Optimal viewing angle selection
Voltage 2.8V, 3.0V, 3.2V, 3.6V, 4.0V, 4.5V, 5.0V Multiple voltage options available
Display Mode Positive or Negative Contrast options
Backlight With or without Optional illumination
Operation Temperature 0°C to +50°C, -10°C to +60°C, -20°C to +70°C Wide operating range
Storage Temperature -10°C to +60°C, -20°C to +70°C, -30°C to +80°C, -35°C to +90°C Robust storage conditions
Contactor Pin, Zebra or FPC Flexible connection options
Key Features
  • 4.5V operating voltage - Compatible with specific power systems without additional voltage stabilizing circuits
  • Custom driving methods - Supports 1/3BIAS, 1/4DUTY and other configurations
  • Monochrome 7-segment display - Clear presentation of 0-9 numbers with customizable decimal points and symbols
  • Multiple LCD modes - Supports TN, HTN, STN, VA technologies with customizable viewing angles
  • Optional backlighting - White, blue, or yellow LED options for low-light environments
  • Extensive customization - Dimensions, connectors, temperature ranges, and display content can be tailored
  • Robust construction - Low power consumption, anti-interference, and wide temperature tolerance (-30°C to 80°C)
  • Compact design - Available in 0.55mm and 0.7mm glass thickness options
Applications
  • Instrumentation - Multimeters, digital voltmeters, electronic scales, vernier calipers
  • Consumer Electronics - Calculators, electronic clocks, timers, battery indicators
  • Home Appliances - Air conditioners, washing machines, microwave ovens, water heaters
  • Industrial Control - Equipment monitoring displays for pressure, speed, and temperature
  • Medical Devices - Blood pressure monitors, blood glucose meters, thermometers

4.5V 7 Segment LCD Display with 6 O'clock Viewing Direction and Customizable Monochrome LCD Module 2
