Home /Products/LCD Display Module/7 Inch 16x2 LCD Display Module Character 1602 STN Blue Background White Backlight

7 Inch 16x2 LCD Display Module Character 1602 STN Blue Background White Backlight

1000
MOQ
0.1-5USD
Price
7 Inch 16x2 LCD Display Module Character 1602 STN Blue Background White Backlight
Features Gallery Product Description Request A Quote
Features
Specifications
Module Size: 54.5(H)x83.0(V)x4.0(Max) Mm
Name: 1602 LCD Display Module
Photo Format: JPG,PNG,BMP
Screen Size: 7 Inches
Dimensions: 180mm X 120mm X 20mm
Touch Panel Type: Capacitive
Driving Method: 1/64Duty, 1/6 Bias
Active Display Area: 293.76mm * 165.24mm
Tft Active Area: 51.84(W)×86.4(H) Mm
Highlight:

16x2 LCD Display Module

,

1602 LCD Display Module

,

7 Inch LCD Display Module
Basic Infomation
Place of Origin: China
Brand Name: BBI
Certification: ISO9001,RoHS,CE,REACH,SGS
Model Number: BBI-001
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 20-30DAYS
Payment Terms: T/T D/P Paypal
Supply Ability: 5000000/months
Product Description
7 Inch 16x2 LCD Display Module Character 1602 STN Blue Background White Backlight
Product Description

(1) Display Type: STN/ BLUE, Negative, Transmissive

(2) Display Mode: 16 characters x 2 lines

(3) Backlight Type:  White LEDs, Side
(4) Driving Method: 1/16 Duty, 1/5 Bias, 3.3V
(5) Interface: 4-bits or 8-bits interface

(6) Viewing Angle: 6 O'clock


Structure LCD + IC + ZEBRA + BL + PCB
PCB Size 80(L)*36(W)*11(D) mm
Viewing Area 66(W)*17(H) mm
Active Area 56.21(W)*11.5(H) mm
Dot Size 0.56(W)*0.56(H) mm
Operating Temperature -20~+70 °C
Storage Temperature -30~+80 °C

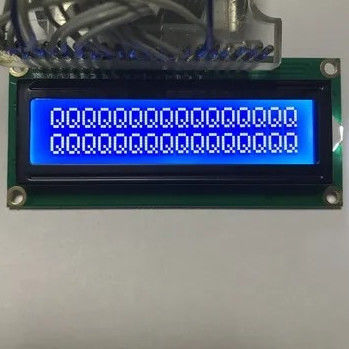

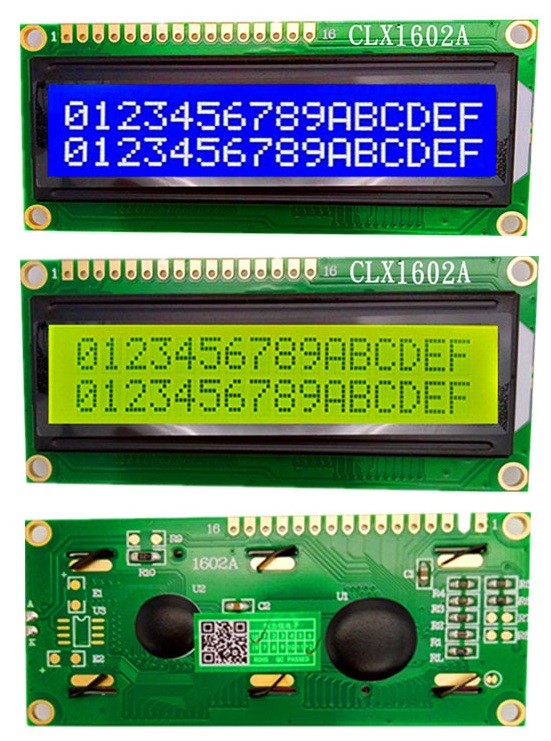

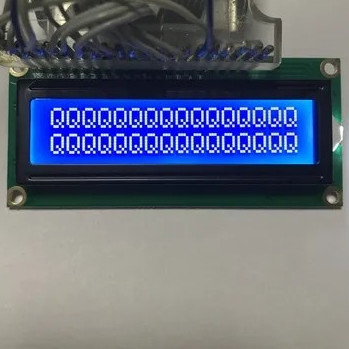

 7 Inch 16x2 LCD Display Module Character 1602 STN Blue Background White Backlight 0           7 Inch 16x2 LCD Display Module Character 1602 STN Blue Background White Backlight 1





CHARACTER / GRAPHIC TYPE LCD MODULES LIST:

Model

Content
 (W X H)

Module size
W x H(mm)

View area
W x H(mm)

Dot size
W x H(mm)

Dot pitch
W x H(mm)

Driving Method

Controller LSI or Equiv

IC
Package

STN-TYPE

FSTN-TYPE

8D -C2004A

20X4

98.0X60.0

76.0X25.2

0.55X0.55

2.95X4.75

1/16

S6A0069

COB

Y

Y

8D -C2004B

20X4

77.0X47.0

60.0X22.0

0.42X0.46

2.3X4.03

1/16

S6A0070

COB

Y

Y

8D -C2004C

20X4

146.0X62.5

123.5X43.0

0.92X1.1

4.84X9.22

1/16

S6A0069

COB

Y

Y

8D -C2402A

24X2

118.0X36.0

93.5X16.0

0.6X0.65

3.2X5.55

1/16

S6A0069

COB

Y

Y

8D -C2402B

24X2

208.0X40.0

178.0X23.0

1.16X1.16

6.0X9.63

1/16

S6A0069

COB

Y

Y

8D -C4001A

40X1

182.0X33.5

154.4X16.5

0.6X0.75

3.2X6.35

1/16

S6A0069

COB

Y

Y

8D -C4002B

40X2

182.0X33.5

154.4X16.5

0.6X0.65

3.2X5.55

1/16

S6A0069

COB

Y

Y

8D C4004A

40X4

190.0X54.0

147.0X29.5

0.5X0.55

2.78X4.89

1/16

S6A0069

COB

Y

Y

8D -G12232A

122X32

84.0X44.0

60.0X18.5

0.4X0.4

0.44X0.44

1/32

SED1520

COB

Y

Y

8D -G12232B

122X32

80.0X36.0

55.0X18.5

0.36X0.41

0.4X0.45

1/32

SED1520

COB

Y

Y

8D -G12232C

122X32

98.0X60.0

76.0X25.2

0.53X0.61

0.57X0.65

1/32

SED1520

COB

Y

Y

8D -G12232D

122X32

80.2X47.4

76.0X25.2

0.53X0.61

0.57X0.65

1/32

SED1520

COB

Y

Y

8D -G12864A

128X64

78.0X70.0

62.0X44.0

0.39X0.55

0.44X0.6

1/64

S6B0108A

COB

Y

Y

8D -G12864B

128X64

105.0X60.5

72.0X40.0

0.48X0.48

0.52X0.52

1/64

S6B0108A

COB

Y

Y

8D -G12864C

128X64

93.0X70.0

72.0X40.0

0.48X0.48

0.52X0.52

1/64

S6B0108A

COB

Y

Y

8D -G12864D

128X64

113.0X65.0

72.0X40.0

0.48X0.48

0.52X0.52

1/64

S6B0108A

COB

Y

Y

8D -G12864E

128X64

93.0X70.0

72.0X40.0

0.48X0.48

0.52X0.52

1/64

ST7920

COB

Y

Y

8D -G19264A

192X64

130X65.0

104.0X39.0

0.46X0.46

0.51X0.51

1/64

S6B0108A

COB

Y

Y

8D -G19264B

192X64

120X62.0

104.0X39.0

0.46X0.46

0.51X0.51

1/64

S6B0108A

COB

Y

Y

8D -G24064B

240X64

180.0X65.0

132.0X39.0

0.53X0.53

0.49X0.49

1/64

T6963C

QFP/COB

Y

Y

8D -G240128A

240X128

144X104

114X64

0.4X0.4

0.45X045

1/128

T6963C

QFP/COB

Y

Y
