0.96 Inch RGB TFT Display SPI Interface 80x160 Resolution 13PIN FPC
A compact 0.96-inch TFT LCD display featuring 80x160 resolution and SPI interface, ideal for electronic projects, DIY applications, and small devices requiring vivid color display.
Product Overview
This 0.96-inch TFT LCD display offers an optimal balance of compact size, high resolution, and rich color depth, making it perfect for various electronic applications.
Key Features
- High resolution: 80x160 pixels
- Rich color depth: Supports 65K or 262K colors
- SPI interface for easy microcontroller integration
- Compact design suitable for space-constrained applications
- Wide viewing angle with IPS technology
- Low power consumption for extended battery life
Technical Specifications
| Parameter |
Specification |
| Product Name |
0.96 Inch TFT LCD |
| LCD Type |
IPS |
| Resolution |
80x160 dots |
| Working Voltage |
2.8V |
| Operating Temperature |
-20°C to +70°C |
| Storage Temperature |
-30°C to +80°C |
| FPC Connector |
13pin, soldering type |
| Driver IC |
ST7735S |
| Interface |
4 SPI |
| Backlight Type |
1-LED, White |
| Brightness |
350 cd/m² |
| Outline Dimension |
13.5(W) × 27.95(H) × 1.46(T) mm |
| Active Area |
10.8(W) × 21.7(H) mm |
Primary Applications
Wearable Smart Devices: Smart bracelets, watches, fitness trackers
Embedded & Maker Projects: Arduino, ESP32, robotics
Industrial Equipment: Portable detectors, meters, handheld instruments
Home Automation: Smart locks, thermostat displays, control panels
Security Systems: Camera settings, alarm status displays

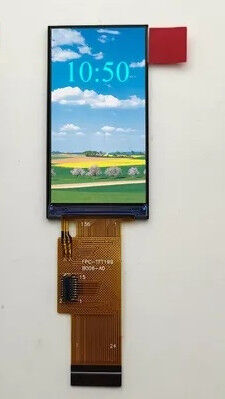

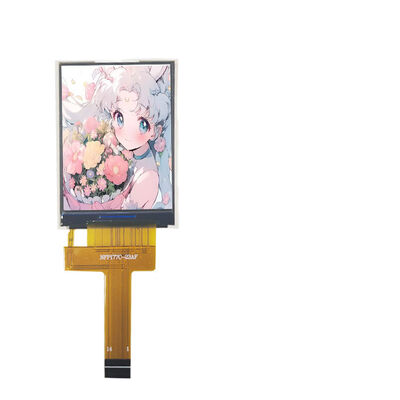

Product Images
Packaging & Shipping
Packaging: Carton boxes, cupboard, EPE, blister tray. Custom packaging available based on product size and customer requirements.
Shipping: Express delivery via DHL, FedEx, EMS, UPS, air shipping, sea shipping. Multiple shipping methods available.
Payment Methods
Frequently Asked Questions
Customization & Specifications
Q: Can you customize the LCD display size and specifications?
A: Yes, we offer full customization services. Please provide your specifications, drawings, or samples for evaluation.
Technical Modifications
Q: Can you change the LCD type from HTN to STN?
A: Absolutely. We can modify the display type and other technical parameters according to your requirements.
Samples & Lead Times
Q: Can you provide samples for evaluation?
A: Yes, sample orders are available. Standard products ship within 1 day, while custom orders typically take 15-30 days.
Our Services
- Free repair within one year after shipment
- Replacement within 30 days for product issues
- Custom logo printing and model number application
- Professional technical support and after-sales service
- Comprehensive quality control and testing before shipment
- 24-hour customer response time
Industry Applications
Household Appliances: Refrigerators, air conditioners, microwaves, cookers
Communication Equipment: Telephones, interphones, fax machines
Automotive Electronics: Entertainment systems, navigators, cameras
Instruments: Water meters, electric meters, multimeters, scales
Fitness Equipment: Treadmills, fitness bikes, pedometers
Financial Equipment: POS machines, banknote counters, tax control systems
Consumer Electronics: MP3 players, electronic dictionaries, calculators
Product Demonstration
