Home /Products/LCD TFT Screen/3.97 Inch IPS LCD TFT Screen 480x800 Dots GC9503 24PIN FPC With MIPI Interface

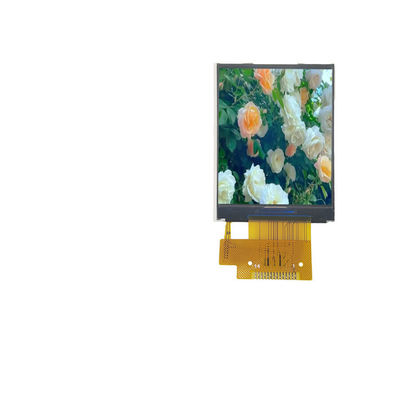

3.97 Inch IPS LCD TFT Screen 480x800 Dots GC9503 24PIN FPC With MIPI Interface

1000
MOQ
DISCUSSABLE
Price
3.97 Inch IPS LCD TFT Screen 480x800 Dots GC9503 24PIN FPC With MIPI Interface
Features Gallery Product Description Chat Now
Features
Specifications
Refresh Rate: 60 Hz
Backlight Type: LED
Interface: MIPI
Color Gamut: 72% NTSC
Luminance: 300 Cd/m2
Resolution: 480x800 Dots
Name: TFT LCD Display
Highlight:

IPS LCD TFT Screen

,

3.97 Inch LCD TFT Screen

,

IPS TFT Screen Display
Basic Infomation
Place of Origin: China
Brand Name: BBI
Certification: ISO9001 RoHS
Model Number: BBI-001
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 3-4WEEKS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Product Description
3.97 Inch TFT LCD IPS Screen 480x800 Dots GC9503 24PIN FPC with MIPI Interface
Product Description

Key Features of a 3.97-Inch TFT Screen:


  1. Screen Size: The diagonal size of the display is 3.97 inches, which provides a bit more room than smaller 3.5-inch displays. The extra screen space allows for more detailed content, such as larger graphics, text, or more complex graphical user interfaces (GUIs).

  2. Resolution: A typical 3.97-inch TFT display has a resolution of 480x800 pixels. This resolution provides sharp and clear visuals, making it suitable for displaying text, images, and animations.

  3. Color Depth: Like most TFT displays, a 3.97-inch TFT screen typically supports 16.7 million colors (24-bit color depth), ensuring rich and vibrant color reproduction. This makes the display well-suited for applications requiring bright, colorful graphics.

  4. Backlighting: Most 3.97-inch TFT screens use LED backlighting, which ensures brightness and visibility, even in low-light conditions.



Basic Parameters:


NO. ITEM SPECIFICATIONS
1 Product Name 3.97 Inch TFT LCD
2 LCD Type Normally Black
3 Viewing Angle Free
4 Resolution
480x800 dots
5 Operating Temperature -20~+70℃
6 Storage Temperature -30~+80℃
7 FPC Connector 24PIN, ZIF type
8 FPC PITCH 0.5 mm
9 Driver IC(COG) GC9503
10 Interface MIPI
11 Backlight Type

8-LED, White, 160mA
12 Luminance 300 cd/m2
13 Outline Dimension

57.14(H)* 96.85(V)* 2.20(D) mm
14 Active Area
51.84(H)* 86.35(V) mm


3.97 Inch IPS LCD TFT Screen 480x800 Dots GC9503 24PIN FPC With MIPI Interface 0

3.97 Inch IPS LCD TFT Screen 480x800 Dots GC9503 24PIN FPC With MIPI Interface 1

3.97 Inch IPS LCD TFT Screen 480x800 Dots GC9503 24PIN FPC With MIPI Interface 2



3.97 Inch IPS LCD TFT Screen 480x800 Dots GC9503 24PIN FPC With MIPI Interface 3

Packaging & Shipping:



Packaging: Carton boxess, Cupboard , EPE, Blister Tray, About the package way, it is up to the size of products,

according to customer request and demand. Different countries have not same requirement..

3.97 Inch IPS LCD TFT Screen 480x800 Dots GC9503 24PIN FPC With MIPI Interface 4

Shipping: Express way as DHL,Fedex,EMS,UPS,air shipping,sea shipping,Any shipping method you prefer.

3.97 Inch IPS LCD TFT Screen 480x800 Dots GC9503 24PIN FPC With MIPI Interface 5

Payment Method:

3.97 Inch IPS LCD TFT Screen 480x800 Dots GC9503 24PIN FPC With MIPI Interface 6



Production Line:

☆ Clean Room class 10k@0.8um, Pressurec 0.8kgf

☆ Antistatic floor, resistance : 1x10 ohm to 1x10 ohm

☆ COG production lines: 4 .

☆ Backlight production lines: 2 .

☆ Existing machine capacity will be 1KK per month.

3.97 Inch IPS LCD TFT Screen 480x800 Dots GC9503 24PIN FPC With MIPI Interface 7

3.97 Inch IPS LCD TFT Screen 480x800 Dots GC9503 24PIN FPC With MIPI Interface 8

3.97 Inch IPS LCD TFT Screen 480x800 Dots GC9503 24PIN FPC With MIPI Interface 9

***In compliance with ISO9001: 2008 Quality Management
***One year's guarantee for unartificial damage

1: Small lcd display screen
2: Reasonable price
3: Large capacity
