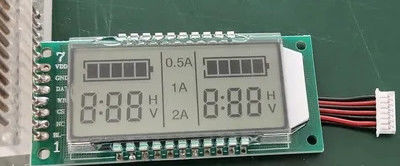

Seven Segment LCD Module TN 6 Digit LCD Display Blue Backlight

What is a TN Segmented LCD?

• A segmented LCD uses predefined shapes or "segments" that can be turned on or off to display static content (e.g., a digital clock showing "8:88").
• Twisted Nematic (TN) is a liquid crystal technology where the liquid crystals are twisted 90° between two layers of glass. Applying voltage causes the crystals to untwist, controlling the amount of light passing through.

Key Features of TN Segmented LCD

1. Simple Operation:

   • Segments are individually controlled, making the design straightforward.
   • Typically uses a passive matrix or simple drive scheme.

2. Low Power Consumption:

   • Requires minimal power, ideal for battery-operated devices.

3. Affordable Manufacturing:

   • Simplistic design makes it economical to produce, especially for high-volume applications.

4. Basic Performance:

   • Optimized for static or slow-changing displays rather than dynamic or high-resolution content.

5. Limited Viewing Angles:

   • Best viewed directly from the front; visibility diminishes at oblique angles.

Detailed Parameters:
