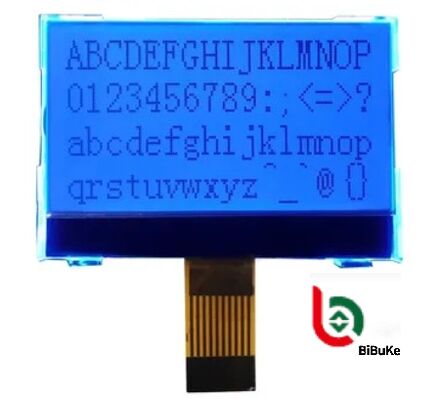

2.15 Inch 128x64 LCD Display COG Dot Matrix FSTN ST7567 10PIN Socket Type
Product Overview
This monochrome COG graphic LCD display features a 128x64 resolution with FSTN technology and ST7567 driver IC, designed for embedded applications requiring flexible graphics and text display capabilities.
Key Features
- High Resolution: 128x64 pixel grid enables display of graphics, text, and simple animations
- COG Technology: Chip-on-Glass construction provides thinner profile and cost-effective design
- Graphic LCD: Supports custom images and text positioning for versatile design applications
- SPI Interface: Easy integration with microcontrollers including Arduino and Raspberry Pi
- Low Power Consumption: Ideal for battery-operated devices with efficient power requirements
Technical Specifications
| Parameter |
Specification |
| Product Type |
Monochrome COG Graphic LCD Display |
| Model Brand |
Bibuke |
| LCD Type |
FSTN (Gray), Positive |
| Polarizer Type |
Transmissive |
| Viewing Angle |
6 O'clock |
| Resolution |
128x64 dots |
| Drive Method |
1/64 Duty, 1/7 Bias |
| Working Voltage |
2.8V |
| Operating Temperature |
-10°C to +60°C |
| Storage Temperature |
-20°C to +60°C |
| FPC Connector |
10PIN, ZIF type |
| FPC Pitch |
1.0 mm |
| Driver IC |
ST7567 |
| Interface |
SPI |
| Backlight Type |
LEDs, White or Blue |
| Outline Dimension |
58.5(W) × 39.7(H) × 5.2(T) mm |
| View Area |
53.6(W) × 28.6(H) mm |
| Active Area |
48.61(W) × 24.93(H) mm |
