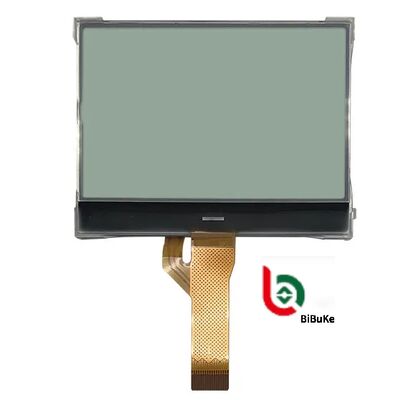

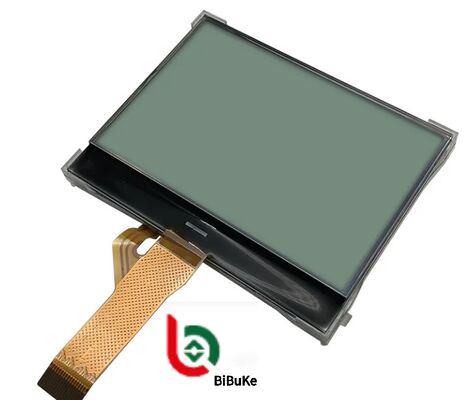

Monochrome 128x64 Graphic LCD Display
High-performance monochrome graphic LCD display module with 128x64 resolution, designed for industrial and commercial applications requiring clear, reliable visual interfaces.
Technical Specifications
| Product |
Monochrome Graphic LCD Display Module 128x64 |
Resolution |
128x64 Dots |
| View Direction |
12 O'clock |
LCD Type |
FSTN, Positive |
| Polarizer Type |
Transmissive |
Module Size |
49.0L×38.0W×2.85H Mm |
| Viewing Area |
46×27 Mm |
Driver IC |
ST7565R |
| Pin Number |
34 Pins |
Interfaces |
8080 MCU Interface OR 6800 MCU Interface OR 4-Line SPI Interface |
| Operating Temp |
-20°C To +70°C |
Supply Voltage |
3.3V (Typical Value) |
| Life Time |
40,000 Hours |
Compliance |
REACH & RoHS Compliant |
This monochrome graphic LCD display module features ST7565R driver IC and FSTN positive COG display technology, providing exceptional clarity and reliability for various display applications.
Product Features
High Resolution: 128×64 dot matrix provides clear, detailed display of graphics, text, and curves for diverse visual requirements.
Advanced Driver Chip: ST7565R ensures stable operation with support for multiple interface methods including 8080 MCU, 6800 MCU, and 4-Line SPI.
Superior Display Quality: FSTN (Film compensated Super Twisted Nematic) technology delivers excellent contrast and wide viewing angles with positive display (black on white background).
Compact COG Packaging: Chip On Glass design reduces module size, enhances integration, and improves reliability and anti-interference capabilities.
Optimal Performance: 3.3V typical operating voltage with low power consumption and wide operating temperature range (-20°C to +70°C).
Application Areas
Industrial Automation: Display process parameters, equipment status, and alarm information for human-machine interface and monitoring.
Instrumentation: Temperature, pressure, and flow meters for displaying measurement data, parameters, and operation menus.
Communication Equipment: Base stations, routers, and switches for status monitoring, alarm display, and configuration parameters.
Medical Equipment: Monitors, ECG machines, and ultrasound systems for patient data, diagnostic results, and operation interfaces.
Transportation: Automotive dashboards, marine controls, and aerospace instruments for vehicle status, navigation, and flight parameters.
Frequently Asked Questions
I want the LCD display 8 digits and the outline size is 65x30x2.8mm. Is this possible?
Yes, we can accommodate your requirements. Please provide your specifications or drawing. If unavailable, send samples and we'll recommend suitable standard products or customize based on your needs.
This LCD is what we want, but the size is too large. Do you have smaller sizes? The display content also needs minor changes.
For segment type LCD modules requiring size or content modifications, we create new LCD glass modules with custom tooling.
This LCD display is HTN type, but I want STN type. Can you make this change?
Absolutely. We can modify the display type according to your specifications.
Can you customize a new LCD module for our application?
Yes, we specialize in custom LCD modules. Please provide your drawing or specifications including outline size, display information, glass thickness, polarizer type, display type, connector mode, temperature ranges, supply voltage, viewing direction, and drive conditions.
What is the lead time for tooling?
Typically 15-25 days after drawing confirmation and tooling payment. We'll provide exact timelines upon drawing approval.
Can you send samples for evaluation?
Yes, sample orders are available for your testing and evaluation.
What is the production lead time?
Standard products in stock ship within one day after payment. Mass production of custom orders typically takes 15-30 days. We'll notify you if we can complete orders sooner.
