Home /Products/7 Segment LCD Display/Custom 7 Segment LCD Display SMMC13264-AI-00-SYA 6.00 O' CLOCK STN-Y/G Positive Reflective

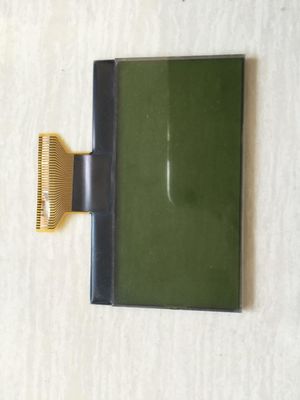

Custom 7 Segment LCD Display SMMC13264-AI-00-SYA 6.00 O' CLOCK STN-Y/G Positive Reflective

1000
MOQ
0.1-5USD
Price
Custom 7 Segment LCD Display SMMC13264-AI-00-SYA 6.00 O' CLOCK STN-Y/G Positive Reflective
Features Gallery Product Description Request A Quote
Features
Specifications
Name: 7 Segment LCD Display
Drive Voltage: 3.6V
Customized: Customized
Polarizer Type: Transmissive
Backligaht: White Backlight
Transport Package: Carton/Pallet
Operating Temp: -10ºC+60ºC
Display Mode: Negative
Bias: 1/4
Highlight:

Custom 7 Segment LCD Display

,

7 Segment LCD Display SMMC13264-AI-00-SYA

,

Positive Reflective LCD Display
Basic Infomation
Place of Origin: China
Brand Name: BBI
Certification: ISO9001,RoHS,CE,REACH,SGS
Document: SMMC13264-AI-00-SYA-SC-B 12...01.pdf
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 20-30DAYS
Payment Terms: T/T D/P Paypal
Supply Ability: 5000000/months
Product Description

7 Segment Lcd Display SMMC13264-AI-00-SYA 6.00 O’ CLOCK STN-Y/G POSITIVE REFLECTIVE



General Specification:



PART NUMBER



SMMC13264-AI-00-SYA



DISPLAY FORMAT



132*64DOTS



SUPPLY VOLTAGE FOR LOGIC



3.0V



DISPLAY TYPE



STN-Y/G, POSITIVE ,REFLECTIVE



VIEWING DIRECTION



6.00 O’ CLOCK



LCD DRIVING METHOD



1/65 DUTY, 1/9 BIAS, 9.2V (J6392)the last sample:2017-5-23



CONNECTION



COG+FPC



LCD DRIVER IC



ST7565R



INSPECTION STANDARD OF LCD



A STANDARD



INSPECTION STANDARD OF RoHS



RoHS COMPLIANCE



ABSOLUTE MAXIMUM RATINGS





Item



Symbol



MIN



Max



Unit





Supply   Voltage



VDD



-0.3



3.6



V



VOUT



-0.3



13.5



V



Operating temperature



Topr



-20



70

℃



Storage temperature



Tstr



-30



80

℃







ELECTRICAL CHARACTERISTICS OF LCM



(Unless specified, the ambient temperature Ta=25℃)





Item



Symbol



Condition



Min.



Type



Max.



Unit

Supply Voltage

Logic

VDD

VDD-VSS

2.9

3.0

3.1

V

LCD

VLCD

Ta=25℃

9.0

9.2

9.4

V

Input Voltage

H level

VIH



-

0.8*VDD

-

VDD



V

L level

VIL

VSS

-

0.2*VDD

Current    Consumption

(LCD Drive )



IDD





--





2.0



mA



 Custom 7 Segment LCD Display SMMC13264-AI-00-SYA 6.00 O' CLOCK STN-Y/G Positive Reflective 0              Custom 7 Segment LCD Display SMMC13264-AI-00-SYA 6.00 O' CLOCK STN-Y/G Positive Reflective 1
