Original LCD Display Module 132*64 dots FSTN Positive / Transflective

1000

MOQ

0.1-5USD

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Name: LCD Display Module

Quality: New Original

Accessory: Micro USB Cable

Buttons: Play/Pause, Volume,previous,next

Contrast Ratio: 450:1

Appearance Size: 67.85 (width) * 27.5 (high) Mm

Module Size: 54.5(H)x83.0(V)x4.0(Max) Mm

Weight: TBD G

Viewing: All

Highlight:

Original LCD Display Module

LCD Display Module 132*64

Original LCD Screen Module

Basic Infomation

Place of Origin: China

Brand Name: BBI

Certification: ISO9001,RoHS,CE,REACH,SGS

Document: SMMC13264-AH-00-SPI-SC-B 12...wo.pdf

Payment & Shipping Terms

Packaging Details: CARTON

Delivery Time: 20-30DAYS

Payment Terms: T/T D/P Paypal

Supply Ability: 5000000/months

Gallery

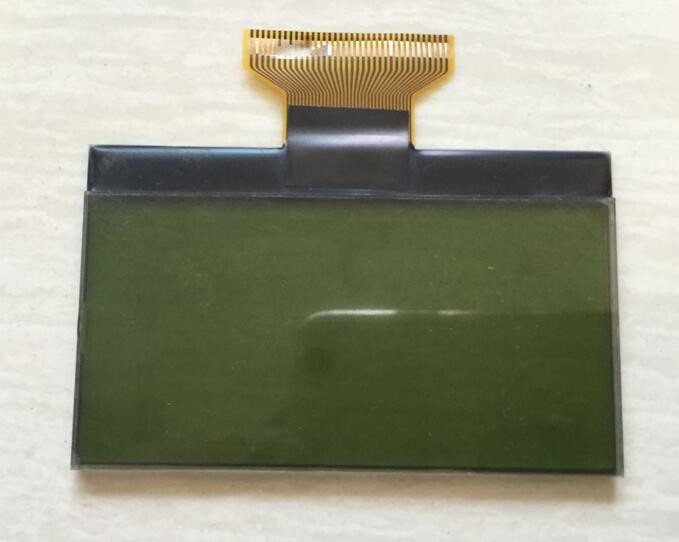

Original LCD Display Module 132*64 dots FSTN Positive / Transflective

Product Description

LCD Display Module 132*64 dots Fstn, Positive ,Transflective

General Specification:

Display Format

132*64DOTS

Power Supply

3.0V

Display Type

FSTN, POSITIVE ,TRANSFLECTIVE

Viewing Direction

6.00 O’clock

LCD Driving Method

1/65 Duty, 1/9 Bias, 9.2V

Driver IC

ST7565R

Input Data

Parallel 6800 Series MPU Interface / Parallel 8080 Series MPU Interface

/ Serial 4-Line SPI Interface

Module Size(W*H*T)

73.4*37.8/44.8 *2.85(MAX)mm

Viewing Area (W*H)

67.50*34.40mm

Active Area (W*H)

58.04*30.68mm

Dot Size (W*H)

0.40*0.44 mm

Dot Pitch (W*H)

0.44*0.48 mm

ABSOLUTE MAXIMUM RATINGS

Item

Symbol

MIN

Max

Unit

Supply Voltage

VDD

-0.3

3.6

VLCD

-0.3

13.5

Operating temperature

Topr

-20

℃

Storage temperature

Tstr

-30

℃

product drawing

Packaging & Shipping:

Packaging: Carton boxess, Cupboard , EPE, Blister Tray, About the package way, it is up to the size of products,

according to customer request and demand. Different countries have not same requirement..

Shipping: Express way as DHL,Fedex,EMS,UPS,air shipping,sea shipping,Any shipping method you prefer.
