32PIN COG LCD Display with ST7567 Controller and 3.3V Operating Voltage for Industrial Applications

1000
MOQ
0.7-7USD
Price
32PIN COG LCD Display with ST7567 Controller and 3.3V Operating Voltage for Industrial Applications
Features Gallery Product Description Chat Now
Features
Specifications
Lcd Type: FSTN, Positive
Name: COG LCD Display
Pin Count: 32PIN
Backlight Type: LED
Controller: ST7567
Backlight: Without
Display Size: Varies Depending On Model
Highlight:

32PIN COG LCD Display

,

COG LCD Display 3.3V
Basic Infomation
Place of Origin: China
Brand Name: BBI
Certification: ISO9001 RoHS
Document: SMMC12832-AH-00-VTNH-WX-C M...1).pdf
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 3-4WEEKS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Product Description
32PIN COG LCD Display 3.3V VTN NEGATIVE 1/32DUTY 1/6BIAS 9.5V ST7567
This 32-pin Chip-on-Glass LCD display module operates at 3.3V with VTN negative mode, 1/32 duty cycle, and 1/6 bias ratio. The ST7567 driver chip supports stable operation with a 9.5V driving voltage.
Absolute Maximum Ratings
Item Symbol MIN Max Unit
Supply Voltage VDD -0.3 4.0 V
VLCD VLCD -0.3 19.8 V
Input Voltage Vin -0.4 VDD+0.5 V
Absolute maximum forward current (Backlight) Ifm -- 60 mA
Reverse voltage (Backlight) Vr -- 3.1 V
Operating temperature Topr -20 70 ℃
Storage temperature Tstr -30 80 ℃
Product Introduction
  • Type and Packaging: Chip-on-Glass (COG) technology with direct chip bonding to glass substrate for compact size and enhanced reliability
  • Power Supply Voltage: 3.3V low-voltage operation ideal for power-sensitive applications
  • Display Characteristics: VTN negative mode with 1/32 duty cycle and 1/6 bias ratio, supported by 9.5V driving voltage for optimal contrast and stability
  • Resolution and Size: Typically 128×32 or 132×32 resolution with dimensions approximately 34.5mm×15mm×1.7mm and viewing area of 31.9mm×9.5mm
  • Driver Chip: ST7567 controller from STMicroelectronics with integrated LCD driver, supporting 8-bit parallel and SPI serial interfaces, featuring 1KB display RAM
Product Applications
  • Portable Devices: Handheld instruments, smart wearables including multimeters, thermometers, and fitness trackers
  • Industrial Control Systems: Instrumentation displays for operating parameters and status indicators in industrial environments
  • Consumer Electronics: Electronic price tags, home appliance control panels, and status displays
  • Medical Equipment: Vital sign monitoring devices displaying heart rate, blood oxygen saturation, and other patient data

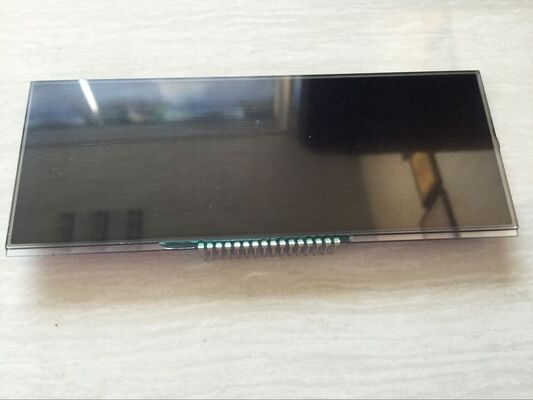

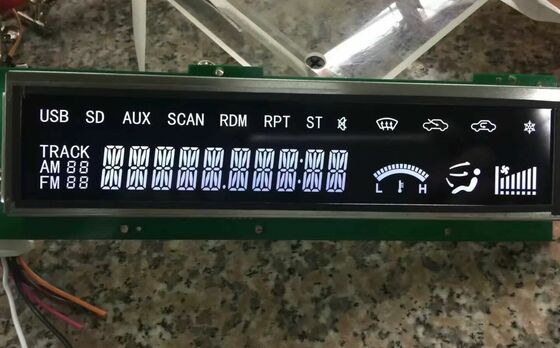

32PIN COG LCD Display with ST7567 Controller and 3.3V Operating Voltage for Industrial Applications 0 32PIN COG LCD Display with ST7567 Controller and 3.3V Operating Voltage for Industrial Applications 1
Packaging & Shipping
Packaging: Carton boxes, cupboard, EPE, blister tray. Packaging methods customized based on product size and customer requirements.
32PIN COG LCD Display with ST7567 Controller and 3.3V Operating Voltage for Industrial Applications 2
Shipping: Express services including DHL, FedEx, EMS, UPS, air shipping, and sea shipping available.
32PIN COG LCD Display with ST7567 Controller and 3.3V Operating Voltage for Industrial Applications 3
Payment Method
32PIN COG LCD Display with ST7567 Controller and 3.3V Operating Voltage for Industrial Applications 4
Frequently Asked Questions
  • Can you provide LCD displays with specific dimensions and digit counts? Yes, please provide specifications or drawings. We can recommend standard products or customize based on your requirements.
  • Can you modify existing LCD display sizes and content? Yes, segment type LCD modules can be customized with new tooling for modified outline sizes and display content.
  • Can you change from HTN to STN type displays? Yes, we can modify display types according to your specifications.
  • Do you offer custom LCD module manufacturing? Yes, please provide drawings or specifications including outline size, display information, glass thickness, polarizer, connector mode, and operating parameters.
  • What is the tooling lead time? Typically 15-25 days after drawing confirmation and tooling payment.
  • Do you provide samples for evaluation? Yes, sample orders are available.
  • What is the production lead time? Standard products ship within 1 day; custom production takes 15-30 days.
Our Services
  • Free repair within one year after shipment
  • Replacement within 30 days for product issues
  • Custom logo printing and model number application
  • Competitive shipping rates through established carrier partnerships
  • Professional technical support and responsive after-sales service
  • Comprehensive quality control and testing before shipment
  • 24-hour response time for customer inquiries and support
  • Full customization capabilities for all types of LCD displays
Existing COB LCD Modules
We offer a comprehensive range of COB LCD modules with various specifications including character displays and graphic displays. Please contact us for detailed product catalogs and specifications.
