Features

Specifications

Screen Type: Graphic

Display Size: Customized

Viewing Angle: 12 O' Clock

Drive Method: 1/65duty 1/9 Bias

Rohs Compliant: Yes

Display Mode: Postive

Polarizer Type: Transflective

Displaytype: COG (Chip On Glass) LCD

Highlight:

128x64 Dot Matrix COG LCD Display

Transflective Polarizer Graphic STN LCD

12 O'Clock Viewing Angle FSTN LCD Module

Basic Infomation

Place of Origin: China

Brand Name: BBI

Certification: ISO9001 RoHS

Document: Product Brochure PDF

Payment & Shipping Terms

Packaging Details: CARTON

Delivery Time: 3-4WEEKS

Payment Terms: T/T

Supply Ability: 100000/MONTH

Gallery

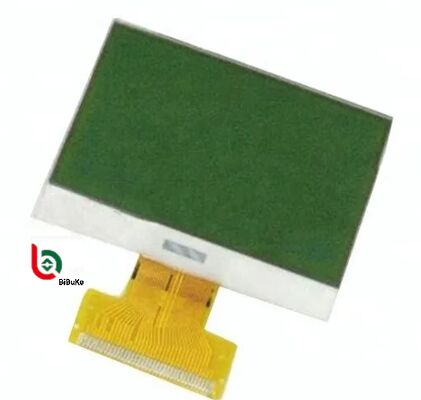

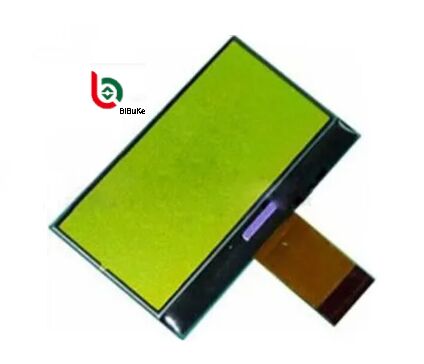

128x64 Dot Matrix COG LCD Display with Transflective Polarizer and 12 O'Clock Viewing Angle for Industrial Applications

Product Description

128x64 Dots STN COG FSTN Graphic STN LCD Display

High-resolution 128x64 dot matrix graphic LCD display module featuring COG packaging and FSTN liquid crystal technology for superior performance in industrial applications.

Technical Specifications

Type	Graphic
Display Size	Custom
LCD Type	FSTN
Viewing Angle	12 o'clock
Display Mode	Positive
Polarizer Mode	Transflective
Drive Method	1/65 duty, 1/9 bias
Operating Voltage	4.5V
Operating Temperature	-10°C to +60°C
Storage Temperature	-20°C to +70°C

Product Features

COG Packaging: Chip-on-Glass technology reduces module frame size, improves integration, and enables thinner product designs without additional PCB board space
FSTN Technology: Fringe Stacked Transflective Nematic liquid crystal with compensation film eliminates chromatic dispersion for high-contrast black-and-white display and wider viewing angles
High Resolution: 128x64 dot matrix capable of displaying characters, numbers, and simple graphics for text information, charts, and menus
Flexible Interface: High-speed 8-bit parallel data bus compatible with 80/68 series and SPI serial interface options for easy microcontroller integration
Low Power Consumption: 3.3V operating voltage with minimal power consumption, ideal for battery-powered devices
Wide Temperature Range: Operates from -20°C to +70°C, suitable for various environmental conditions

Applications

Industrial Control: PLC systems, HMI interfaces, temperature controllers for equipment status and parameter display
Instrumentation: Multimeters, oscilloscopes, signal generators for measurement data and waveform display
Medical Equipment: Patient monitors, blood glucose meters, portable diagnostic devices for physiological parameter display
Smart Home: Thermostats, security control panels, smart meters for equipment status and operation menus
Commercial Equipment: Vending machines, ATMs, self-service terminals for user prompts and transaction information

Frequently Asked Questions

I want the LCD display 8 digits and the outline size is 65x30x2.8mm. Is this possible?

Yes, we can accommodate custom specifications. Please provide your detailed specification document or drawing. If unavailable, you can send samples and we'll recommend suitable options or customize according to your requirements.

This LCD meets our needs but the size is too large. Do you have smaller options with modified display content?

For segment type LCD modules requiring size or display content modifications, we create new LCD glass modules with custom tooling to meet your specific requirements.

This LCD display is HTN type, but I need STN type. Can you provide this?

Yes, we can modify the LCD type to STN according to your specifications.

Can you customize a new LCD module for my application?

Absolutely. Please provide your drawing specifications. If unavailable, share the outline size, display information (glass thickness, polarizer type, display type, connector mode, storage/operating temperature, supply voltage, viewing direction, drive conditions) and we'll create a custom solution.

What is the lead time for custom tooling?

Typically 15-25 days after drawing confirmation and tooling payment. We'll provide exact timelines upon drawing approval.

Can you provide samples for evaluation?

Yes, sample orders are available for quality verification.

What is the production lead time?

Standard products in stock ship within one day after payment. Mass production for custom orders typically takes 15-30 days, with earlier completion updates provided when possible.
