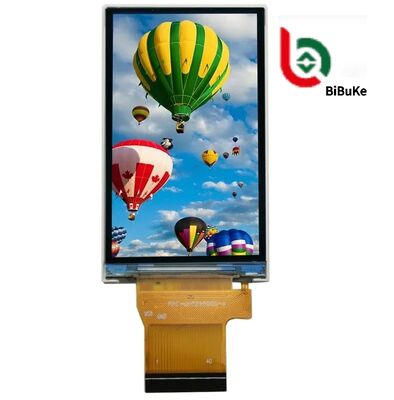

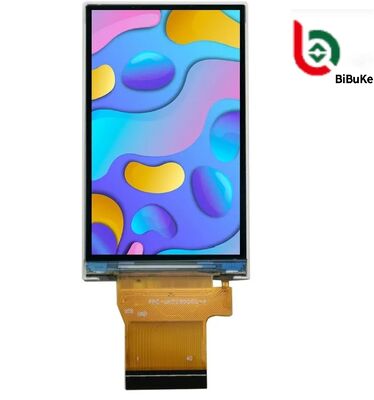

High Resolution 2.95 Inch Small LCD Display
This 2.95-inch, 480×854-pixel, dual-interface (RGB and MIPI) high-resolution small-sized LCD is a TFT display module that combines clarity with flexible adaptability. Featuring vertical screen high definition, interface compatibility, and industrial-grade reliability, it is suitable for embedded display requirements in various scenarios.
Core Product Features
- High Definition Display: 2.95-inch vertical screen with 480×854 resolution providing approximately 342 PPI clarity
- Wide Viewing Angle: IPS/ADS technology with 80°/80°/80°/80° viewing angles and minimal color distortion
- Bright & Vibrant: 200-450 cd/m² brightness, 1200:1 contrast ratio, supporting 262K/16.7M colors
- Dual Interface Support: Compatible with both RGB parallel and MIPI DSI serial interfaces
- Industrial Reliability: Operating temperature range of -20℃ to 70℃, storage range of -30℃ to 80℃
- Compact Design: Slim 2.15mm thickness for easy integration into narrow spaces
Interface Advantages
- RGB Interface: Ideal for rapid prototyping and low bandwidth applications
- MIPI Interface: High bandwidth, low power consumption, strong anti-interference for HD video and mobile devices
Technical Specifications
| Parameter |
Specification |
| Product Name |
2.95-inch Rectangular TFT LCD Display |
| Display Mode |
Normal black |
| Viewing Direction |
All |
| Resolution |
480x854 dots |
| Operating Temperature |
-20~+70℃ |
| Storage Temperature |
-30~+80℃ |
| FPC Connector |
40 pins, ZIF type |
| Contrast Ratio |
1200 |
| Brightness |
300 cd/m² |
| Interface |
MIPI/RGB |
| Backlight Type |
6 LEDs, White, parallel |
| Backlight Power |
20mA |
| Outline Dimension |
42.7(W)×74.7(H)×2.1(T) mm |
| Active Area |
36.72(W)×65.28(H) mm |
| Driver IC |
ST7701S |
| Touch Screen |
Without |
Typical Applications
- Industrial Instruments: Handheld oscilloscopes, multimeters, pressure/temperature detectors
- Smart Wearable Devices: Smart wristbands, health monitors, sports watches
- Vehicle Electronics: Tire pressure monitors, head-up displays, seat adjustment panels
- Consumer Electronics: Portable Bluetooth speakers, smart home control panels, small printer operation screens
- Medical Equipment: Portable blood glucose meters, pulse oximeters, ECG monitors
- Embedded Development: Microcontrollers, Raspberry Pi, IoT sensor nodes
Packaging & Shipping
Packaging options include carton boxes, cupboard, EPE, and blister trays, customized according to product size and customer requirements.
Shipping methods available: DHL, FedEx, EMS, UPS, air shipping, and sea shipping.
Payment Methods
Frequently Asked Questions
I want the LCD display 8 digits and the outline size is 65x30x2.8mm?
No problem. Please send us your specifications or drawing. If you don't have specifications, you can provide samples and we'll recommend suitable options or customize based on your requirements.
This LCD is just what we want, but it is big size, do you have any smaller size?
For segment type LCD modules requiring size or display content modifications, new tooling is required for custom LCD glass modules.
This LCD display is HTN type, but I want STN type, can you make?
Yes, we can modify the display type according to your requirements.
I want to customize a new LCD module. Can you do?
Yes, we can. Please provide your drawing or specifications including outline size, display information, glass thickness, polarizer, display type, connector mode, temperature ranges, supply voltage, viewing direction, and drive conditions.
What is the lead time for tooling?
Typically 15 to 25 days after drawing confirmation and tooling charge payment.
Can you send us samples for checking?
Yes, sample orders are available.
What is the lead time?
For standard products in stock: 1 day after payment. For mass production of custom products: approximately 15-30 days.
Our Services
- Free repair within one year after shipment
- Replacement within 30 days for product-related issues
- Custom logo printing and model number application
- Professional technical support and after-sales service
- Comprehensive quality inspection before shipment
- 24-hour customer support response time
- Full customization capabilities for all types of LCD displays
Product Applications
- Household Appliances: Refrigerators, air conditioners, water heaters, microwave ovens
- Communication Equipment: Telephones, interphones, fax machines, wireless wifi
- Automotive Electronics: On-board entertainment systems, navigation, cameras, anti-theft devices
- Instruments: Water meters, electric meters, pressure meters, analytical instruments
- Fitness Equipment: Treadmills, fitness bikes, pedometers, electronic scales
- Financial Equipment: Tax control cash machines, POS systems, banknote counting machines
- Consumer Electronics: MP3/MP4 players, electronic dictionaries, calculators, electronic clocks
