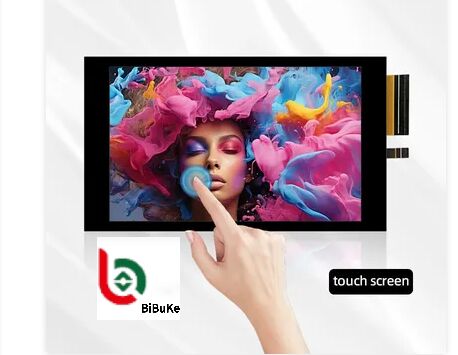

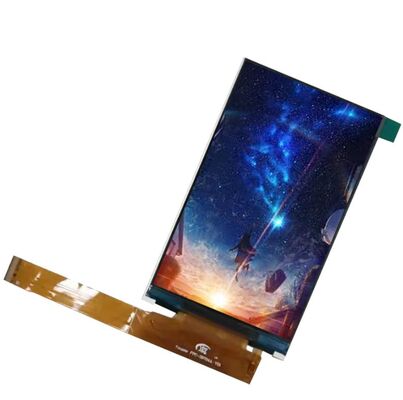

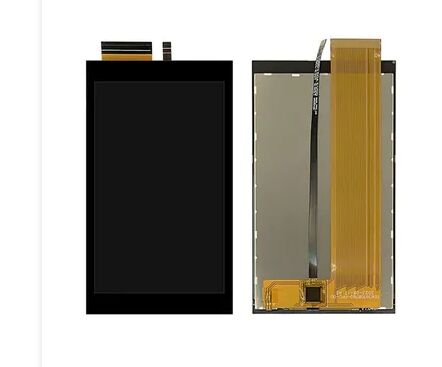

3.97-inch 480 * 800 MIPI Interface Small LCD Display
Product Specifications
| Size |
3.97 inch |
| Active Area |
51.84(H) * 86.4(V) mm |
| LCD Type |
Normally Black |
| Pixel Arrangement |
RGB Stripe |
| Number of Pixels |
480*3RGB(H)*800(V) |
| Lumens Degrees |
400cd/m² |
| Drive Element |
TFT Active Matrix |
| Operating Temperature |
-20ºC to +70ºC |
Key Features
- TFT display manufacturers
- TFT LCD panel
- Color TFT LCD
- High definition
- Low power consumption
- Sharp images
- Wide viewing angle
The 3.97-inch 480*800 MIPI interface LCD display is a compact display device with diverse applications across multiple industries.
Product Overview
Size and Resolution
Featuring a 3.97-inch diagonal screen with 480*800 resolution, this display delivers high pixel density for clear image quality with sharp text and icons.
Interface Type
The MIPI interface provides high-speed data transmission with minimal pins, offering low power consumption and excellent anti-interference capabilities for seamless integration with embedded processors and controllers.
Panel Type
Available in IPS and TN panel options. IPS panels offer wide 178° viewing angles with stable color and contrast, while TN panels provide narrower viewing angles suitable for specific applications.
Brightness and Contrast
Brightness ranges from 400cd/m² to 1100cd/m² with contrast ratios up to 900:1. High-brightness variants ensure excellent visibility in outdoor or high-ambient light conditions.
Driver IC
Compatible with common driver chips including ST7701S and ILI9806E, supporting various color depths including 16M/262k/65k for versatile display capabilities.
Operating Temperature
Industrial-grade temperature range of -20ºC to +70ºC operation and -30ºC to +80ºC storage, ensuring reliable performance across diverse environmental conditions.
Applications
- Industrial Control: Intelligent instruments, automated control systems for reliable parameter and status display
- Medical Equipment: Blood pressure monitors, ultrasound devices for clear data and image display
- Consumer Electronics: Mobile phones, digital cameras, game consoles, portable media players
- Smart Home: Control panels for appliance management and environmental monitoring
- Vehicle Electronics: HUD displays, vehicle status screens with high visibility in sunlight
- Robotics: Educational robots, nurse scanning PDAs for operation interfaces and information display
Frequently Asked Questions
I want the LCD display 8 digits and the outline size is 65x30x2.8mm. Is this possible?
Yes, we can accommodate your requirements. Please provide your specifications or drawing. If unavailable, we can recommend suitable standard products or customize based on your needs.
This LCD is what we want, but it's too large. Do you have smaller sizes? The display content also needs minor changes.
For segment type LCD modules requiring size or content modifications, we can create new LCD glass modules with custom tooling.
This LCD display is HTN type, but I want STN type. Can you make this change?
Yes, we can modify the display type according to your requirements.
Can you customize a new LCD module?
Yes, we offer full customization services. Please provide your drawing or specifications including outline size, display information, glass thickness, polarizer type, display type, connector mode, temperature ranges, supply voltage, viewing direction, and drive conditions.
What is the lead time for tooling?
Tooling typically requires 15-25 days after drawing confirmation and tooling charge payment. We will provide exact timelines upon drawing approval.
Can you send samples for evaluation?
Yes, sample orders are available for quality verification.
What is the production lead time?
Standard products in stock ship within one day after payment. Mass production for custom orders typically requires 15-30 days, with earlier completion communicated in advance.
