2.9 Inch Monochrome Graphic LCD Display STN Graphical LCD Display Module
Detail Information
| Certification: |
RoHS, ISO9001: 2015 |
| Product Name: |
Graphic LCD Display Modules |
| LCD Type: |
STN, Negative, Transmissive |
| Resolution: |
128*64 Pixels |
| Viewing Angle: |
6 O'clock |
| Working Voltage: |
5.0V |
| Backlight: |
White LEDs, 80mA |
| Driver IC: |
AIP31108, AIP31107 |
| Interface: |
8-Bit Parallel, MCU |
Product Description
| 1 |
Drive Method |
1/64 Duty, 1/9 Bias |
| 2 |
Working Voltage |
5.0V |
| 3 |
Operating Temperature |
-20~+70℃ |
| 4 |
Storage Temperature |
-30~+80℃ |
| 5 |
PINs |
20 numbers |
| 6 |
Pitch |
2.54 mm |
| 7 |
Connector |
COB+Zebra strips |
| 8 |
Driver IC |
AIP31108, AIP31107 |
| 9 |
Interface |
MCU 8-bit Parallel |
| 10 |
Backlight Type |
4pcs LEDs, White |
| 11 |
Power Consumption |
80mA |
| 12 |
Module Size |
93.0W)* 70.0(H)* 13.2(T) mm |
| 13 |
View Area |
70.7(W)* 38.8(H) mm |
| 14 |
Dot Size |
0.48(W)* 0.48(H) mm |
| 15 |
RoHS Compliant |
Yes |
List of Exiting COB LCD Modules:
|
Model
|
Content
CharsXLines
|
Module size
W x H(mm)
|
View area
W x H(mm)
|
Dot size
W x H(mm)
|
Character size W x H(mm)
|
Driving Method
|
Controller LSI or Equiv
|
IC
Package
|
STN-TYPE
|
FSTN-TYPE
|
|
8D-C0802A
|
8X2
|
84.0X44.0
|
63.0X25.0
|
1.15X1.36
|
6.07X11.56
|
1/16
|
S6A0069
|
COB
|
Y
|
Y
|
|
8D-C0802B
|
8X2
|
58.0X32.0
|
38.0X16.0
|
0.56X0.66
|
2.95X5.56
|
1/16
|
S6A0069
|
COB
|
Y
|
Y
|
|
8D-C1202A
|
12X2
|
55.7X32.0
|
46.7X17.5
|
0.45X0.6
|
2.65X5.5
|
1/16
|
S6A0069
|
COB
|
Y
|
Y
|
|
8D-C1601A
|
16X1
|
80.0X36.0
|
64.5X13.8
|
0.55X0.65
|
3.2X5.95
|
1/16
|
S6A0069
|
COB
|
Y
|
Y
|
|
8D-C1601B
|
16X1
|
122.0X33.0
|
99.0X13.0
|
0.92X1.1
|
4.84X8.06
|
1/16
|
S6A0069
|
COB
|
Y
|
Y
|
|
8D -C1601C
|
16X1
|
80.0X36.0
|
64.5X13.8
|
0.6X0.7
|
3.2X8.2
|
1/11
|
S6A0069
|
COB
|
Y
|
Y
|
|
8D -C1601D
|
16X1
|
85.0X28.0
|
65.0X16.0
|
0.55X0.75
|
3.07X6.56
|
1/16
|
S6A0069
|
COB
|
Y
|
Y
|
|
8D -C1601E
|
16X1
|
80.0X36.0
|
64.5X13.8
|
0.55X0.75
|
3.07X6.56
|
1/16
|
S6A0069
|
COB
|
Y
|
Y
|
|
8D -C1602A
|
16X2
|
80.0X36.0
|
64.5X13.8
|
0.55X0.5
|
2.95X4.35
|
1/16
|
S6A0069
|
COB
|
Y
|
Y
|
|
8D -C1602B
|
16X2
|
122.0X44.0
|
99.0X24.0
|
0.92X1.1
|
4.84X9.66
|
1/16
|
S6A0069
|
COB
|
Y
|
Y
|
|
8D -C1602C
|
16X2
|
80.0X36.0
|
64.5X15.5
|
0.55X0.66
|
2.96X5.56
|
1/16
|
S6A0069
|
COB
|
Y
|
Y
|
|
8D -C1602D
|
16X2
|
84.0X44.0
|
64.5X15.5
|
0.55X0.66
|
2.96X5.56
|
1/16
|
S6A0069
|
COB
|
Y
|
Y
|
|
8D -C1602E
|
16X2
|
85.0X36.0
|
64.5X15.5
|
0.56X0.66
|
2.96X5.56
|
1/16
|
S6A0069
|
COB
|
Y
|
Y
|
|
8D -C1602F
|
16X2
|
72.0X36.0
|
64.5X15.5
|
0.56X0.66
|
2.96X5.56
|
1/16
|
S6A0069
|
COB
|
Y
|
Y
|
|
8D -C1604A
|
16X4
|
87.0X60.0
|
62.0X25.6
|
0.55X0.55
|
2.95X4.75
|
1/16
|
S6A0069
|
COB
|
Y
|
Y
|
|
8D -C2001A
|
20X1
|
116.0X37.0
|
83.0X18.6
|
0.6X0.65
|
3.2X5.55
|
1/16
|
S6A0069
|
COB
|
Y
|
Y
|
|
8D -C2002A
|
20X2
|
98.0X60.0
|
83.0X18.6
|
0.6X0.65
|
3.2X5.55
|
1/16
|
S6A0069
|
COB
|
Y
|
Y
|
|
8D -C2002B
|
20X2
|
116.0X37.0
|
83.0X18.6
|
0.6X0.65
|
3.2X5.55
|
1/16
|
S6A0069
|
COB
|
Y
|
Y
|
|
8D -C200C
|
20X2
|
146.0X43.0
|
123.0X23.0
|
0.92X1.1
|
0.98X1.17
|
1/16
|
S6A0069
|
COB
|
Y
|
Y
|
List of Exiting COB LCD Modules:
|
Model
|
Content
(W X H)
|
Module size
W x H(mm)
|
View area
W x H(mm)
|
Dot size
W x H(mm)
|
Dot pitch
W x H(mm)
|
Driving Method
|
Controller LSI or Equiv
|
IC
Package
|
STN-TYPE
|
FSTN-TYPE
|
|

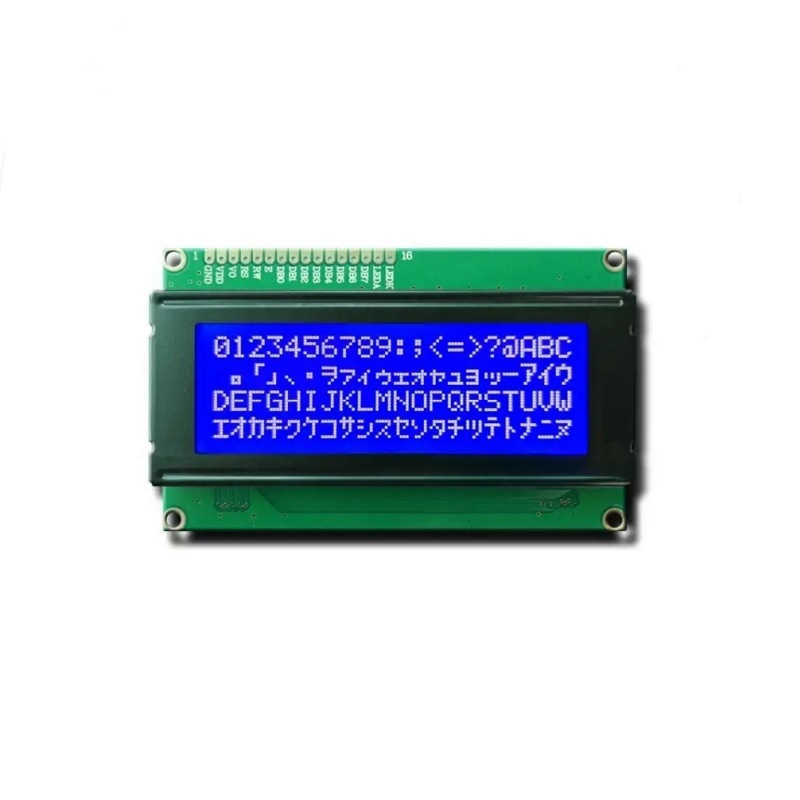

8D -C2004A
|
20X4
|
98.0X60.0
|
76.0X25.2
|
0.55X0.55
|
2.95X4.75
|
1/16
|
S6A0069
|
COB
|
Y
|
Y
|
|
8D -C2004B
|
20X4
|
77.0X47.0
|
60.0X22.0
|
0.42X0.46
|
2.3X4.03
|
1/16
|
S6A0070
|
COB
|
Y
|
Y
|
|
8D -C2004C
|
20X4
|
146.0X62.5
|
123.5X43.0
|
0.92X1.1
|
4.84X9.22
|
1/16
|
S6A0069
|
COB
|
Y
|
Y
|
|
8D -C2402A
|
24X2
|
118.0X36.0
|
93.5X16.0
|
0.6X0.65
|
3.2X5.55
|
1/16
|
S6A0069
|
COB
|
Y
|
Y
|
|
8D -C2402B
|
24X2
|
208.0X40.0
|
178.0X23.0
|
1.16X1.16
|
6.0X9.63
|
1/16
|
S6A0069
|
COB
|
Y
|
Y
|
|
8D -C4001A
|
40X1
|
182.0X33.5
|
154.4X16.5
|
0.6X0.75
|
3.2X6.35
|
1/16
|
S6A0069
|
COB
|
Y
|
Y
|
|
8D -C4002B
|
40X2
|
182.0X33.5
|
154.4X16.5
|
0.6X0.65
|
3.2X5.55
|
1/16
|
S6A0069
|
COB
|
Y
|
Y
|
|
8D C4004A
|
40X4
|
190.0X54.0
|
147.0X29.5
|
0.5X0.55
|
2.78X4.89
|
1/16
|
S6A0069
|
COB
|
Y
|
Y
|
|
8D -G12232A
|
122X32
|
84.0X44.0
|
60.0X18.5
|
0.4X0.4
|
0.44X0.44
|
1/32
|
SED1520
|
COB
|
Y
|
Y
|
|
8D -G12232B
|
122X32
|
80.0X36.0
|
55.0X18.5
|
0.36X0.41
|
0.4X0.45
|
1/32
|
SED1520
|
COB
|
Y
|
Y
|
|
8D -G12232C
|
122X32
|
98.0X60.0
|
76.0X25.2
|
0.53X0.61
|
0.57X0.65
|
1/32
|
SED1520
|
COB
|
Y
|
Y
|
|
8D -G12232D
|
122X32
|
80.2X47.4
|
76.0X25.2
|
0.53X0.61
|
0.57X0.65
|
1/32
|
SED1520
|
COB
|
Y
|
Y
|
|
8D -G12864A
|
128X64
|
78.0X70.0
|
62.0X44.0
|
0.39X0.55
|
0.44X0.6
|
1/64
|
S6B0108A
|
COB
|
Y
|
Y
|
|
8D -G12864B
|
128X64
|
105.0X60.5
|
72.0X40.0
|
0.48X0.48
|
0.52X0.52
|
1/64
|
S6B0108A
|
COB
|
Y
|
Y
|
|
8D -G12864C
|
128X64
|
93.0X70.0
|
72.0X40.0
|
0.48X0.48
|
0.52X0.52
|
1/64
|
S6B0108A
|
COB
|
Y
|
Y
|
|
8D -G12864D
|
128X64
|
113.0X65.0
|
72.0X40.0
|
0.48X0.48
|
0.52X0.52
|
1/64
|
S6B0108A
|
COB
|
Y
|
Y
|
|
8D -G12864E
|
128X64
|
93.0X70.0
|
72.0X40.0
|
0.48X0.48
|
0.52X0.52
|
1/64
|
ST7920
|
COB
|
Y
|
Y
|
|
8D -G19264A
|
192X64
|
130X65.0
|
104.0X39.0
|
0.46X0.46
|
0.51X0.51
|
1/64
|
S6B0108A
|
COB
|
Y
|
Y
|
|

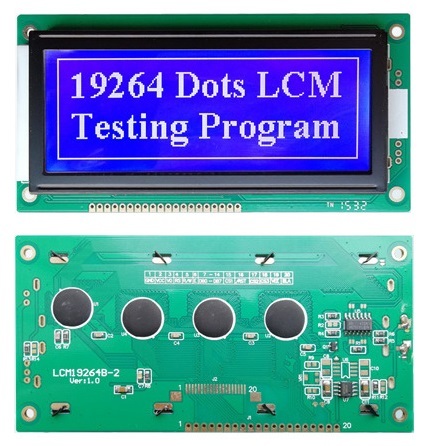

8D -G19264B
|
192X64
|
120X62.0
|
104.0X39.0
|
0.46X0.46
|
0.51X0.51
|
1/64
|
S6B0108A
|
COB
|
Y
|
Y
|
|
8D -G24064B
|
240X64
|
180.0X65.0
|
132.0X39.0
|
0.53X0.53
|
0.49X0.49
|
1/64
|
T6963C
|
QFP/COB
|
Y
|
Y
|
|
8D -G240128A
|
240X128
|
144X104
|
114X64
|
0.4X0.4
|
0.45X045
|
1/128
|
T6963C
|
QFP/COB
|
Y
|
Y
|
Packaging & Shipping:
Packaging: Carton boxess, Cupboard , EPE, Blister Tray, About the package way, it is up to the size of products,
according to customer request and demand. Different countries have not same requirement..
Shipping: Express way as DHL,Fedex,EMS,UPS,air shipping,sea shipping,Any shipping method you prefer.
Payment Method:
FAQ:
1. I want the LCD display 8 digits and the outline size is 65x30x2.8mm………?
Answer: No problem. Firstly, please kindly send us your specification/ drawing paper
If you have not the specification, you can also provide your samples; we will recommend the suitable one
if it is standard products. Or we can customize for you based on your own requirement.
2.This LCD is just what we want, but it is big size, do you have any smaller size? And the display content need to be changed a little.
Answer: For the segment type LCD module, if you need modify the outline size or display content,
a new LCD glass module is need. We have to open new tooling for you.
3. This LCD display is HTN type, but I want STN type,can you make?
Answer: That’s all right . we can change for you as per you request.
4. I want customize a new LCD module. Can you do?
Answer: Yes, we can. Please send your drawing paper. If you have not, please advise me the outline size
of the LCD display, display information( Glass thickness, Polarizer, Display Type, Connector mode,
Storage Temp. Operating Temp. Supply Voltage, Viewing direction, drive condition), we can customize for you.
5. What is leading time for tooling?
Answer: General speaking, it will cost 15 to 25 days after drawing paper confirmation and tooling charge payment,
we can report you the exact time when you confirm the drawing paper.
6. Can you send us samples for checking?
Answer: Yes,. Samples order is available.
7. What is the Leading Time?
Answer: If we have stock for the standard ones, the leading time is one day after payment. If it is the mass production for
special ones, the leading time is about 15-30 days. suppose we can finish earlier, we will report the information in advanced.
