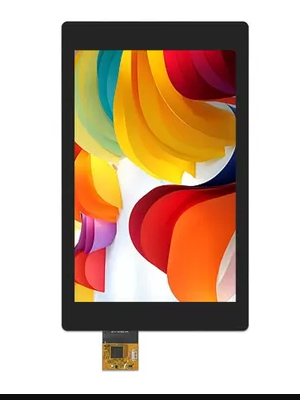

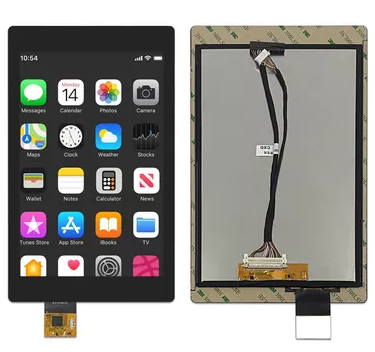

10.1-Inch 800*1280 High-Definition300-500nits IPS LCD TFT Display Module LVDS

1000
MOQ
negotiate
Price
10.1-Inch 800*1280 High-Definition300-500nits IPS LCD TFT Display Module LVDS
Features Gallery Product Description Request A Quote
Features
Specifications
Visual Angle: All O'clock
Blu Type: E-LED
Lcd Type: 10.1 Inch Tft
Logic Power Consumption: TBD
Interface: LVDS
LCD Type: Normally Black
Basic Infomation
Place of Origin: China
Brand Name: BBI
Certification: ISO9001 CE RoHS
Payment & Shipping Terms
Packaging Details: carton
Delivery Time: 3-4weeks
Payment Terms: T/T
Supply Ability: 100000/monthes
Product Description

10.1-Inch 800*1280 High-Definition300-500nits IPS LCD TFT Display Module LVDS


Detail Information

LCD Type: Normally Black
Operating Temperature: -20~70°
Lumens Degrees: 300-500Cd/M²
Pixel Arrangement: RGB Stripe
Drive Element: TFT Active Matrix
Number Of Pixels: 800*3RGB(H)X1280(V)
Active Area: 135.36(H) * 216.576(V)
Size: 10.1


Product Specifications

  • Drive element: TFT Active Matrix
  • Pixel arrangement: RGB Stripe
  • Number of pixels: 800*3RGB(H)X1280(V)
  • Active area: 135.36(H) * 216.576(V)
  • Size: 10.1 inches

Technical Parameters:

ITEM Sandard value Unit
size 10.1 Inch
LCD Type Normally Black --
Drive element TFT active matrix --
Number of pixels 800*3RGB(H)X1280(V) Dots
Pixel arrangement RGB stripe --
Pixel Pitch (W*H) 0.1692*0.1692 mm
Active area 135.36(H) * 216.576(V) mm
Mechanical OutlineSize(W*H*T) 156*264*4.85 mm
Viewing direction ALL O’CLOCK -
LCM Driver IC NV3051F-L -
LCM interface LVDS -
Lcm pin n count 30
Backlight leds 32 pcs
Backlight current 80 mA
Backligh voltage 22.4-25.6 V
Cover material Asahi Glass
Touch screen structure G+G
Touch Driver IC ILI2511 -
Touch Interface USB
Laminating process OCA
operating temperature 50
storage temperature 50
Lumens degrees 300-500 cd/㎡



Packaging & Shipping:



Packaging: Carton boxess, Cupboard , EPE, Blister Tray, About the package way, it is up to the size of products,

according to customer request and demand. Different countries have not same requirement..

10.1-Inch 800*1280 High-Definition300-500nits IPS LCD TFT Display Module LVDS 0

Shipping: Express way as DHL,Fedex,EMS,UPS,air shipping,sea shipping,Any shipping method you prefer.

 10.1-Inch 800*1280 High-Definition300-500nits IPS LCD TFT Display Module LVDS 1

Payment Method:

10.1-Inch 800*1280 High-Definition300-500nits IPS LCD TFT Display Module LVDS 2


FAQ:

1. I want the LCD display 8 digits and the outline size is 65x30x2.8mm………?

Answer: No problem. Firstly, please kindly send us your specification/ drawing paper

If you have not the specification, you can also provide your samples; we will recommend the suitable one

 if it is standard products. Or we can customize for you based on your own requirement.


2.This LCD  is just what we want, but it is big size, do you have any smaller size? And the display content need to be changed a little.
      Answer: For the segment type LCD module, if you need modify the outline size or display content,

a new LCD glass module is need. We have to open new tooling for you.


3. This LCD display is HTN type, but I want STN type,can you make?
      Answer: Thats all right .  we can change for you as per you request.


4. I want customize a new LCD module. Can you do?
      Answer: Yes, we can. Please send your drawing paper. If you have not, please advise me the outline size

of the LCD display, display information( Glass thickness, Polarizer, Display Type, Connector mode,
Storage Temp. Operating Temp.  Supply Voltage, Viewing direction, drive condition), we can customize for you.


5. What is leading time for tooling?
      Answer: General speaking, it will cost 15 to 25 days  after drawing paper confirmation and tooling charge payment,

we can report you the exact time when you confirm the drawing paper.


6. Can you send us samples for checking?
     Answer: Yes,. Samples order is available.


7. What is the Leading Time?
    Answer: If we have stock for the standard ones, the leading time is one day after payment. If it is the mass production for

special ones, the leading time is about 15-30 days. suppose we can finish earlier,  we will report the information in advanced.




Our Services:

1. Free repair within one year after the shipment of products from us.

2. Replacement within 30 days after the shipment of products from us due to products' problems.
3. We can print your logo and stick your model No.on the cameras.
4. We have long cooperation with many shipping companies and our export volume is large. The shipping companies

can offer us good discounts.
5. Professional technician supports. We have a good after-sales service team. They can solve your problems in time.
6.All goods will be inspected and tested by our engineers and QC/QA before packing and shipment.
7.Customers satisfactory is most important to us.If you have any problem or questions regarding our transaction.Please contact us by Email or online. It will be responded within 24 hours.

8.Products pictures only for your reference. please kindly refer to the specification. we can provide the products basic on the specification. or you can offer your own specification or drawing , we can customize all kinds of LCD displays for you. thanks for your kind support always.




Product application



Household appliances-refrigerators: air conditioners, fans, hot and cold air heaters, water heaters, electric blankets, heaters, air purifiers, washing machines, clothes dryers, vacuum cleaners, lampblack cleaners, microwave ovens, cookers, electric ovens, rice cookers, water drinkers, tea sets, etc.;



Communication :equipment-telephone, interphone, fax machine, wireless wifi, etc.



Automotive: electronics-on-board entertainment system, automobile fault detector, CarLog, vehicle navigator, car audio, reverse radar, reverse mirror, camera, anti-theft device, etc.



Instruments :water meters, electric meters, multimeter, electronic scales, pressure meters, temperature meters, flow meters, display instruments, electrical instruments, space instruments, measuring instruments, analytical instruments, electrochemical instruments, optical instruments, etc.;



Fitness: equipment-treadmill, waist machine, fitness bike, training device, pedometer, code table, beauty instrument, fat square measuring instrument, fitness instrument, electronic sphygmomanometer, weighing scale, etc.



 Financial :tax control-tax control cash machine, poss machine, usb-key cheque printer, banknote counting machine, tax control invoice machine, etc.



Consumer electronics:mp3,mp4,dvd, electronic dictionary, click reader, early teaching machine, learning machine, electronic organ, electronic clock, chronograph, calculator, etc.



high resolution, high definition, high brightness, cost-effective, energy conservation, high temperature, low temperature, Wide Temperature Range, Positive, Negative
