Home /Products/LCD TFT Screen/1.47 Inch LCD TFT Screen with 172x320 Resolution and 200 cd/m2 Luminance for Clear Display

1.47 Inch LCD TFT Screen with 172x320 Resolution and 200 cd/m2 Luminance for Clear Display

1000
MOQ
0.7-7USD
Price
1.47 Inch LCD TFT Screen with 172x320 Resolution and 200 cd/m2 Luminance for Clear Display
Features Gallery Product Description Chat Now
Features
Specifications
Backlight Technology: LED
Display Mode: Normal White
Lcd Type: IPS
Dimensions: 19.65(H)*36.76(V)*1.6(D)mm
Size: 1.47inches
Touch Screen: No
Interface: SPI/MCU / 80 - System 8 Bits Parallel Bus
Luminance: 200 Cd/m2
Highlight:

1.47 Inch LCD TFT Screen

,

172x320 Resolution TFT Display

,

200 cd/m2 Luminance TFT Screen
Basic Infomation
Place of Origin: China
Brand Name: BBI
Certification: ISO9001 RoHS
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 3-4WEEKS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Product Description
SPI 1.47" LCD TFT Screen Small Size 172x320 RGB Viewing Direction
Product Overview

1.47-inch TFT LCD display with 172×320 resolution, featuring superior display quality and wide viewing angle. Equipped with ST7789V3 controller and supports multiple interface options including SPI/MCU and 8-bit parallel bus.

Technical Specifications
Resolution 172 × 320 dots
Size 1.47 inch
Viewing Direction RGB
TFT Mode TFT, Transmissive
Outline Size 19.65(H) × 36.76(V) × 1.6(D) mm
Brightness 200 cd/m²
Display Mode Normally White, Transmissive
Interface Type SPI/MCU, 80-System 8-Bit Parallel Bus
Controller/Driver ST7789V3
Key Features
  • Compact 1.47-inch size with 172×320 resolution
  • IPS viewing angle technology for wide viewing angles
  • Supports multiple interfaces: 8080 8-bit, 3-wire, and 4-wire serial SPI

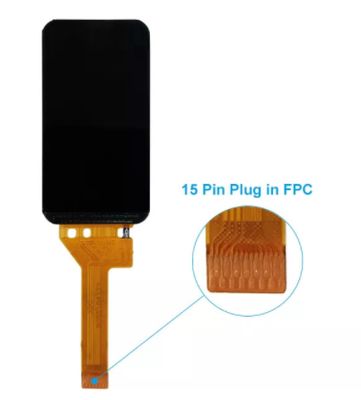

  • FPC with ZIF connector for easy assembly and removal
  • Landscape mode support
  • High reliability and stability for industrial applications

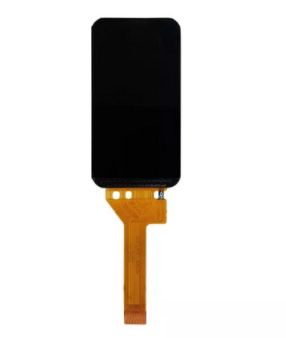

1.47 Inch LCD TFT Screen with 172x320 Resolution and 200 cd/m2 Luminance for Clear Display 0 1.47 Inch LCD TFT Screen with 172x320 Resolution and 200 cd/m2 Luminance for Clear Display 1
Applications
  • Smart wearable devices: Smart watches, fitness trackers
  • Handheld game consoles: Portable gaming devices
  • Industrial control: Equipment status displays, parameter settings
  • Smart home: Control panels, smart locks, cameras
  • Medical equipment: Portable monitors, diagnostic devices
  • IoT devices: Sensor data displays, control interfaces
  • Education: Teaching robots, electronic learning tools
  • Consumer electronics: Digital clocks, portable media players

1.47 Inch LCD TFT Screen with 172x320 Resolution and 200 cd/m2 Luminance for Clear Display 2
