Features

Specifications

Pins Number: 26PINS

Touch Screen: Yes

Display Mode: TFT/Transmissive

Screen Size: 1.54 Inches

Lcd Type: IPS

Brightness: 250 Cd/m²

Outline Size: 31.52 * 33.72 Mm * 1.3 T

Backlight Type: LED

Highlight:

26 Pins TFT LCD Screen

ST7796S Controller LCD Display Module

Smart Watch Application IPS TFT Display

Basic Infomation

Place of Origin: China

Brand Name: BBI

Certification: ISO9001 RoHS

Payment & Shipping Terms

Packaging Details: CARTON

Delivery Time: 3-4WEEKS

Payment Terms: T/T

Supply Ability: 100000/MONTH

Gallery

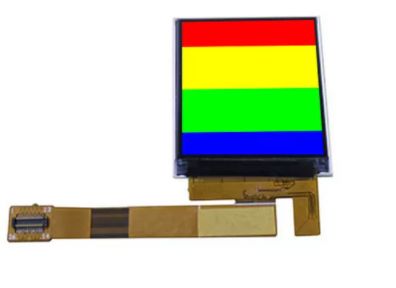

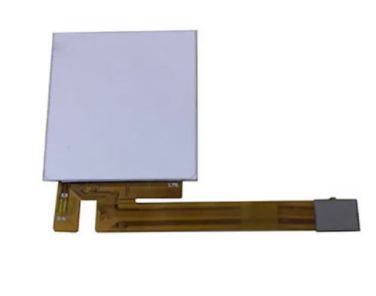

1.54 Inch TFT LCD Screen with 26 Pins and ST7796S Controller for Smart Watch Application

Product Description

1.54 Inch TFT LCD Screen Resolution 320 * 320 Touch Screen For Smart Watch

Product Specifications

Parameter	Value
Resolution	320 × 320
Size	1.54 Inch
Viewing Direction	IPS
TFT Mode	TFT, Transmissive
Outline Size	31.52 × 33.72 mm × 1.3 T
Brightness	250 Nits

Detailed Specifications

Item	Contents	Description
Product Name	Customized 1.54 Inch Square TFT LCD Display	320 × 320 LCD Module With SPI MCU Interface
Module Size	31.52 mm × 33.72 mm × 1.3 mm T
Resolution	320 × 320
Pixel Configuration	R.G.B. Vertical Stripe
View Angle	IPS
Interface Type	MIPI Interface
Pins Number	26 Pins
Controller / Driver	ST7796S

Basic Parameters

Size: Diagonal size is 1.54 inches with visible area approximately 27.74mm × 27.74mm
Resolution: 320×320 square pixel arrangement for clear display of icons and text
Interface: MIPI interface supports high-speed data transmission
Brightness: 200-300cd/m² suitable for both indoor and bright environments
Contrast: Ranges from 250:1 to 900:1 depending on model
Viewing angle: IPS full-view technology for clear visibility from different angles
Touchscreen: Projected capacitive touchscreen supporting multi-touch with sensitive operation

Performance Features

Clear Display: High pixel density ensures detailed text and image presentation
Color Reproduction: IPS technology delivers accurate, vivid and natural colors
Fast Response: Quick picture updates reduce ghosting for dynamic content
Sensitive Touch: High accuracy and responsiveness for smooth human-computer interaction

Application Scenarios

Ideal for smart wearable devices such as smart watches and bands, providing clear display of time, health data, and notifications while maintaining device portability and aesthetics.

1.54 Inch TFT LCD Screen with 26 Pins and ST7796S Controller for Smart Watch Application 4
