Features

Specifications

Dimensions: 42.72(H)* 60.26(V)* 2.40(D) Mm

Resolution: 240*320

Touch Screen: Customized

FPC Connect: 18PIN, Soldering Type

Backlight: White LED

Active Area: 36.72(H)* 48.96(V) Mm

Size: 2.4inches

Panel Type: TFT

Highlight:

18PIN Soldering FPC TFT LCD Screen

SPI Interface LCD Display Module

Customized TFT Display

Basic Infomation

Place of Origin: China

Brand Name: BBI

Certification: ISO9001 RoHS

Payment & Shipping Terms

Packaging Details: CARTON

Delivery Time: 3-4WEEKS

Payment Terms: T/T

Supply Ability: 100000/MONTH

Gallery

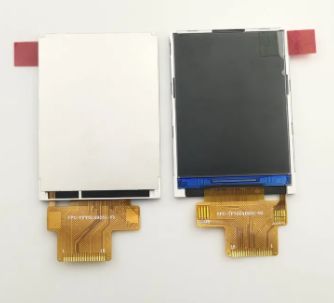

Customized 2.4 Inch TFT LCD Screen with 18PIN Soldering FPC and SPI Interface for Industrial Control

Product Description

Customized 2.4 Inch TFT LCD Screen 18PIN Soldering FPC 240x320 Dots

Key Features

Size and Resolution:
- 2.4-inch diagonal size - Compact design ideal for space-constrained devices
- 240x320 pixel resolution - Provides clear text and detailed graphics for user interfaces
IPS Technology:
- 178° wide viewing angles with consistent colors and brightness
- Superior color accuracy and vibrancy compared to TN displays

Technical Specifications

Item	Specification
Product Name	2.4 Inch TFT LCD
LCD Type	IPS, QVGA
Viewing Angle	Free
Resolution	240x320 dots
Operating Temperature	-20~+70℃
Storage Temperature	-30~+80℃
FPC Connector	18PIN, soldering type
Driver IC(COG)	NV3030B
Interface	SPI
Backlight Type	4-LED, White, 80mA
Outline Dimension	42.72(H)60.26(V)2.40(D) mm
Active Area	36.72(H)*48.96(V) mm

Application Scenarios

This versatile 2.4-inch TFT LCD screen is suitable for various applications including:

Consumer Electronics: MP3 players, handheld game consoles, electronic dictionaries
Medical Equipment: Blood glucose meters, blood pressure monitors
Industrial Control: Small instruments and control panels
Smart Home: Smart doorbells, thermostats, and other IoT devices

Frequently Asked Questions

1. I want the LCD display 8 digits and the outline size is 65x30x2.8mm?

We can accommodate custom specifications. Please send us your detailed requirements or samples, and we'll recommend or customize the appropriate solution.

2. This LCD is just what we want, but it is big size, do you have any smaller size?

For segment type LCD modules requiring size or content modifications, we can create new tooling to meet your exact requirements.

3. This LCD display is HTN type, but I want STN type, can you make?

Yes, we can modify the display type according to your specifications.

4. I want to customize a new LCD module. Can you do?

Absolutely. Please provide your drawings or specifications including outline size, display information, and technical requirements.

5. What is leading time for tooling?

Typically 15-25 days after drawing confirmation and tooling payment. Exact timeline will be confirmed upon order.

6. Can you send us samples for checking?

Yes, sample orders are available for standard products.

7. What is the Leading Time?

Standard products ship in 1 day after payment. Custom production typically takes 15-30 days, with possible earlier completion.
