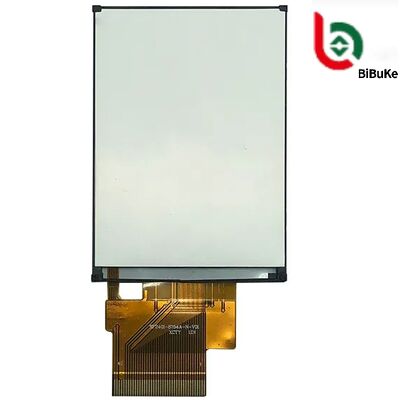

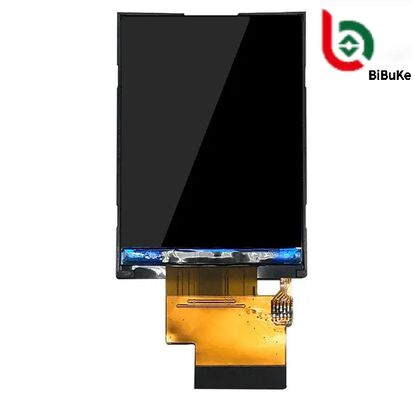

2.4 Inch 240x320 Pixels TFT LCD Display Without Touch Screen (Optional)
2.4" TN type TFT LCD Display with QVGA 240x320 pixel resolution. This module offers exceptional cost-effectiveness compared to similar products in its category.
| Product: |
2.4 Inch TFT Screen |
| Resolution: |
240x320 |
| Touch Screen: |
Without Touch Screen (Optional) |
| Cover Glass Dimension: |
To Be Customized |
| Viewing Direction: |
12:00 |
| Driver IC: |
ST7789V Compatible With ILI9341V |
| Interface: |
MPU 16 |
| Connection: |
Plugging (customizable) |
| Pin Number: |
40 Pins |
| Surface Luminance: |
300 Cd/m² (nits) |
Technical Drawings
Technical Specifications
Display Parameters
- Size: 2.4-inch diagonal (approximately 6.1 cm) - ideal for portable devices
- Resolution: 240x320 pixels - provides clear text and graphics display
- Display Technology: TFT (Thin Film Transistor) with independent pixel switching for fast response, high contrast, and realistic color reproduction
- Interface Types: Compatible with RGB, SPI, and 8080 parallel port interfaces - easily connects to STM32, ESP32, Arduino, and other mainstream MCUs
- Brightness & Viewing Angle: 200-1700 cd/m² brightness range with IPS full-angle viewing (178° from all directions)
- Operating Temperature: -20℃ to 70℃ - ensures reliable performance across wide environmental conditions
Product Features
- Compact & Lightweight: Ultra-thin design (≤3mm thickness) for easy integration into space-constrained devices
- Low Power Consumption: LED backlight technology uses approximately 1/5 the power of traditional displays
- High Stability: Industrial-grade construction with anti-vibration, anti-interference, and anti-static properties
Application Areas
- Consumer Electronics: Learning machines, electronic photo albums, game consoles, handheld audio/video players
- Medical Electronics: Blood pressure monitors, blood glucose meters, heart rate monitors, portable ultrasound devices
- Industrial Control: Data acquisition terminals, portable detectors, PLC controllers
- Smart Home: Smart door locks, temperature control panels, lighting controllers
- Communication & Security: Walkie-talkies, wireless control terminals, access control devices, monitoring displays
- Instrumentation & Metering: Power detection instruments, gas analyzers, flow meters, handheld testers
Frequently Asked Questions
1. I want the LCD display 8 digits and the outline size is 65x30x2.8mm?
No problem. Please send us your specifications or drawing. If you don't have specifications, provide samples and we'll recommend suitable options or customize based on your requirements.
2. This LCD is just what we want, but it is big size, do you have any smaller size? And the display content need to be changed a little.
For segment type LCD modules requiring size modifications or display content changes, we can create new tooling to produce customized glass modules.
3. This LCD display is HTN type, but I want STN type, can you make?
Yes, we can modify the display type according to your specific requirements.
4. I want to customize a new LCD module. Can you do?
Yes, we offer full customization services. Please provide your drawing or specify outline size, display information (glass thickness, polarizer, display type, connector mode, storage/operating temperature, supply voltage, viewing direction, drive conditions).
5. What is the lead time for tooling?
Typically 15-25 days after drawing confirmation and tooling payment. We'll provide exact timelines upon drawing approval.
6. Can you send us samples for checking?
Yes, sample orders are available for quality verification.
7. What is the lead time?
For standard products in stock: 1 day after payment. For mass production of custom orders: 15-30 days. We'll notify you if we can complete earlier.
