Features

Specifications

Display Color:: 16.7 M

Size: 13.3 Inch

Active Area: 293.76 X 165.24 (mm)

Brightness: 1000 Cd/m²

Product Type: TFT LCD Screen

Light Source: White LED

Operating Temperature: -10°C To 60°C

Backlight Technology: LED

Highlight:

13.3 inch TFT LCD Screen

1920x1080 Resolution LCD Display Module

Capacitive Touchscreen TFT Display

Basic Infomation

Place of Origin: China

Brand Name: BBI

Certification: ISO9001 RoHS

Document: Product Brochure PDF

Payment & Shipping Terms

Packaging Details: CARTON

Delivery Time: 3-4WEEKS

Payment Terms: T/T

Supply Ability: 100000/MONTH

Gallery

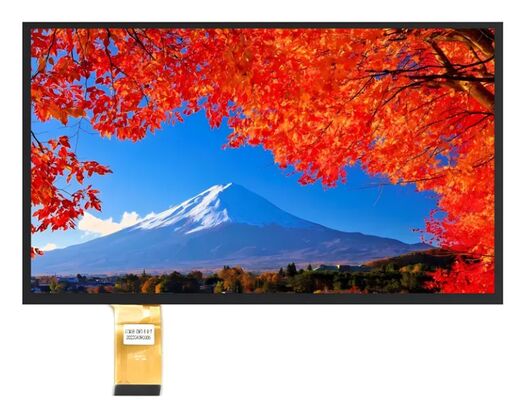

13.3 Inch TFT LCD Screen with 1920x1080 Resolution and Capacitive Touchscreen HDMI Display

Product Description

13.3" EDP TFT LCD 1920×1080 Dots Capacitive Touchscreen HDMI Display

High-performance 13.3-inch industrial display featuring Full HD resolution, capacitive touchscreen, and robust construction for demanding applications.

Technical Specifications

Keywords	13.3 Inch EDP TFT LCD	Resolution	1920×1080 Pixels
LCD Interface	EDP	Surface Luminance	1000 Cd/m²
Touch Screen	CTP	CTP Interface	USB
Active Area	293.76 × 165.24 mm	Operating Temperature	-10ºC to +60ºC
Storage Temperature	-20ºC to +60ºC	Display Type	IPS Full Viewing Angles
Surface Treatment	Haze 25%, 3H	Contrast Ratio	1000
Display Color	16.7 M	LED Lifetime	30,000 Hours
Certificate	ISO9001:2015 / ISO14001:2015	Compliance	REACH & RoHS Compliant

Display Features

Size: 13.3 inches - Generous screen size for detailed viewing and user interaction
Resolution: 1920×1080 pixels - Full HD clarity for sharp images and text
TFT Technology: Fast response times and high contrast ratios for vibrant colors
IPS Panel: Wide viewing angles with consistent color and brightness from all directions
Capacitive Touchscreen: Multi-touch gesture support for intuitive user interaction
HDMI Interface: Convenient connection for computers, gaming consoles, and media players
High Brightness: 1000cd/m² ensures visibility in bright environments and direct sunlight
Industrial Construction: Built to withstand continuous use in professional and commercial settings
Wide Temperature Range: Reliable operation across various climate conditions

Applications

Ideal for industrial automation, digital signage, gaming monitors, medical equipment, and in-vehicle systems where high-definition display and touch interaction are essential.

Frequently Asked Questions

I want the LCD display 8 digits and the outline size is 65×30×2.8mm?

No problem. Please send us your specifications or drawing. If you don't have specifications, you can provide samples and we'll recommend suitable options or customize based on your requirements.

This LCD is just what we want, but it is big size. Do you have any smaller size? And the display content needs to be changed a little.

For segment type LCD modules, if you need to modify the outline size or display content, a new LCD glass module is required and we'll need to create new tooling.

This LCD display is HTN type, but I want STN type. Can you make?

Yes, we can change the display type to STN as per your request.

I want to customize a new LCD module. Can you do?

Yes, we can customize LCD modules. Please send your drawing or provide specifications including outline size, glass thickness, polarizer, display type, connector mode, temperature ranges, supply voltage, viewing direction, and drive conditions.

What is the lead time for tooling?

Typically 15 to 25 days after drawing confirmation and tooling charge payment. We'll provide exact timing when you confirm the drawing.

Can you send us samples for checking?

Yes, sample orders are available.

What is the lead time?

For standard products in stock: 1 day after payment. For mass production of custom items: approximately 15-30 days. We'll notify you if we can complete earlier.

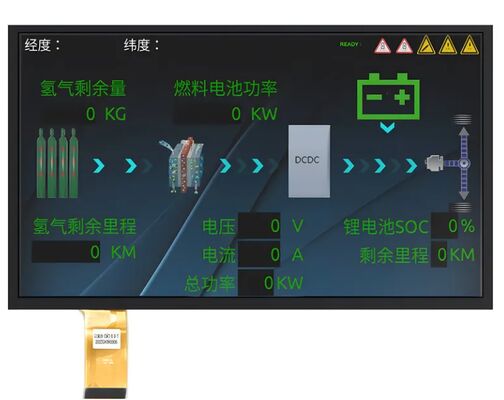

13.3 Inch TFT LCD Screen with 1920x1080 Resolution and Capacitive Touchscreen HDMI Display 2

For more information or to request a quote, please contact us!
