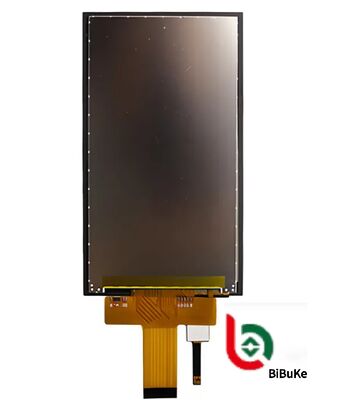

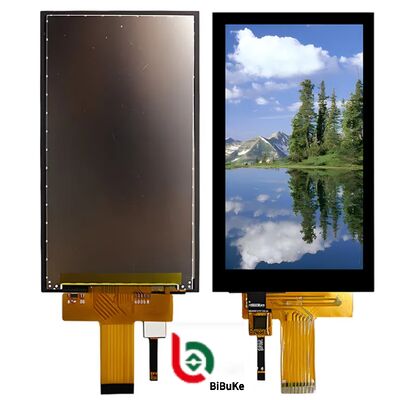

Multi Touch PCAP TFT 5 Inch Display MIPI Interface 720×1280 Pixels
High-performance 5-inch TFT LCD display with capacitive touch technology, designed for industrial and consumer applications requiring reliable visual interfaces.
Key Features
Product:5 Inch IPS TFT With CTP
Resolution:720×1280 Dots
Interface:MIPI
Touch Screen:PCAP
Viewing Direction:IPS All Viewing Angles
PCAP Structure:GFF
LCD Controller:ST7703
CTP Controller:GT911
Cover Glass Dimension:Customizable
Pin Number:30 Pins
Connection:ZIF FPC
Surface Luminance:350 Cd/m² (nits)
Technical Specifications
| Item | Specification | Unit |
|---|
| Screen Size | 5.0 | inch |
| Number of Pixel | 720RGB(H)×1280(V) | Pixels |
| Display area | 62.10(H)×110.40(V) | mm |
| Pixel pitch | 0.0945(H)×0.0945(V) | mm |
| Outline Dimension | 78.56×135.65×2.95 | mm |
| Pixel arrangement | RGB Vertical Stripe | ― |
| Display mode | Normally Black | ― |
| Viewing Direction | ALL | ― |
| Display Color | 262K | ― |
| Luminance | 350 | nit |
| Contrast Ratio | 800:1 | ― |
| Interface | MIPI | |
| Back-light | LED Side-light type | ― |
| LCM IC | ST7703 | |
| CTP IC | GT911 | |
| Operation Temperature | -20~70 | °C |
| Storage Temperature | -30~80 | °C |
Technical Overview
This multi-touch PCAP TFT 5-inch display with MIPI interface and 720×1280 pixel resolution represents a common LCD display module solution. The display utilizes TFT (thin film transistor) liquid crystal display technology combined with IPS panel technology, providing nearly 180-degree full-angle viewing capability.
Performance Characteristics
- High-resolution 720×1280 pixel display ensures exceptional image clarity and detail reproduction
- 350cd/m² brightness rating with LED backlight rated for 40,000 hours of operation
- Capacitive touch screen utilizes GT911 control chip with multi-touch support
- High touch accuracy and rapid response speed for smooth user interaction
- MIPI interface with 30-pin ZIF FPC connection
- Compliant with REACH and RoHS environmental standards
Product Advantages
- Compact 5-inch screen size ideal for portable and handheld devices
- MIPI interface provides high-speed data transmission for stable image display and rapid updates
- 720×1280 resolution delivers detailed imagery and crisp text display on compact screens
- PCAP (projected capacitive) touch technology supports multi-touch gestures including zooming and sliding
- Smooth interaction experience with responsive touch performance
Application Areas
- Consumer Electronics: Smartphones, tablets, and portable devices requiring superior visual and interaction experiences
- Automotive Systems: Navigation displays with all-angle visibility for clear map information and interface operation
- Industrial Control: Control panels and interfaces enabling precise operation and parameter configuration
Frequently Asked Questions
I want the LCD display 8 digits and the outline size is 65×30×2.8mm?
No problem. Please send us your specifications or drawing. If you don't have specifications, you can provide samples and we'll recommend suitable options or customize based on your requirements.
This LCD is just what we want, but it is big size, do you have any smaller size? And the display content need to be changed a little.
For segment type LCD modules requiring size modifications or display content changes, we need to create a new LCD glass module with custom tooling.
This LCD display is HTN type, but I want STN type, can you make?
Yes, we can modify the display type according to your specifications.
I want to customize a new LCD module. Can you do?
Yes, we provide custom LCD module manufacturing. Please send your drawing or provide specifications including outline size, display information, glass thickness, polarizer type, connector mode, temperature ranges, voltage requirements, viewing direction, and drive conditions.
What is the lead time for tooling?
Typically 15 to 25 days after drawing confirmation and tooling payment. We'll provide exact timelines upon drawing approval.
Can you send us samples for checking?
Yes, sample orders are available for quality verification.
What is the lead time?
For standard products in stock, lead time is one day after payment. For mass production of custom orders, lead time is approximately 15-30 days. We'll notify you promptly if we can complete orders sooner.
Packaging & Shipping
Packaging Options
We provide various packaging solutions including carton boxes, cupboard packaging, EPE foam, and blister trays. Packaging methods are determined by product size and specific customer requirements, with consideration for international shipping regulations.
Shipping Methods
We offer multiple shipping options including express carriers (DHL, FedEx, EMS, UPS), air freight, and sea shipping. You can select your preferred shipping method.
