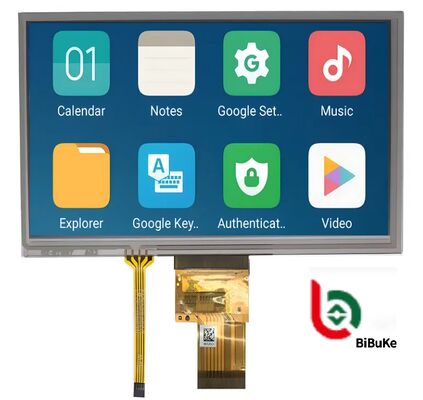

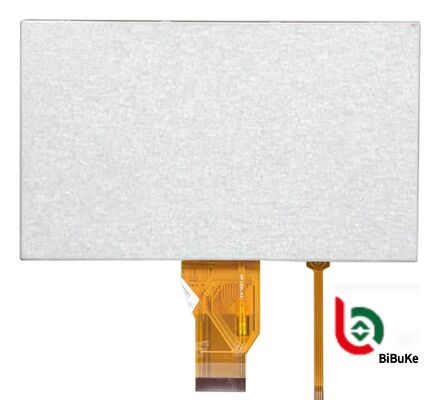

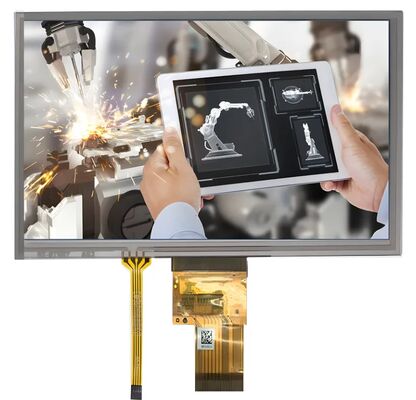

RGB Interface 9 Inch TFT LCD 800×480 Dots With Resistive Touch Screen
High-performance 9-inch TFT LCD display with resistive touch screen, designed for industrial and commercial applications requiring reliable visual interface solutions.
Key Specifications
| Product | 9 Inch RGB TFT | Resolution | 800 RGB × 480 |
| Touch Screen | RTP (Resistive) | Interface | RGB |
| Surface Luminance | 400 Cd/m² (nits) | Viewing Direction | 6H |
| Pin Number | 50 pins | Outline Dimensions | 211.1(W)×126.5(H)×7.3(D) mm |
| Active Area | 201.8(H) × 114.5(V) mm | Surface Treatment | Hard Coating (3H) |
| Display Colors | 16.7 Million | Connection | ZIF |
| Operating Temperature | -20℃ to +70℃ | Storage Temperature | -30℃ to +80℃ |
Technical Parameters
| Item | Specification |
|---|
| LCD Size | 9.0 inch (Diagonal) |
| Driver Element | a-Si TFT Active Matrix |
| Resolution | 800 × 3(RGB) × 480 |
| Display Mode | Normally White, Transmissive |
| Dot Pitch | 0.0825(W) × 0.2327(H) mm |
| Active Area | 198.000(W) × 111.696(H) mm |
| Module Size | 211.1(W)×126.5(H)×5.9(D) mm |
| Module Size (with RTP) | 211.1(W)×126.5(H)×7.3(D) mm |
| Surface Treatment | Anti-Glare |
| Color Arrangement | RGB-stripe |
| Interface | RGB |
| View Direction (Gray Inversion) | 6 O'Clock |
| Backlight Power Consumption | 2.046W (Typ.) |
| Panel Power Consumption | 0.360W (Typ.) |
| Weight | TBD |
Product Overview
This 9-inch TFT LCD display with resistive touch screen offers an optimal balance of display clarity and processing efficiency, making it ideal for various industrial and commercial applications.
- Size and Resolution: 9-inch diagonal with 800×480 pixel resolution for clear text and graphics display
- Display Technology: TFT LCD technology supporting 16.7 million colors
- Interface Type: 24-bit RGB interface compatible with ARM, FPGA, and embedded systems
- Touch Screen: Resistive technology for reliable operation with finger or stylus input
- Brightness and Viewing: 450cd/m² brightness with wide viewing angles for various lighting conditions
- Compact Design: Approximately 210.6mm×126.5mm×5.3mm for easy integration
Applications
- Industrial Control & Automation: HMI for PLC systems, robotics, testing equipment, and factory dashboards
- Smart Home Systems: Central control hubs, security monitoring, and environmental control terminals
- Medical Equipment: Patient monitoring, diagnostic equipment displays, and portable medical devices
- Vehicle & Transportation: Navigation systems, intelligent rearview mirrors, and logistics management
- Commercial Retail: POS systems, self-service terminals, ATMs, and digital signage
Pin Configuration
| No. | Symbol | I / O | Function |
|---|
| 1 | VLED | - | Power for LED backlight |
| 2 | VLED | - | Power for LED backlight |
| 3 | GLED | - | Ground for LED backlight |
| 4 | GLED | - | Ground for LED backlight |
| 5 | GND | P | Power ground |
| 6 | VCOM | I | Common voltage |
| 7 | DVDD | P | Power for Digital Circuit |
| 8 | MODE | I | DE/SYNC mode select |
| 9 | DE | I | Data Input Enable |
| 10 | VS | I | Vertical Sync Input |
| 11 | HS | I | Horizontal Sync Input |
| 12-19 | B7 - B0 | I | Blue data (MSB) |
| 20-27 | G7 - G0 | I | Green data (MSB) |
| 28-35 | R7 - R0 | I | Red data (MSB) |
| 36 | GND | P | Power Ground |
| 37 | DCLK | I | Sample clock |
| 38 | GND | P | Power Ground |
| 39 | L/R | I | Left / right selection |
| 40 | U/D | I | Up/down selection |
| 41 | VGH | P | Gate ON Voltage |
| 42 | VGL | P | Gate OFF Voltage |
| 43 | AVDD | P | Power for Analog Circuit |
| 44 | RESET | I | Global reset pin |
| 45 | NC | - | No connection |
| 46 | VCOM | I | Common Voltage |
| 47 | DITHB | I | Dithering function |
| 48 | GND | P | Power Ground |
| 49 | NC | - | No connection |
| 50 | NC | - | No connection |
Frequently Asked Questions
I want the LCD display 8 digits and the outline size is 65x30x2.8mm. Is this possible?
Yes, we can accommodate custom specifications. Please provide your detailed requirements or existing samples, and we will recommend suitable standard products or create a custom solution.
This LCD is what we want, but it's too large. Do you have smaller sizes with modified display content?
For segment type LCD modules requiring size or content modifications, we can create new tooling to produce custom displays according to your specifications.
This LCD display is HTN type, but I want STN type. Can you make this change?
Yes, we can modify the display type to STN as per your requirements.
I want to customize a new LCD module. Can you do this?
Absolutely. Please provide your technical drawings or specifications including outline size, glass thickness, polarizer type, display type, connector mode, temperature ranges, and drive conditions.
What is the lead time for tooling?
Typically 15-25 days after drawing confirmation and tooling payment. We will provide exact timelines upon project confirmation.
Can you send us samples for evaluation?
Yes, sample orders are available for product evaluation and testing.
What is the lead time for production?
For standard products in stock, lead time is 1 day after payment. For mass production of custom orders, lead time is typically 15-30 days. We will notify you if we can complete production sooner.
