Features

Specifications

Surface Luminance: 300 Cd/m2(nits)

Colors: 262K

Pixel Arrangement: RGB Vertical Stripe

Aspect Ratio: 16:9

Active Area: 61.56(H)x109.53(V)

Backlight Type: LED

Viewing Angle: ALL

Operating Temperature: -20~70

Highlight:

5 Inch TFT LCD Display

480x854 RGB Interface TFT LCD Screen

300 Cd/m2 Luminance LCD Display Module

Basic Infomation

Place of Origin: China

Brand Name: BBI

Certification: ISO9001 RoHS

Document: Product Brochure PDF

Payment & Shipping Terms

Packaging Details: CARTON

Delivery Time: 3-4WEEKS

Payment Terms: T/T

Supply Ability: 100000/MONTH

Gallery

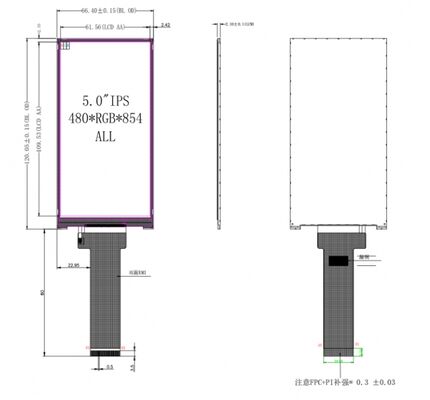

5 Inch 480x854 RGB Interface TFT LCD Display with 300 Cd/m2 Luminance for Industrial Applications

Product Description

5 Inch 480x854 RGB Interface TFT LCD Display

Product	TFT LCD Display
Screen Size	5.0 Inch (Diagonal)
Resolution	480 (RGB) × 854 Pixels
Luminance	300 Cd/m² (nits)
Interface	RGB 565 Parallel
Drive IC	ST7701S
Operating Temperature	-20°C To +70°C
Storage Temperature	-30°C To +80°C
Backlight Type	LED Side Light (12 LEDs)
Backlight Lifetime	40,000 Hours (Typical)
Viewing Angle	80°/80°/80°/80° (All Directions)
Compliance	RoHS, REACH

Product Overview

5-inch TFT liquid crystal display module with 480x854 RGB interface, designed for industrial applications with reliable performance and clear image display capabilities.

Key Features

Size & Resolution: 5-inch diagonal screen with 480x854 pixel resolution for clear data and image display in industrial scenarios
Interface Type: RGB interface enables high-speed data transmission for stable image signals, reducing color distortion and delay
Display Technology: TFT (thin film transistor) technology with fast response speed, bright colors, and high contrast; some models feature IPS technology for wide viewing angles
Brightness & Contrast: Industrial-grade brightness (200-550cd/m²) with approximately 800:1 contrast ratio for distinct colors and clear image layers
Temperature Range: Wide operating temperature (-20°C to +70°C) and storage temperature (-30°C to +80°C) for industrial environment adaptability
Form Factor: Compact dimensions ranging from 65.35mm x 118.50mm x 1.79mm to 67.56mm x 122.35mm x 4.1mm

Applications

Industrial Control: Equipment operation status, parameter settings, and fault alarm displays for monitoring and control panels
Medical Devices: Blood glucose meters, blood pressure monitors, portable ultrasound diagnostic instruments for data and image display
Automotive Electronics: Instrument panels for vehicle speed, fuel level, engine RPM, and central control displays for navigation and multimedia
Smart Terminals: Industrial PDAs and handheld devices for mobile information viewing and operation

Frequently Asked Questions

I want the LCD display 8 digits and the outline size is 65x30x2.8mm. Is this possible?

Yes, we can accommodate this requirement. Please send us your specifications or drawing. If you don't have specifications, you can provide samples and we'll recommend suitable options from our standard products or customize based on your requirements.

This LCD is what we want, but it's too large. Do you have smaller sizes? We also need minor display content modifications.

For segment type LCD modules requiring size or display content modifications, we need to create a new LCD glass module with custom tooling.

This LCD display is HTN type, but I want STN type. Can you make this change?

Yes, we can change the display type to STN as per your request.

Can you customize a new LCD module for us?

Yes, we provide custom LCD module services. Please send your drawing or provide specifications including outline size, display information (glass thickness, polarizer, display type, connector mode, storage/operating temperature, supply voltage, viewing direction, drive conditions).

What is the lead time for tooling?

Tooling typically takes 15-25 days after drawing confirmation and tooling charge payment. We'll provide exact timelines upon drawing approval.

Can you send samples for evaluation?

Yes, sample orders are available for quality verification.

What is the production lead time?

For standard products in stock, lead time is one day after payment. For mass production of custom orders, lead time is approximately 15-30 days. We'll notify you if we can complete orders earlier.
