Features

Specifications

Light Source: White LED*6 ( Customizable )

Screen Size: 4.3 Inches

Pins Number: 45 Pins

Storage Temperature: -30°C To 80°C

Connectivity: Plugging ( Customizable )

Touch Screen: With Resistive Touch Screen (Optional)

Surface Luminance: 200 Cd/m2 ( Customizable )

Display Color: 262k

Highlight:

4.3 Inch TFT LCD Display

480x800 Resolution IPS TFT Screen

45 Pins LCD Display Module

Basic Infomation

Place of Origin: China

Brand Name: BBI

Certification: ISO9001 RoHS

Document: Product Brochure PDF

Payment & Shipping Terms

Packaging Details: CARTON

Delivery Time: 3-4WEEKS

Payment Terms: T/T

Supply Ability: 100000/MONTH

Gallery

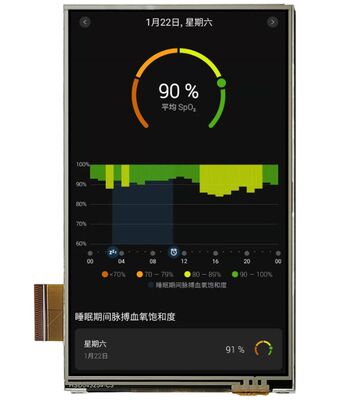

4.3 Inch 480x800 Resolution IPS TFT LCD Display with 45 Pins and MIPI Interface

Product Description

4.3 Inch 480x800 45 Pins IPS TFT LCD Display

High-quality 4.3-inch IPS TFT LCD display with 480×800 resolution and 45-pin interface, featuring wide viewing angles and customizable options for various industrial applications.

Technical Specifications

Parameter	Specification
Product	4.3 Inch IPS TFT LCD
Resolution	480×800 Pixels
Viewing Direction	All Viewing Angles (IPS)
Touch Screen	With Resistive Touch Screen (Optional)
Interface	MIPI Interface (Customizable)
Pin Number	45 Pins (Customizable)
Connection	Plugging (Customizable)
Surface Luminance	200 Cd/m² (Customizable)
Operating Temperature	-20ºC to +70ºC
Compliance	REACH & RoHS Compliant

Detailed Product Features

Screen Size: 4.3 inches with active area of 56.16×93.60mm and outline dimension of approximately 61.56×104.65×3.75mm
Display Quality: 480×800 pixel resolution with approximately 217 PPI density for clear text and image display
Interface Technology: MIPI interface supporting high-speed data transmission for Android, Linux, and other systems
Connection: 45-pin configuration using FPC ZIP Connector
Driver IC: HX8369-A01 single-chip TFT mobile display driver with integrated GRAM, supporting 16.7 million colors
Panel Type: IPS technology with 178° viewing angle, minimal color/brightness shift, and excellent contrast/color reproduction
Electrical Specs: Supply voltage range of 2.6V to 3.3V (typical 2.8V)
Performance: High contrast, wide color gamut, excellent stability, and detailed display quality

Application Areas

Industrial Control: HMI interfaces for complex charts and multi-level menus with capacitive touch functionality
Medical Equipment: Blood glucose meters, portable monitors with clear data display and low-blue-light options
Vehicle-Mounted Display: Cost-effective solution for navigation systems, rearview cameras with wide-temperature capability
Smart Home: Control panels supporting modern UI designs with low power consumption for 24/7 operation
Portable Devices: PDA handheld devices, MP4 players, learning machines, and recorders

Frequently Asked Questions

I want the LCD display 8 digits and the outline size is 65x30x2.8mm. Is this possible?

Yes, we can accommodate custom specifications. Please provide your detailed specification or drawing. If unavailable, we can recommend suitable standard products or create custom solutions based on your requirements.

This LCD is what we want, but it's too large. Do you have smaller sizes with modified display content?

For segment type LCD modules requiring size or content modifications, we can create new LCD glass modules with custom tooling to meet your specific needs.

This LCD display is HTN type, but I want STN type. Can you manufacture this?

Absolutely. We can modify the display type according to your specifications and requirements.

Can you customize a new LCD module for our application?

Yes, we specialize in custom LCD solutions. Please provide your drawing or specifications including outline size, display information, glass thickness, polarizer type, display type, connector mode, temperature ranges, supply voltage, viewing direction, and drive conditions.

What is the lead time for custom tooling?

Typically 15 to 25 days after drawing confirmation and tooling charge payment. We provide exact timelines upon drawing approval.

Can you provide samples for evaluation?

Yes, sample orders are available for your testing and verification purposes.

What is your standard lead time for production?

For standard products in stock, lead time is one day after payment. For mass production of custom items, lead time is approximately 15-30 days. We communicate any schedule improvements in advance.
