4 Inch 480x480 Dots Resolution RGB+SPI Interface IPS All Viewing Angle TFT LCD Display Module

1000
MOQ
0.7-7USD
Price
4 Inch 480x480 Dots Resolution RGB+SPI Interface IPS All Viewing Angle TFT LCD Display Module
Features Gallery Product Description Chat Now
Features
Specifications
Display Size: 4 Inches
Interface: RGB+SPI
Pin Number: 40 Pins
Connection: ZIF
Touch Screen: Without Touch, ( With CTP Optional)
Surface Luminance: 420 Cd/m2(nits)
Viewing Direction: All Viewing Angle, IPS
Response Time: 5 Ms
Highlight:

480x480 Dots Resolution TFT LCD Display

,

RGB+SPI Interface TFT Screen

,

IPS All Viewing Angle LCD Display Module
Basic Infomation
Place of Origin: China
Brand Name: BBI
Certification: ISO9001 RoHS
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 3-4WEEKS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Product Description

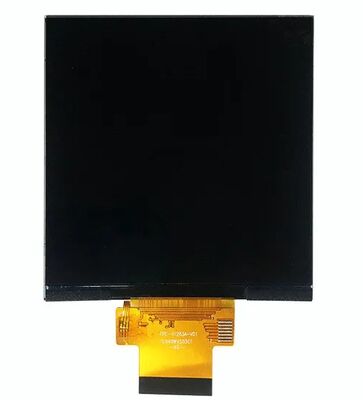

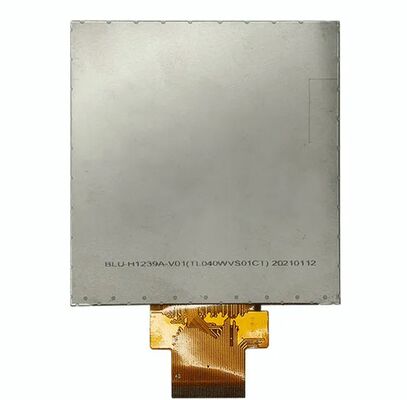

4" 480×480 Dots Resolution RGB and SPI Square TFT LCD Display
Product Overview

High-performance 4-inch square TFT LCD display module featuring IPS technology with 480×480 resolution, combining RGB parallel interface for high-speed display and SPI serial interface for configuration.

Technical Specifications
Parameter Specification Parameter Specification
Product 4 Inch TFT Square Display Touch Screen Without Touch (With CTP Optional)
Resolution 480×480 Cover Glass Dimension Customizable
Viewing Direction All Viewing Angle, IPS Interface RGB+SPI
Pin Number 40 Pins Connection ZIF
Surface Luminance 420 Cd/m² (nits) Typical LED Lifetime 40,000 Hours
Product Features
  • Display Technology: IPS TFT with true 1:1 square aspect ratio (3.95" diagonal)
  • Color Performance: 16-18bit full color supporting 260,000+ colors with vivid reproduction
  • Viewing Experience: 80° wide viewing angle in all directions with minimal color shift
  • Brightness Range: 300-400 cd/m² for excellent outdoor visibility
  • Temperature Range: Operating temperature -20°C to 70°C for industrial applications
  • Interface Flexibility: RGB for high-speed pixel rendering and SPI for configuration
  • Compact Design: Approximately 3mm thickness with 84×84mm dimensions
  • Connectivity: FPC flexible ribbon cable with ZIF connector for easy integration
  • Touch Options: Capacitive touch screen with fast response and multi-point support
  • Compatibility: Works with ESP32, Raspberry Pi, STM32, and other mainstream MCUs
Primary Applications
  • Smart Home & Building Control: Control panels for smart switches, thermostats, and access systems
  • Industrial Instruments: Portable detectors, PLC interfaces, and monitoring devices
  • Medical Equipment: Diagnostic devices and patient monitoring systems
  • IoT Terminals: Smart wearables, logistics scanners, and agricultural sensor displays
  • Maker Projects: Robot controllers, 3D printer interfaces, and vehicle dashboards
  • Consumer Electronics: Bluetooth speaker controls, camera preview screens, and appliance interfaces
4 Inch 480x480 Dots Resolution RGB+SPI Interface IPS All Viewing Angle TFT LCD Display Module 0 4 Inch 480x480 Dots Resolution RGB+SPI Interface IPS All Viewing Angle TFT LCD Display Module 1
Frequently Asked Questions
I want the LCD display 8 digits and the outline size is 65x30x2.8mm. Is this possible?
Yes, we can accommodate custom specifications. Please provide your detailed specification document or drawing. If you don't have technical drawings, you can send samples and we'll recommend suitable options or create custom solutions based on your requirements.
This LCD is what we want, but it's too large. Do you have smaller sizes? We also need minor display content modifications.
For segment-type LCD modules requiring size changes or display content modifications, we need to create new LCD glass modules. This requires new tooling development specifically for your project.
This LCD display is HTN type, but I want STN type. Can you manufacture this?
Absolutely. We can modify the display type to STN according to your specific requirements and application needs.
Can you customize a new LCD module for our application?
Yes, we specialize in custom LCD module development. Please provide your technical drawings. If drawings aren't available, please specify the outline dimensions, display information (glass thickness, polarizer type, display technology, connector mode, temperature ranges, supply voltage, viewing direction, and drive conditions).
What is the typical lead time for tooling development?
Tooling typically requires 15-25 days after drawing confirmation and tooling charge payment. We provide exact timelines once technical drawings are finalized and approved.
Can you provide samples for evaluation and testing?
Yes, sample orders are available for quality verification and compatibility testing.
What are your production lead times?
For standard products in stock, lead time is one day after payment confirmation. For mass production of custom orders, typical lead time is 15-30 days. We proactively communicate if we can complete orders ahead of schedule.
