1.3 Inch 240x240 Resolution SPI Interface TFT LCD Display Module for Embedded Devices

1000
MOQ
0.7-7USD
Price
1.3 Inch 240x240 Resolution SPI Interface TFT LCD Display Module for Embedded Devices
Features Gallery Product Description Chat Now
Features
Specifications
Storage Temperature: -30°C To 80°C
Backlight Technology: LED
Display Size: 1.3 Inches
Aa Size: 23.4(H) X 23.4 (V) Mm
Display Technology: TFT LCD
Operating Temperature: -20°C To 70°C
Interface: SPI
Luminance: 250 Cd/m2
Highlight:

240x240 Resolution TFT LCD Display

,

SPI Interface TFT Screen

,

1.3 Inch Size LCD Display Module
Basic Infomation
Place of Origin: China
Brand Name: BBI
Certification: ISO9001 RoHS
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 3-4WEEKS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Product Description

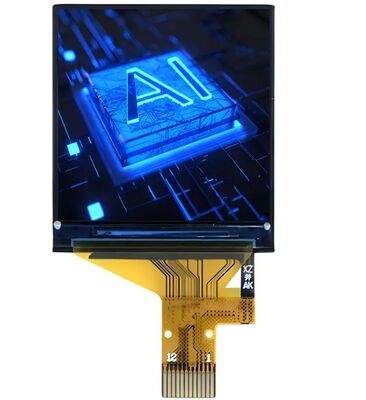

1.3 Inch 240x240 Dot Matrix SPI Square TFT LCD Display
Technical Specifications
Parameter Specification
LCD Size 1.3 inch (Diagonal)
Display Mode Normally black
Resolution 240(H)RGB x 240(V)
Dot Pitch 0.0975 (H) x 0.0975(V) mm
Active Area 23.4(H) x 23.4(V) mm
Module Size 26.16(H) x 29.22(V) x 1.5Max(D) mm
Color Arrangement RGB Vertical stripe
Interface SPI
Drive IC ST7789P3
Luminance 250 (TYP) cd/m²
Viewing Direction All View
Backlight 2 White LED
Operating Temperature -20ºC to +70ºC
Storage Temperature -30ºC to +80ºC
Product Overview
This compact color display module is designed for embedded systems and small electronic devices. Featuring a 1.3-inch diagonal size with 240×240 resolution square pixel layout, it utilizes IPS TFT technology for superior viewing angles and color stability.
Key Features
  • 65K full-color display capability
  • IPS technology provides consistent color from all viewing angles
  • High brightness (250 cd/m² typical) for outdoor visibility
  • Approximately 260 PPI pixel density for sharp text and icons
  • SPI interface minimizes MCU pin requirements
  • 3.3V power supply with low power consumption
  • Compatible with Arduino, Raspberry Pi, and STM32 development boards
  • Compact size ideal for space-constrained applications
  • Wide operating temperature range (-20°C to +70°C)
Applications
  • Maker and DIY projects: Electronic clocks, temperature monitors, mini game consoles
  • Wearable devices: Smart bracelets, sports watches, pet tracking collars
  • Industrial and medical: Sensor terminals, handheld detection equipment, medical monitors
  • Smart home and IoT: Gateway panels, smart switches, environmental monitoring displays
1.3 Inch 240x240 Resolution SPI Interface TFT LCD Display Module for Embedded Devices 0 1.3 Inch 240x240 Resolution SPI Interface TFT LCD Display Module for Embedded Devices 1 1.3 Inch 240x240 Resolution SPI Interface TFT LCD Display Module for Embedded Devices 2
Frequently Asked Questions
I want the LCD display 8 digits and the outline size is 65x30x2.8mm?
Yes, we can accommodate custom specifications. Please provide your detailed requirements or drawings. If you don't have specifications, we can recommend suitable standard products or create custom solutions based on your needs.
This LCD is just what we want, but it is big size, do you have any smaller size? And the display content need to be changed a little.
For segment type LCD modules requiring size modifications or display content changes, we can create new LCD glass modules. This requires opening new tooling specifically for your requirements.
This LCD display is HTN type, but I want STN type, can you make?
Yes, we can modify the display type according to your specifications. We can produce STN type displays as requested.
I want to customize a new LCD module. Can you do?
Absolutely. We specialize in custom LCD modules. Please provide your drawings or specify requirements including outline size, display information, glass thickness, polarizer type, display type, connector mode, temperature ranges, supply voltage, viewing direction, and drive conditions.
What is the lead time for tooling?
Tooling typically requires 15 to 25 days after drawing confirmation and tooling charge payment. We will provide exact timelines once your drawing specifications are confirmed.
Can you send us samples for checking?
Yes, sample orders are available for evaluation and testing purposes.
What is the lead time?
For standard products in stock, lead time is one day after payment. For mass production of custom orders, lead time is approximately 15-30 days. We will notify you promptly if we can complete your order ahead of schedule.
