7 Inch 1024x600 IPS Full Viewing Angle TFT LCD Display with RGB Interface and Capacitive Touch

1000
MOQ
0.7-7USD
Price
7 Inch 1024x600 IPS Full Viewing Angle TFT LCD Display with RGB Interface and Capacitive Touch
Features Gallery Product Description Chat Now
Features
Specifications
Product Type: TFT LCD Screen
Pin Number: 50 PIN
Size: 7 Inch
Operating Temperature: –20℃ To +70℃
Viewing Angle: All
CTP Interface: I2C
Surface Luminance: 200 Cd/m2
Screentype: LCD TFT
Highlight:

7 Inch TFT LCD Display

,

1024x600 IPS LCD TFT Screen

,

Full Viewing Angle TFT LCD Module
Basic Infomation
Place of Origin: China
Brand Name: BBI
Certification: ISO9001 RoHS
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 3-4WEEKS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Product Description
7 Inch 1024x600 IPS Full Viewing Angle TFT LCD Display
High-performance 7-inch TFT LCD touch screen module with IPS technology for wide viewing angles and excellent color reproduction.
Technical Specifications
Parameter Specification
Screen Size 7 Inch
Resolution 1024x600 (WSVGA)
Display Technology IPS TFT LCD
Viewing Angle 178° All Directions
Touch Screen Capacitive Touch Screen (CTP)
LCM Interface RGB
Surface Luminance 200 Cd/m²
LED Lifetime 40,000 Hours
Pins 50 Pins
Viewing Direction All
CTP Interface I2C
Operating Temperature -20ºC to +70ºC
Compliance REACH & RoHS Compliant
Product Overview
This embedded display module integrates display and touch functions, providing a comprehensive human-computer interaction solution for industrial, automotive, and smart terminal applications.
Key Features
  • 7-inch IPS panel with 1024×600 resolution and 16:9 aspect ratio
  • Full 178° viewing angle with no color deviation or brightness attenuation
  • TFT technology supporting 16.7 million colors (24bit RGB888)
  • LED backlight with brightness typically 350-500 cd/m² (up to 700 cd/m² for industrial models)
  • G+G structure capacitive touch screen supporting 5-point touch
  • Touch IC compatibility with GT911, FT5426, etc.
  • I2C interface for fast touch response and precise operation
  • 24bit RGB parallel interface (TTL level) for high-speed display
  • Compatible with mainstream controllers including STM32, RK, and Allwinner
  • Compact size with effective display area of approximately 154.21×85.92 mm
  • Industrial-grade operating temperature range: -20ºC to +70ºC
  • 5V input power supply with 3.3V IO level for low-power embedded scenarios
Applications
  • Industrial Control: PLC human-machine interface (HMI), intelligent instruments, control panels for automated production lines, industrial robot operation screens
  • Vehicle and Transportation: Vehicle navigation, central control displays for trucks and construction machinery, charging station operation screens
  • Medical Equipment: Portable monitors, display screens for diagnostic devices
  • Smart Home and Commercial: Building control panels, access control systems, self-service terminals, POS machines, smart home central control
  • Embedded Development: Raspberry Pi, STM32 development boards for DIY tablets, handheld devices, and small game consoles

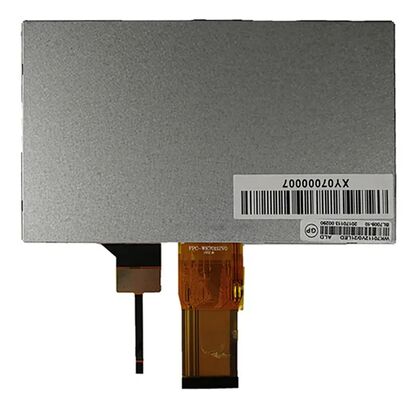

7 Inch 1024x600 IPS Full Viewing Angle TFT LCD Display with RGB Interface and Capacitive Touch 0 7 Inch 1024x600 IPS Full Viewing Angle TFT LCD Display with RGB Interface and Capacitive Touch 1 7 Inch 1024x600 IPS Full Viewing Angle TFT LCD Display with RGB Interface and Capacitive Touch 2
Frequently Asked Questions
I want the LCD display 8 digits and the outline size is 65x30x2.8mm. Is this possible?
Yes, we can accommodate custom specifications. Please provide your detailed specification or drawing. If you don't have specifications, you can send samples and we'll recommend suitable options or customize based on your requirements.
This LCD is what we want, but it's too big. Do you have smaller sizes? Can the display content be modified?
For segment type LCD modules requiring size modifications or display content changes, we need to create new LCD glass modules, which requires new tooling development.
This LCD display is HTN type, but I want STN type. Can you make it?
Yes, we can change the display type according to your request.
I want to customize a new LCD module. Can you do this?
Yes, we specialize in custom LCD modules. Please provide your drawing or specify the outline size, display information (glass thickness, polarizer, display type, connector mode, storage temperature, operating temperature, supply voltage, viewing direction, drive conditions).
What is the lead time for tooling?
Typically 15 to 25 days after drawing confirmation and tooling charge payment. We'll provide exact timelines once your drawing is confirmed.
Can you send samples for evaluation?
Yes, sample orders are available for quality checking and testing.
What is the lead time for production?
For standard products in stock, lead time is one day after payment. For mass production of special orders, lead time is approximately 15-30 days. We'll notify you immediately if we can complete production earlier.
