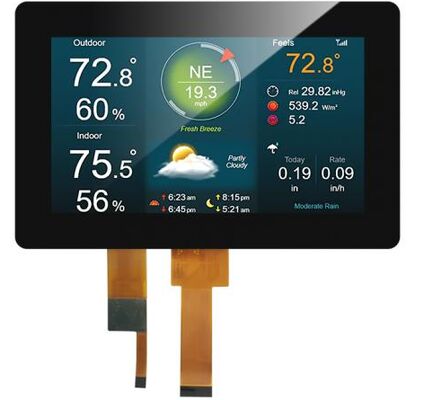

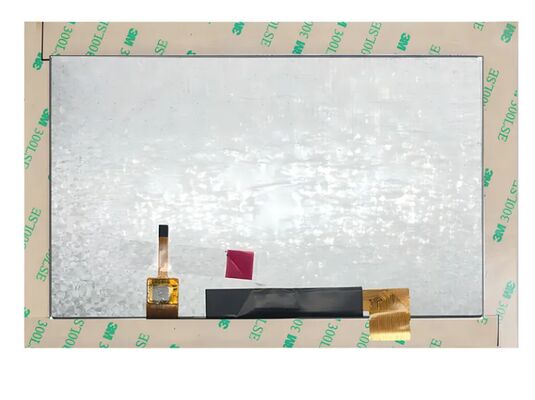

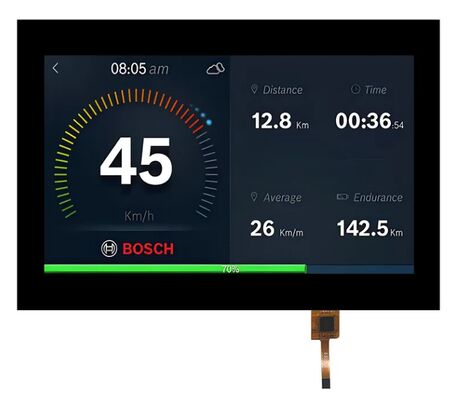

7 Inch 1024x600 IPS Full Viewing Angle TFT LCD Display
High-performance 7-inch TFT LCD display featuring IPS technology for wide viewing angles and capacitive touch screen for enhanced user interaction.
Technical Specifications
| Parameter |
Specification |
| Keywords |
7" Inch TFT |
| Resolution |
1024x600 Dots |
| LCM Interface |
MIPI |
| Touch Screen |
CTP (Capacitive Touch Screen) |
| Cover Glass Dimension |
Gorilla Cover Glass |
| LED Lifetime |
40,000 Hours |
| Viewing Direction |
All Viewing Angle (80/80/80/80) |
| Surface Luminance |
300 Cd/m2 |
| Pins |
30 Pins |
| CTP Interface |
I2C |
| Operating Temperature |
-20ºC To +70ºC |
Product Features
- Size & Resolution: 7-inch diagonal, 1024×600 (WSVGA) resolution with 16:9 widescreen ratio and approximately 170 PPI pixel density
- Display Technology: IPS panels with 178° full viewing angle for stable color without deviation
- Touch Interface: Projected capacitive touch (PCAP) supporting multi-touch (5 points) with fast response and high precision
- Interface: MIPI-DSI interface for high-speed transmission and low power consumption
- Performance: Customizable brightness (250~350 cd/m² standard, 500~800 cd/m² outdoor version)
- Environmental: Wide-temperature operation from -20ºC to +70ºC for industrial applications
Applications
- Industrial Control & HMI: PLC control panels, automation equipment monitoring, AGV cart operation terminals
- Vehicle Electronics: Rearview mirrors, center control secondary screens, navigation terminals
- Smart Home & IoT: Smart gateway panels, HVAC control devices, security intercom systems
- Medical Devices: Handheld ultrasound, blood oxygen meters, portable monitors
- Embedded Development: Raspberry Pi display panels, portable game consoles, mini tablets
Frequently Asked Questions
I want the LCD display 8 digits and the outline size is 65x30x2.8mm?
No problem. Please send us your specification/drawing paper. If you don't have specifications, you can provide samples; we will recommend suitable standard products or customize based on your requirements.
This LCD is just what we want, but it is big size, do you have any smaller size? And the display content need to be changed a little.
For segment type LCD modules, if you need to modify outline size or display content, a new LCD glass module is required. We will open new tooling for you.
This LCD display is HTN type, but I want STN type, can you make?
That's all right. We can change the display type according to your request.
I want to customize a new LCD module. Can you do?
Yes, we can. Please send your drawing paper. If you don't have one, please advise us of the outline size, display information (glass thickness, polarizer, display type, connector mode, storage temperature, operating temperature, supply voltage, viewing direction, drive condition), and we can customize for you.
What is the lead time for tooling?
Generally, it takes 15 to 25 days after drawing paper confirmation and tooling charge payment. We will report the exact time when you confirm the drawing paper.
Can you send us samples for checking?
Yes, sample orders are available.
What is the Lead Time?
If we have stock for standard products, the lead time is one day after payment. For mass production of special orders, the lead time is about 15-30 days. If we can finish earlier, we will report the information in advance.
