Features

Specifications

Interface Types: SPI

Backlight Technology: LED

Outline Dimension: 21.16x29.22x1.9 Mm

Connectivity: FPC Connector Type

Pin Number: 13 PIN

Resolution: 240*240 Pixels

Lcd Type: IPS

Screentype: LCD TFT

Highlight:

240x240 Resolution TFT LCD Display

Free Viewing Angle IPS TFT Screen

SPI Interface LCD Display Module

Basic Infomation

Place of Origin: China

Brand Name: BBI

Certification: ISO9001 RoHS

Document: Product Brochure PDF

Payment & Shipping Terms

Packaging Details: CARTON

Delivery Time: 3-4WEEKS

Payment Terms: T/T

Supply Ability: 100000/MONTH

Gallery

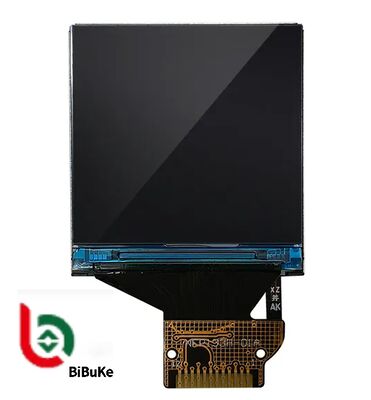

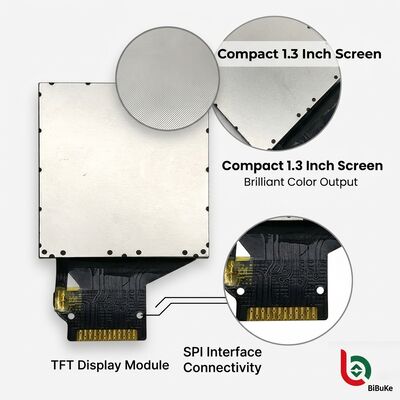

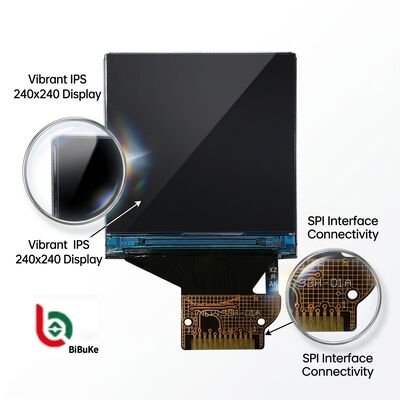

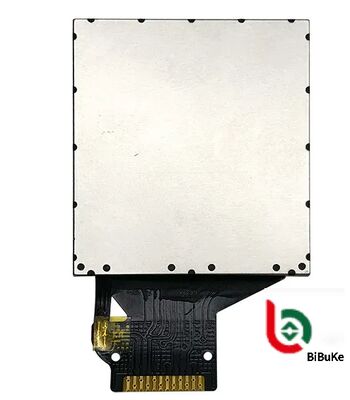

1.3 Inch 240x240 Resolution IPS TFT LCD Display with Free Viewing Angle and SPI Interface

Product Description

1.3" Inch 240x240 Square Type Free Viewing Angle Small IPS TFT LCD Display

A compact full-color square screen featuring IPS technology for true free viewing angles, ideal for embedded and portable devices.

Technical Specifications

Product	1.3" Inch Square TFT LCD	Touch Screen	Without Touch Screen (optional for new design)
Resolution	240x240 Dots	Cover Glass Dimension	Customizable
Viewing Direction	Free Viewing Angle (80/80/80/80)	Interface	SPI
Pin Number	13 Pins	Connection	FPC Connector Type
Surface Luminance	200 Cd/m² (nits)	LED Lifetime	40,000 Hours

Product Overview

This small full-color square screen utilizes IPS (planar conversion) technology to achieve true free full-viewing with approximately 80° viewing angles in all directions without color shift or brightness attenuation. The 240*240 square pixel arrangement provides high pixel density and detailed picture quality with an effective display area of 23.4*23.4mm.

Key Features

Mainstream driver IC ST7789 (H2/V2) with standard 4-wire SPI high-speed interface
Optional MCU/8-bit parallel or RGB interface configurations available
3.3V power supply with some models supporting 2.8V low voltage operation
Ultra-thin module thickness between 1.5-2.3mm
Supports 262K full-color display capability
Regular brightness of 350 cd/m² with outdoor enhanced types reaching 500 cd/m²
High contrast ratio of approximately 800:1 with fast response speed
Wide working temperature range (-20℃ to 70℃)
High ESD protection level
Compatible with Arduino, STM32, Raspberry Pi and other mainstream development boards
Optional resistive/capacitive touch screen for expanded interaction functions

Typical Applications

Smart wearable devices: smart watches, bracelets, fitness monitors
Portable instruments: temperature/humidity/gas detectors, multimeters, tire pressure monitors
Maker and open-source hardware: Raspberry Pi/Arduino visualization panels
Industrial and medical equipment: PLCs, portable monitors, injection pumps
Internet of Things and smart home: gateways, smart switches, appliance displays
Consumer electronics: TWS earphone casings, Bluetooth speakers, power banks

Frequently Asked Questions

I want the LCD display 8 digits and the outline size is 65x30x2.8mm. Is this possible?

Yes, please send us your specifications or drawing. If you don't have specifications, you can provide samples and we'll recommend suitable products or customize based on your requirements.

This LCD is what we want, but it's too big. Do you have smaller sizes? The display content needs minor changes.

For segment type LCD modules, modifying outline size or display content requires a new LCD glass module with new tooling.

This LCD display is HTN type, but I want STN type. Can you make it?

Yes, we can change the display type according to your request.

I want to customize a new LCD module. Can you do this?

Yes, we can customize. Please send your drawing or provide outline size, display information, glass thickness, polarizer, display type, connector mode, storage and operating temperature, supply voltage, viewing direction, and drive conditions.

What is the lead time for tooling?

Typically 15 to 25 days after drawing confirmation and tooling charge payment. We'll provide exact timing upon drawing confirmation.

Can you send samples for checking?

Yes, sample orders are available.

What is the lead time?

For standard products in stock: 1 day after payment. For mass production of special products: approximately 15-30 days. We'll notify you if we can finish earlier.
