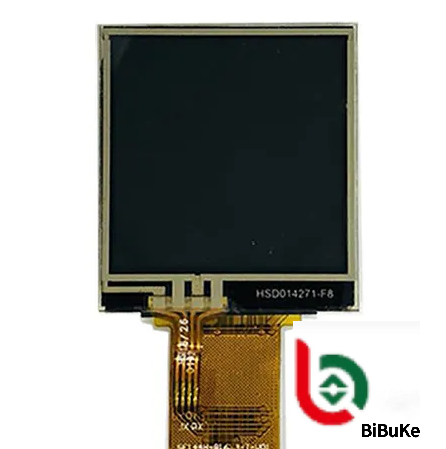

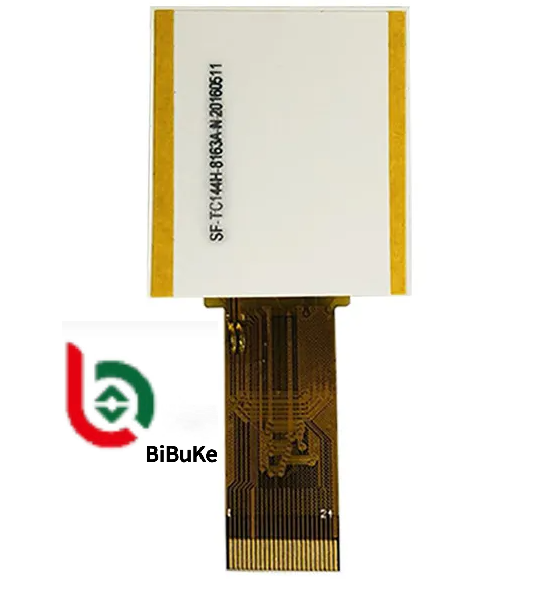

1.44 Inch 8bit MPU Interface 128x128 Square TFT LCD Display
Product Specifications
| Product | 1.44 Inch TFT Display Screen |
| Touch Screen | Resistive Touch Panel (optional) |
| Resolution | 128x128 |
| Cover Glass Dimension | Customizable |
| Viewing Direction | 12:00 |
| Interface | MPU 8 Bit (customizable) |
| Pin Number | 24 Pins (customizable) |
| Connection | Plugging (customizable) |
| Surface Luminance | 150 Cd/m² (nits) (customizable) |
| LED Lifetime | 40,000 Hours |
| Driver IC | ST7735 |
| Compliance | REACH & RoHS Compliant |
Technical Drawing
Product Overview

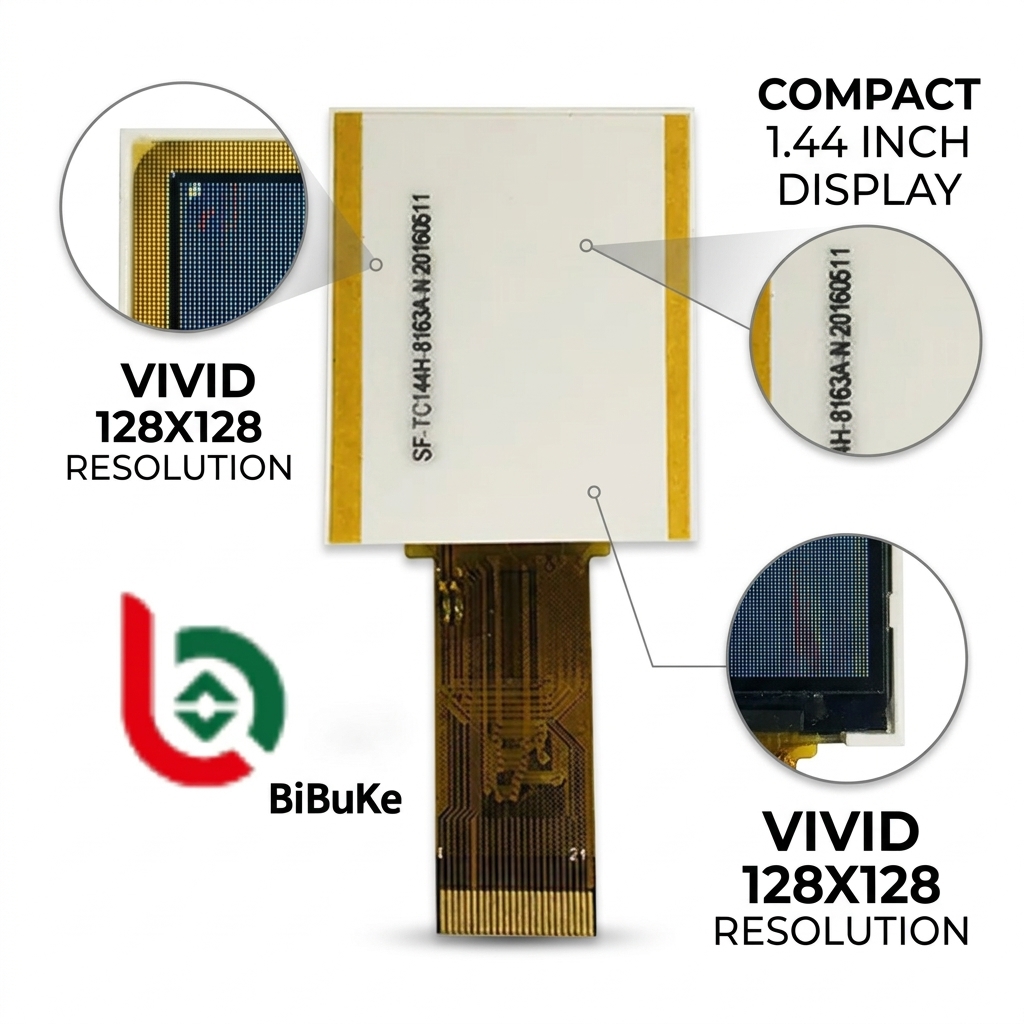

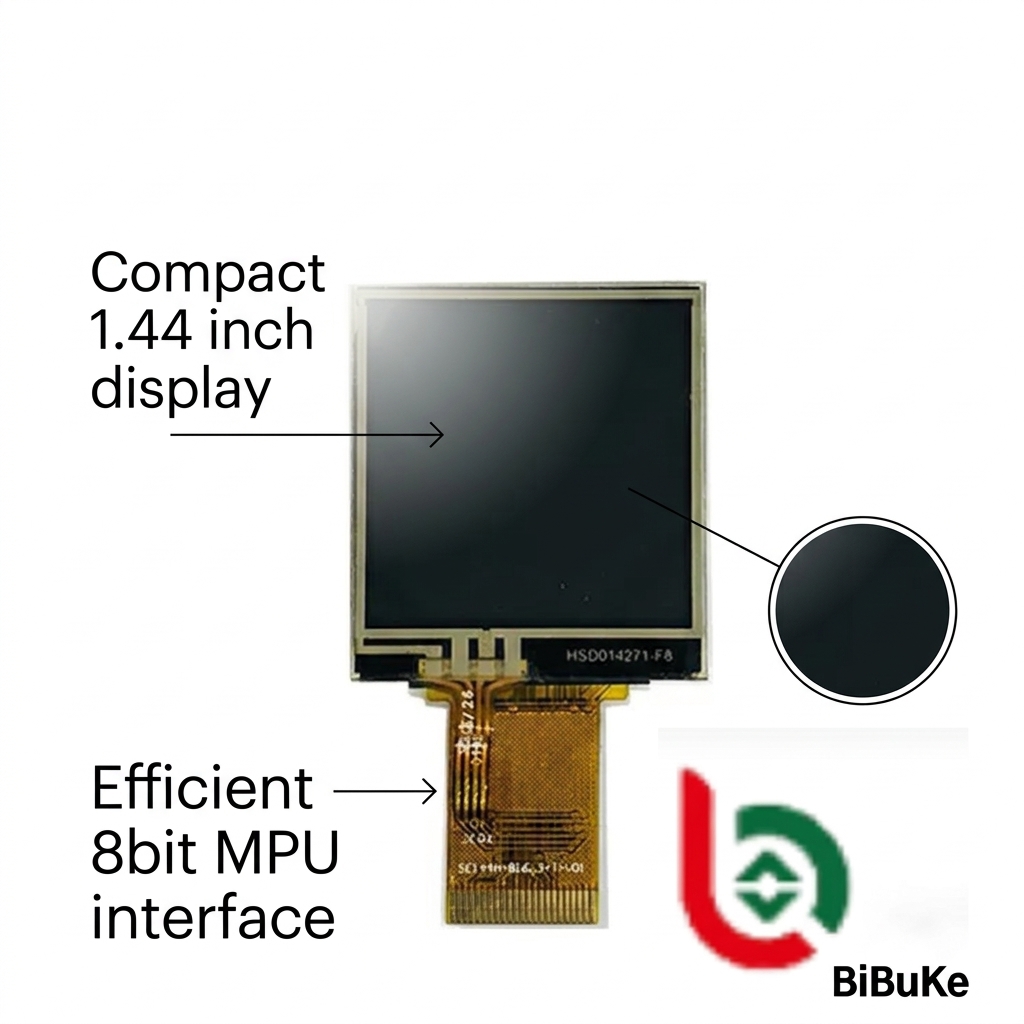

This compact color thin-film transistor (TFT) display module features a 1.44-inch diagonal size with a 128*128 square pixel arrangement and near 1:1 aspect ratio for a visually balanced appearance. The core interface utilizes an 8-bit MPU parallel interface, typically paired with ST7735S driver IC, enabling direct and efficient communication with microcontrollers and embedded systems without complex conversion circuits.
Operating at 3.3V low voltage with excellent power consumption control, this display is ideal for battery-powered devices. It maintains industrial-grade stability across an operating temperature range of -20°C to 70°C, with brightness typically between 300-500 cd/m². Some models support sunlight visibility and can be customized with resistive or capacitive touch functionality. The flexible printed circuit board connection enables installation in narrow spaces while reducing overall device size.
Capable of displaying 65K true colors, this screen clearly presents icons, text, line graphs, simple graphics, and low-resolution images, offering a cost-effective display solution that balances quality and performance for small devices.
Core Applications
- Smart Wearable Devices: Children's phone watches, sports wristbands, retro smart watches for displaying time, steps, heart rate, and notifications
- Industrial Control and Instrumentation: Portable sensors, PLC panels, temperature/humidity/pressure monitors, handheld inspection instruments
- Medical Health Devices: Home blood glucose/lipid testers, portable pulse oximeters, small therapeutic devices
- Consumer Electronics and Maker Projects: Miniature handheld game consoles, Bluetooth speaker displays, smart home control panels, Arduino/Raspberry Pi display modules
- Compact Vehicle Displays: Tire pressure monitors, vehicle meters, dashcam auxiliary displays
