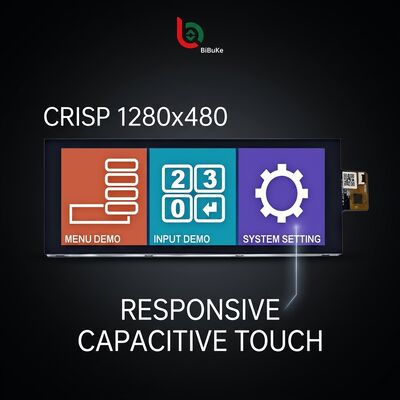

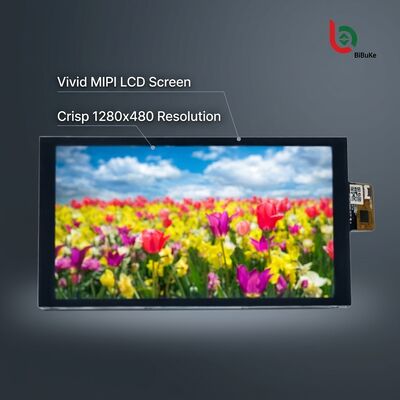

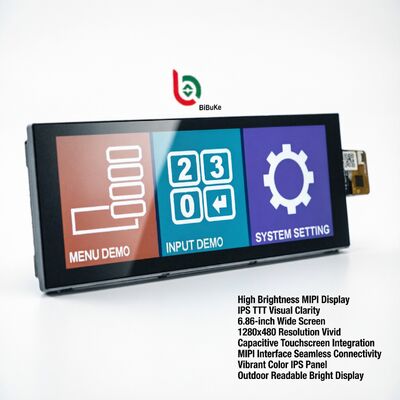

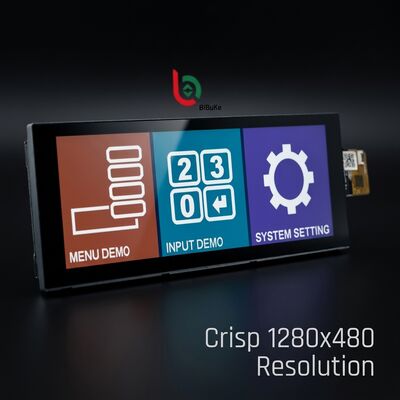

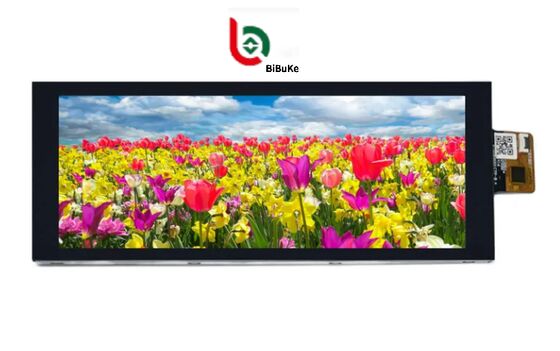

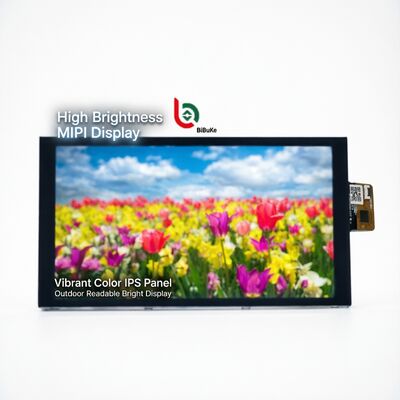

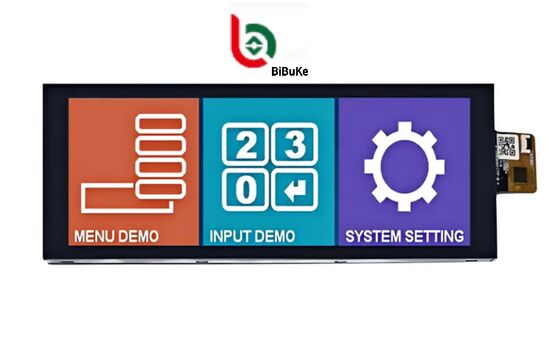

6.86-Inch High Brightness 800 cd/m² 1280*480 Dots MIPI LCD Module with IPS TFT Screen and CTP

1000
MOQ
0.7-7USD
Price
6.86-Inch High Brightness 800 cd/m² 1280*480 Dots MIPI LCD Module with IPS TFT Screen and CTP
Features Gallery Product Description Chat Now
Features
Specifications
Viewing Direction: All
Screen Type: TFT LCD
Operating Temperature: -20°C To 70°C
Aa Size: 60.19*160.51
Backlight Technology: LED
Backlight: 12-LEDs (white)
Brightness: 800 Cd/m²
Dimensions: 66.6*181.0*6.9
Highlight:

6.86-Inch TFT LCD Display

,

High Brightness 800 cd/m² IPS TFT Screen

,

1280*480 Dots MIPI LCD Module
Basic Infomation
Place of Origin: China
Brand Name: BBI
Certification: ISO9001 RoHS
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 3-4WEEKS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Product Description
6.86-Inch High Brightness 1280*480 MIPI Interface with CTP IPS TFT LCD Display
High-performance color display module featuring IPS technology and integrated capacitive touch screen for industrial and automotive applications.
Technical Specifications
Item Contents Unit
LCD Type TFT -
Display color 16M
Viewing Direction ALL O'clock
Operating temperature -20~+70 ℃
Storage temperature -30~+80 ℃
Module size 66.6*181.0*6.9 mm
Active Area(W*H) 60.19*160.51 mm
Number of Dots 1280*RGB*480 dots
Power Supply Voltage 3.3 V
Backlight 12-LEDs (white) pcs
Brightness(LCM) 800 cd/m²
Data Transfer MIPI -
LCM Connector Type AFC30-S40FCC-00 0.5PITCH 40pin
Driver IC FL7707
CTP IC GT911
Product Overview
This high-performance color display module utilizes IPS (planar conversion) technology with TFT liquid crystal architecture. Featuring a resolution of 1280*480 pixels and a display area of approximately 160.6*60.2mm, this strip-shaped screen integrates capacitive touch screen (CTP) supporting multi-point touch with sensitive operation. The MIPI DSI interface provides high-speed data transfer with low power consumption and strong anti-interference capabilities, making it suitable for mainstream embedded processors and vehicle/handheld solutions.
Performance Characteristics
  • High brightness: 500-800 cd/m² (some models reaching 1000 cd/m²) for clear visibility in strong outdoor light
  • 16.7 million colors with approximately 800:1 contrast ratio
  • IPS technology provides full viewing angle (80°+ in all directions) without color deviation
  • Operating voltage: 3.3V with backlight and touch module compatibility at 2.8-3.3V
  • Operating temperature: -20℃ to +70℃ for industrial and vehicle environments
  • FPC flexible wiring (40pin) for flexible installation and space optimization
Key Applications
  • Automotive Electronics: Car central control sub-screens, dashboard side information displays, RV/truck navigation status bars
  • Industrial Equipment: Handheld barcode scanners, logistics PDAs, HMI operation panels, warehouse electronic tags
  • Medical Terminals: Portable monitors, ultrasound diagnostic equipment displays
  • Smart Home & Commercial: Smart refrigerator displays, building intercom panels, retail information screens
  • Transportation & Outdoor: Shared bike/charging station status screens, bus stop/subway route indicators
6.86-Inch High Brightness 800 cd/m² 1280*480 Dots MIPI LCD Module with IPS TFT Screen and CTP 0 6.86-Inch High Brightness 800 cd/m² 1280*480 Dots MIPI LCD Module with IPS TFT Screen and CTP 1
Frequently Asked Questions
I want the LCD display 8 digits and the outline size is 65x30x2.8mm. Is this possible?
Yes, we can accommodate custom specifications. Please provide your detailed specifications or drawing. If you don't have specifications, we can recommend suitable standard products or customize based on your requirements.
This LCD is what we want, but it's too large. Do you have smaller sizes? We also need to modify the display content slightly.
For segment type LCD modules requiring size modifications or display content changes, we can create new LCD glass modules with custom tooling.
This LCD display is HTN type, but I want STN type. Can you make this change?
Yes, we can modify the display type according to your requirements.
I want to customize a new LCD module. Can you do this?
Absolutely. Please provide your drawing or specifications including outline size, glass thickness, polarizer type, display type, connector mode, temperature ranges, supply voltage, viewing direction, and drive conditions.
What is the lead time for tooling?
Typically 15 to 25 days after drawing confirmation and tooling charge payment. We will provide exact timelines upon drawing approval.
Can you send samples for evaluation?
Yes, sample orders are available for testing and evaluation.
What is the production lead time?
For standard products in stock, lead time is one day after payment. For mass production of custom products, lead time is approximately 15-30 days. We will notify you if we can complete orders earlier.
