7.6-Inch High Brightness 1000 cd/m² IPS Square TFT LCD Display with 800x800 Resolution and MIPI Interface

1000
MOQ
0.7-7USD
Price
7.6-Inch High Brightness 1000 cd/m² IPS Square TFT LCD Display with 800x800 Resolution and MIPI Interface
Features Gallery Product Description Chat Now
Features
Specifications
Viewing Direction: Free
Outline Size: 142.56 (H)*148.24 (V)*5.1(D)
Storagetemperature: -30°C To 80°C
Touchscreen: Optional Capacitive Or Resistive Touch
Backlight Technology: LED
Luminance: 1000 Cd/m2
Display Technology: TFT LCD
Size: 7.6 Inch
Highlight:

7.6-Inch TFT LCD Display

,

High Brightness 1000 cd/m2 IPS TFT Screen

,

MIPI Interface LCD Module
Basic Infomation
Place of Origin: China
Brand Name: BBI
Certification: ISO9001 RoHS
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 3-4WEEKS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Product Description
7.6-Inch High Brightness IPS Square TFT LCD Display
800*800 Resolution with MIPI Interface
Product Specifications
Item Specification Unit
LCD Size 7.6 inch
Display Mode Normally Black --
Resolution 800(RGB)*800 Pixel
Pixel Pitch 36.5(H) * 109.5(V) μm
Pixel Arrangement RGB Vertical Stripe
Viewing Direction Free -
Module Outline Dimension 142.56(H) * 148.24(V) * 5.1(D) mm
LCD AA 135.36(H) * 135.36(V) mm
Colors 16.7M -
Interface MIPI -
Operating Temperature -20℃ ~ +70℃ -
Storage Temperature -30℃ ~ +80℃ -
Outline Drawing
7.6-Inch High Brightness 1000 cd/m² IPS Square TFT LCD Display with 800x800 Resolution and MIPI Interface 0
Product Core Features
  • High-brightness rectangular display module designed for outdoor and industrial environments
  • IPS (planar conversion) technology with 1:1 800*800 pixel square display
  • Effective display area: 135.36*135.36mm
  • Compact structure with only 5.1mm thickness for easy integration
  • 1000 cd/m² (nits) typical brightness for clear visibility in direct sunlight
  • 16.7 million colors with accurate color reproduction
  • 85°/85°/85°/85° full viewing angles with minimal color deviation
  • 30-pin MIPI DSI high-speed interface for efficient data transmission
  • Low power consumption compatible with ARM, RK series embedded processors
  • Common driver IC: ILI9881C
  • White LED backlight with long lifespan and strong stability
  • Wide operating temperature range: -20℃ to +70℃
Core Applications
  • Outdoor Industrial Equipment: Construction machinery panels, agricultural equipment, environmental monitoring terminals, charging station displays
  • Vehicle and Navigation: Vehicle instrument panels, yacht and fishing boat navigation displays, mobile scenario applications
  • Medical Instruments: Portable ultrasound devices, monitors, blood analyzers, medical imaging displays
  • Military and Simulation: Flight simulator MFDs, UAV ground stations, individual equipment terminals
  • Smart Terminals: Outdoor advertising machines, intelligent delivery cabinets, self-service payment terminals

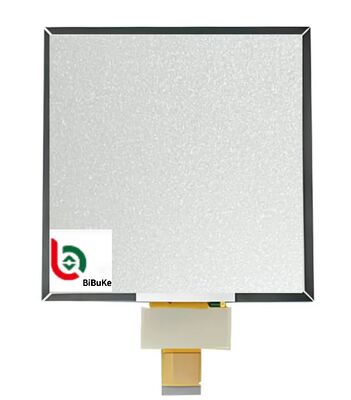

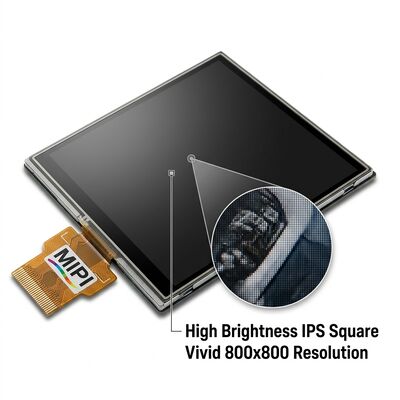

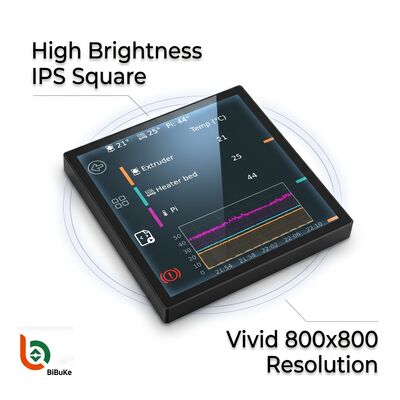

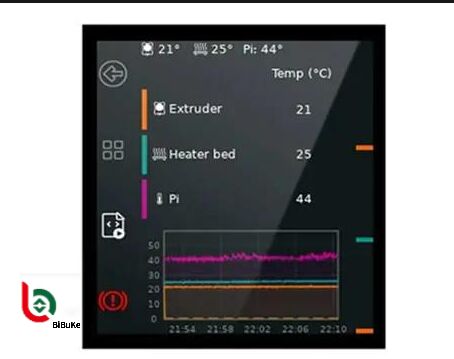

7.6-Inch High Brightness 1000 cd/m² IPS Square TFT LCD Display with 800x800 Resolution and MIPI Interface 1 7.6-Inch High Brightness 1000 cd/m² IPS Square TFT LCD Display with 800x800 Resolution and MIPI Interface 2
Frequently Asked Questions
I want the LCD display 8 digits and the outline size is 65x30x2.8mm. Is this possible?
Yes, please send us your specifications or drawing. If you don't have specifications, you can provide samples and we'll recommend suitable products or customize based on your requirements.
This LCD is what we want, but it's too big. Do you have smaller sizes? Can the display content be modified?
For segment type LCD modules, modifying outline size or display content requires a new LCD glass module with custom tooling.
This LCD display is HTN type, but I want STN type. Can you make it?
Yes, we can change the display type according to your request.
I want to customize a new LCD module. Can you do this?
Yes, we can customize LCD modules. Please send your drawing or provide outline size, display information, glass thickness, polarizer, display type, connector mode, temperature ranges, supply voltage, viewing direction, and drive conditions.
What is the lead time for tooling?
Typically 15 to 25 days after drawing confirmation and tooling charge payment. We'll provide exact timing upon drawing confirmation.
Can you send samples for checking?
Yes, sample orders are available.
What is the lead time?
For standard products in stock: 1 day after payment. For mass production of special items: 15-30 days. We'll inform you if we can finish earlier.
