3.1-inch 480×800 HD, MIPI Interface, All Viewing Angle IPS TFT LCD Display Module
Product Overview

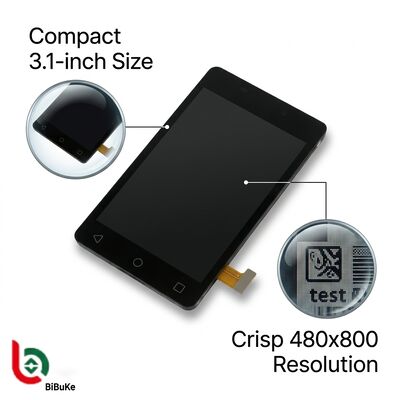

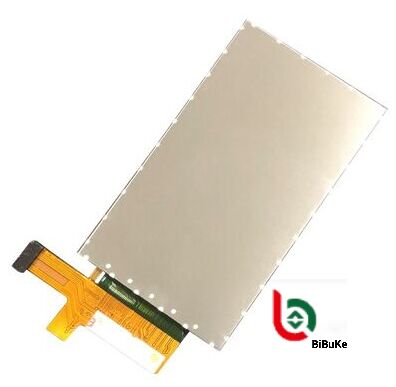

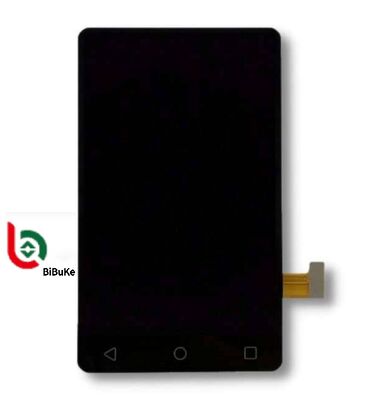

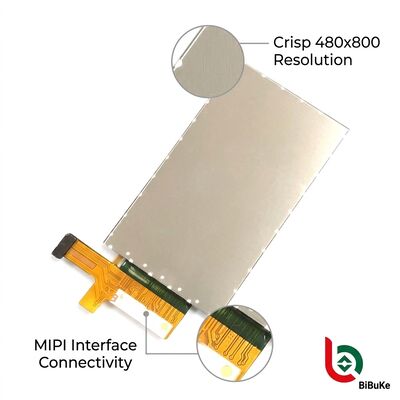

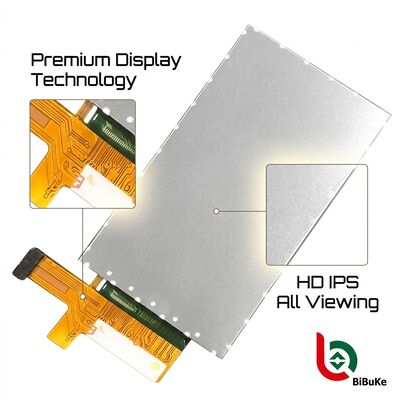

This 3.1-inch IPS TFT liquid display module is a high-performance display component specifically designed for high-definition small-screen interaction. It integrates the LCD panel, driving circuit, and backlight unit.
| Product | 3.1 Inch IPS TFT LCD |
| Resolution | 480 RGB × 800 Pixels |
| Interface | 2-lane MIPI |
| Driver IC | ST7701S |
| Brightness | 350 Cd/m² (typical) |
| Viewing Direction | 80° All Directions (CR ≥ 10) |
| Operating Temp | -20°C To +70°C |
| Touch Support | I²C Interface |
| Dimensions | 43.48 × 74.72 × 1.6mm |
| Compliance | REACH & RoHS Compliant |
Key Features
- Size and Resolution: Diagonal 3.1 inches, resolution 480×800 pixels (RGB pixel arrangement), pixel density approximately 298 PPI, capable of clearly presenting fine text, icons, and high-definition images, with display colors up to 262K.
- Panel Technology: Uses IPS (In-Plane Switching) hard panel technology, featuring full viewing angle (up to 80° on all sides), no color shift or dimming when viewed from an inclined angle, and excellent color and brightness consistency.
- Interface and Driver: Standard 2-channel MIPI interface, high-speed and stable data transmission, compatible with mainstream main control platforms; the driver chip commonly used is ST7701S, precise control and strong compatibility.
- Brightness and Power Consumption: Typical brightness 350 nits, clear visibility in indoor, weak light, and outdoor environments; operating voltage 2.4V-3.3V (typical 2.8V), low power consumption design, suitable for battery-powered devices.
- Structure and Characteristics: The module is thin and lightweight (thickness approximately 2.0mm), uses FPC flexible ribbon cable connection, can be customized with capacitive/resistive touch screens, wide temperature compatibility, and strong stability.
Main Applications
- Smart handheld terminals: Used in handheld barcode scanners, portable data collectors, smart POS machines, industrial PDAs, etc., it clearly displays the operation interface, data list and barcode information. The MIPI interface ensures smooth touch and display response.
- Industrial control and instruments: Suitable for industrial sensors, PLC human-machine interfaces, power monitoring instruments, process control equipment, etc. It can display real-time parameters such as temperature, pressure, and flow rate. The IPS full viewing angle is convenient for viewing from multiple angles in the workshop, with strong anti-interference and stability.
- Medical health equipment: Applied to portable blood glucose meters, electrocardiogram monitors, home blood oxygen monitors, small diagnostic devices, etc. It clearly presents measurement data and waveforms, with an intuitive interface, and low power consumption meets the requirements for long standby time.
- Vehicle-mounted and travel equipment: Used as vehicle auxiliary display screens, driving recorders, GPS navigation secondary screens, motorcycle instruments, etc. The 350 nits brightness can cope with changes in interior lighting, and the full viewing angle enhances safety for passengers and drivers to view.
- Smart home and consumer electronics: Embedded in smart door locks, video intercoms, home control terminals, smart remote controls, small speaker displays, etc., it shows status, time and interaction menus, enhancing the interaction experience of home devices.
- Internet of Things and security equipment: Suitable for portable security testing instruments, access card readers, small monitoring camera configuration screens, IoT collection terminals, meeting both stable outdoor and indoor display requirements and quick configuration needs.
