0.85 Inch Square Type With MCU Interface TFT LCD Display
Product Overview
| Product: | 0.85" Inch Tiny TFT IPS | Resolution: | 128x128 Pixels |
|---|
| Driver IC: | NV3023A Or Equivalent | Outline Dim.: | 17.6 X 20.6 X 1.45 Mm |
|---|
| Touch Screen: | Without Touch (Resistive And PCAP Touch Optional) | Cover Glass Dimension: | Customizable |
|---|
| Viewing Direction: | All Viewing Angles IPS | Interface: | MCU 8 Bits (customizable) |
|---|
| Connection: | Soldering Type (can Be Customized) | Pin Number: | 28 Pins (Customizable) |
|---|
| Surface Luminance: | 350 Cd/m2 (nits) | Backlight Type: | White LED |
|---|
Product Introduction

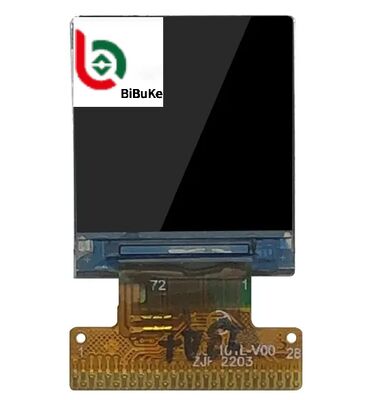

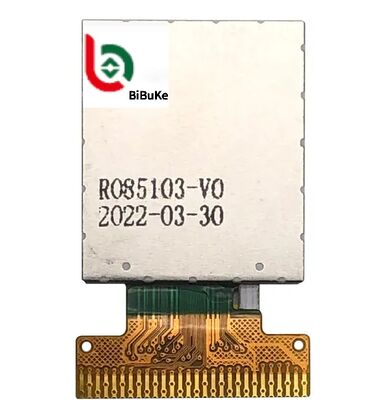

0.85-inch square TFT liquid crystal display (with single-chip microcontroller interface) is a small-sized color liquid crystal display module specifically designed for embedded systems. The core adopts IPS-TFT panel technology and is equipped with common communication interfaces for single-chip microcontrollers (MCU).
Core Parameters and Features
- Size: Physical size 0.85 inches (square), shape approximately 17.6×20.6mm, display area 15.2×15.2mm
- Resolution: 128×128 pixels, square dot matrix, clear and detailed display
- Color: 65K colors (RGB 16 bits), bright colors, good color reproduction
- Panel type: IPS full-view, viewing angles from top, bottom, left, and right approaching 180°, no color shift or color change
- Driver and interface: Built-in GC9107, ST7735, or NV3023 etc. driver chips; supports 8-bit MCU parallel interface or 4-wire SPI serial interface, can be directly connected to mainstream MCUs such as STM32, Arduino, ESP32, 51 microcontroller, etc.
- Electrical characteristics: Working voltage 2.4V-3.3V, low power consumption; white LED backlight, brightness about 300-450 cd/m², clear visibility both indoors and outdoors
- Structure: Thin module (thickness approximately 1.45mm), FPC flexible ribbon cable connection, supports soldering or socket connection
Main Applications
Due to its small size, full viewing angle, low power consumption, and easy driving characteristics, it is widely used in various compact intelligent devices and portable products:
Smart Wearable Devices
- Smart wristbands and watches: Display time, heart rate, steps, message notifications and other small dial interfaces
- Bluetooth earphones charging case, smart rings: Status and battery level indicators
Healthcare Equipment
- Portable glucometer, oximeter, thermometer: Display measurement values and results
- Small hearing aids, rehabilitation devices: Parameter and mode display
Consumer Electronics and Smart Home
- Mini Bluetooth speaker, TWS earphone case: Mode, volume, battery level display
- Smart locks, cameras: Status indication and menus
- E-cigarettes, beauty devices: Working parameters and gears
Industrial and Industrial Control
- Small sensors, transmitters: Real-time data display
- Portable testers, handheld devices: Menu and results
- Internet of Things nodes (IoT): Status and simple interaction interface
Other Applications
- Cryptocurrency hardware wallet
- Toys, drone remote controllers, small instruments
Product Drawings
Our Services
- Free repair within one year after the shipment of products from us
- Replacement within 30 days after the shipment of products from us due to products' problems
- We can print your logo and stick your model No. on the cameras
- We have long cooperation with many shipping companies and our export volume is large. The shipping companies can offer us good discounts
- Professional technician supports. We have a good after-sales service team. They can solve your problems in time
- All goods will be inspected and tested by our engineers and QC/QA before packing and shipment
- Customers satisfactory is most important to us. If you have any problem or questions regarding our transaction. Please contact us by Email or online. It will be responded within 24 hours
- Products pictures only for your reference. Please kindly refer to the specification. We can provide the products based on the specification. Or you can offer your own specification or drawing, we can customize all kinds of LCD displays for you
