Features

Specifications

Backlight Type: LED

Viewing Direction: 80° All Directions

Overall Dimensions: 59.60x47.3x3.4 Mm

Pin Number: 40 PIN

Connection: FPC Connector Type

Resolution: 480*320 Pixels

Surface Luminance: 240 Cd/m² (typical)

Displaysize: 2.6 Inches

Basic Infomation

Place of Origin: China

Brand Name: BBI

Certification: ISO9001 RoHS

Document: Product Brochure PDF

Payment & Shipping Terms

Packaging Details: CARTON

Delivery Time: 3-4WEEKS

Payment Terms: T/T

Supply Ability: 100000/MONTH

Gallery

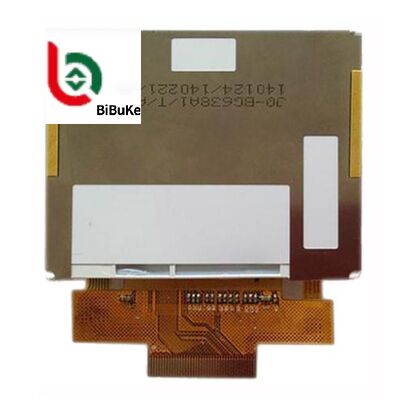

2.6 Inch 480x320 Resolution IPS TFT LCD Display with MCU Interface and RTP Touch Screen

Product Description

2.6" Inch 480x320 Landscape Mode with RTP MCU Interface IPS TFT LCD Display

Product Specifications

Product	2.6" Inch TFT LCD Display	Touch Screen	Resistive Touch Panel (RTP)
Resolution	480x320	Viewing Direction	IPS Full Viewing Angle (80/80/80/80)
Driver IC	R61531	Pin Number	40 Pins
Connection	FPC Connector Type	Surface Luminance	240 Cd/m² (nits)
Interface	MCU	LED Lifetime	40,000 Hours
Operating Temp.	-10℃ to +60℃	Compliance	REACH & RoHs Compliant

Product Drawing

Product Introduction

The 2.6" 480x320 landscape screen RTP MCU interface IPS TFT LCD display (Model: SF-TC260T-9954A-T) is a small-sized high-definition display module specifically designed for industrial and embedded equipment.

Core Specifications

Size: 2.6 inches (diagonal)
Resolution: 480×320 pixels (portrait mode)
Display Technology: IPS (hard screen wide viewing angle), full viewing angle
Interface: MCU (8/16-bit parallel), compatible with 51/STM32 and other single-chip microcontrollers
Touch Screen: RTP (resistive touch screen), supports single-point touch
Driver IC: R61531
Brightness: 240 cd/m² (customizable)
Operating Temperature: -20°C ~ +70°C
Dimensions: 59.60×47.3×3.4 mm

Main Features

IPS Wide Viewing Angle: Viewing angles in all directions (up, down, left, right) are all ≥ 80°. Colors are true without color bias.
MCU Interface: Directly connects to microcontroller, no additional graphics card required. Simple development and low cost.
Resistive Touch: Supports finger and stylus operations. Strong anti-interference ability suitable for industrial environments.
High Cost Performance: Small size, high resolution, low power consumption. Suitable for embedded scenarios.

Applications

Industrial Control Equipment: Human-machine interface (HMI), PLC control panel, industrial instruments, data collector
Smart Home / IoT Terminal: Smart thermostat, access control panel, kitchen appliances, smart speaker display
Medical / Portable Equipment: Portable detector, blood glucose meter, electrocardiogram monitor, medical handheld terminal
Consumer Electronics / Automotive: Handheld game console, portable navigation, vehicle instrument, smart wearable device
Instrumentation / Testing Equipment: Scope generator, multimeter, analyzer, experimental equipment display panel

Frequently Asked Questions

I want the LCD display 8 digits and the outline size is 65x30x2.8mm. Can you provide this?

Yes, we can customize based on your requirements. Please send us your specification/drawing paper. If you don't have specifications, you can provide samples and we'll recommend suitable products or customize according to your needs.

This LCD is just what we want, but it is big size. Do you have any smaller size? And the display content needs to be changed a little.

For segment type LCD modules, if you need to modify the outline size or display content, a new LCD glass module is required. We can create new tooling for you.

This LCD display is HTN type, but I want STN type. Can you make it?

Yes, we can change the display type according to your request.

I want to customize a new LCD module. Can you do this?

Yes, we can customize LCD modules. Please send your drawing paper. If you don't have one, please provide the outline size, display information (glass thickness, polarizer, display type, connector mode, storage temperature, operating temperature, supply voltage, viewing direction, drive condition).

What is the lead time for tooling?

Typically 15 to 25 days after drawing paper confirmation and tooling charge payment. We'll provide exact timing when you confirm the drawing paper.

Can you send us samples for checking?

Yes, sample orders are available.

What is the lead time?

For standard products in stock: 1 day after payment. For mass production of special products: approximately 15-30 days. We'll inform you in advance if we can finish earlier.

Our Services

Free repair within one year after product shipment
Replacement within 30 days after product shipment due to product problems
Custom printing of your logo and model number on products
Professional shipping partnerships with competitive discounts
Professional technical support and responsive after-sales service team
All goods inspected and tested by engineers and QC/QA before shipment
24-hour response time for customer inquiries and issues
Full customization services for all types of LCD displays
