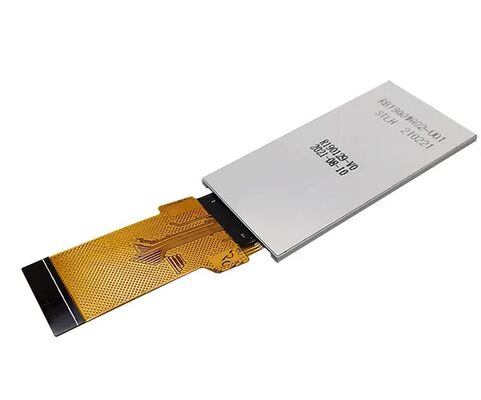

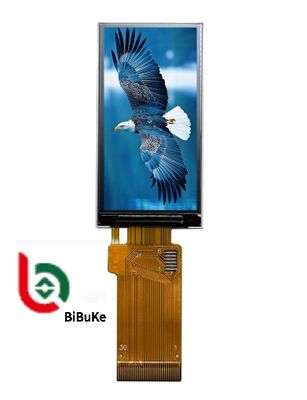

1.9 Inch 170x320 With ST7789V SPI RGB Interface Touch TFT Display
1.9 Inch 170x320 With ST7789V SPI RGB Interface Touch TFT Display
Product Specifications
| Product: |
1.9"inch TFT |
Touch Screen: |
Capacitive Touch Panel (CTP) |
| Resolution: |
170 X 320 |
Viewing Direction: |
IPS Full Viewing Angle(80/80/80/80) |
| Interface: |
SPI / RGB |
Outline Dimension: |
25.8 X 49.72 X 1.43 Mm |
| Active Area: |
42.72 X 22.7 Mm |
Driver IC: |
ST7789V Or Equivalent |
| Pin Number: |
30 Pins |
Connection: |
Plugging (can Be Customized) |
| Surface Luminance: |
350 Cd/m2 (nits) |
LED Lifetime: |
40,000 Hours |
Technical Drawing
Product Introduction
This 1.9-inch TFT touch display is a small, cost-effective color display module with the following core parameters:
- Size: 1.9 inches (diagonal)
- Resolution: 170 (RGB) × 320 pixels (vertical strip shape)
- Driver IC: ST7789V (built-in memory, supports SPI/RGB interfaces)
- Display type: IPS full-view (80° viewing angle up, down, left, and right)
- Color: 262K colors (16-bit RGB565)
- Interface: SPI (four-wire) + RGB dual interface
- Touch: Capacitive touch screen (optional, such as CST816)
- Brightness: Approximately 500~550 cd/m² (outdoor visibility)
- Operating voltage: 3.3V (compatible with 5V logic level)
Main Features
- SPI Interface: Only 4 wires (SCLK, MOSI, CS, DC) are needed, saving MCU pins and compatible with Arduino, ESP32, STM32, etc.
- High brightness + IPS: Outdoor visibility, full viewing angle, good color reproduction
- Built-in GRAM: ST7789V comes with built-in memory, reducing the burden on the main controller
- Low power consumption: Suitable for battery-powered devices (smart wearables, handheld instruments)
- Touch option: Capacitive touch (I2C interface), supporting touch interaction
Typical Applications
- Smart wearable devices: Smart watches, bracelets, health monitors
- Handheld instruments: Oxygen meters, blood glucose meters, temperature guns, translation pens
- IoT terminals: Smart home panels, sensor displays, environmental monitoring equipment
- Industrial control: Small HMI, PLC human-machine interface, equipment status screens
- Consumer electronics: Mini game consoles, desk ornaments, electronic photo frames
- DIY / Education: Arduino/ESP32 projects, embedded development learning
Application Advantages
- Small size, high resolution: 170×320 pixels displayed clearly on a 1.9-inch screen
- Flexible interfaces: SPI (low speed) / RGB (high speed) dual selection
- Friendly development: Mature driver libraries for Arduino/ESP32/Raspberry Pi (Adafruit, LVGL)
- Low cost: Suitable for mass production and batch applications
Frequently Asked Questions
1. I want the LCD display 8 digits and the outline size is 65x30x2.8mm?
No problem. Firstly, please kindly send us your specification/drawing paper. If you have not the specification, you can also provide your samples; we will recommend the suitable one if it is standard products. Or we can customize for you based on your own requirement.
2. This LCD is just what we want, but it is big size, do you have any smaller size? And the display content need to be changed a little.
For the segment type LCD module, if you need modify the outline size or display content, a new LCD glass module is need. We have to open new tooling for you.
3. This LCD display is HTN type, but I want STN type, can you make?
That's all right. We can change for you as per you request.
4. I want customize a new LCD module. Can you do?
Yes, we can. Please send your drawing paper. If you have not, please advise me the outline size of the LCD display, display information (Glass thickness, Polarizer, Display Type, Connector mode, Storage Temp. Operating Temp. Supply Voltage, Viewing direction, drive condition), we can customize for you.
5. What is leading time for tooling?
General speaking, it will cost 15 to 25 days after drawing paper confirmation and tooling charge payment, we can report you the exact time when you confirm the drawing paper.
6. Can you send us samples for checking?
Yes. Samples order is available.
7. What is the Leading Time?
If we have stock for the standard ones, the leading time is one day after payment. If it is the mass production for special ones, the leading time is about 15-30 days. Suppose we can finish earlier, we will report the information in advanced.
