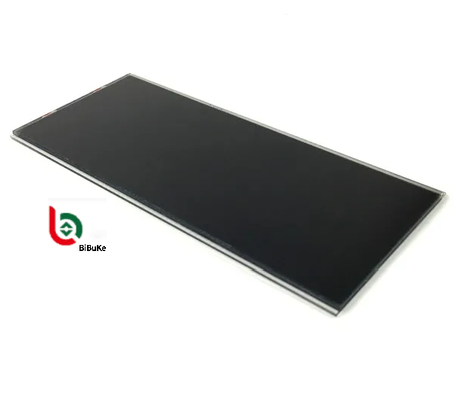

Ultra Wide Operating Temperature TN Negative Transmissive LCD Display
Product Overview
Ultra Wide Operating Temperature TN Negative Transmissive LCD Display
Technical Specifications
| Product |
Custom VA TN LCD |
| Glass |
VATN, Positive, Transmissive |
| Driving Condition |
1/8 Duty Cycle, 1/4 Bias |
| Operating Voltage |
5V |
| Optics |
All Viewing Angles (85/85/85/85) |
| Outline Dimensions |
98.0 X 38.0 X 2.80 mm |
| Viewing Area |
94.0 X 30.5 mm |
| Backlight |
Customizable |
| Operating Temperature |
-40°C To +85°C |
| Storage Temperature |
-45°C To +90°C |
| Operating Frequency |
75 Hz |
| Compliance |
REACH & RoHS Compliant |
TN LCD Advantages
TN LCD (Twisted Nematic LCD) are constructed of two pieces of ITO (Indium tin oxide) glass with a twisted nematic fluid sandwiched in between. These displays remain one of the most popular technologies in use, with the majority being custom designs. Key advantages include:
- Lowest Unit Price
- Lowest Tooling Charge
- Lowest Power Consumption
- Sunlight Readable
- Ultra Wide Operating Temperature
- Customized Differential Outline Shape
- Continuous Supply for More Than 10 Years
VA TN Display Features
VATN LCD is featured with wide viewing angle and high contrast. Key advantages include:
- Super high contrast ratio: can be up to 120:1
- Wide viewing angle: around 170(H) 110(V)
- Mode: Negative mode only
- Available Backlight: white/green/yellow-green/red/blue
- High backlight brightness
- Four colors silk ink of custom design optional
- Replaceable for DFSTN and Black Mask
Main Applications
Industrial Control (HMI/PLC)
Human-machine interface, equipment operation screens, data terminals in high-temperature / low-temperature / dusty environments such as steel furnace monitoring, outdoor base station control boxes.

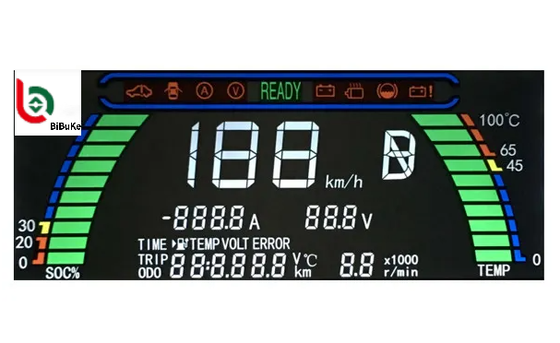

Vehicle Display (Pre-installed / Post-installed)
Car central control, instrument panel, construction machinery (excavators / cranes), special vehicles (cold chain vehicles / fire engines), adapted to -30℃ extreme cold to +85℃ intense sunlight, shock-resistant and temperature difference-resistant.
Outdoor and Special Terminals
Outdoor instruments and meters, meteorological monitoring, geological exploration, medical equipment (low-temperature refrigerators / portable detectors), navigation equipment, military handheld terminals, requiring stable display at all times.
Commercial and Embedded Devices
Self-service terminals (ATM / ticket vending machines), smart home appliance control panels, security monitoring displays, industrial notebooks, suitable for non-temperature-controlled environments, low power consumption and long lifespan.
Frequently Asked Questions
I want the LCD display 8 digits and the outline size is 65x30x2.8mm. Is this possible?
No problem. Please send us your specification or drawing. If you don't have specifications, you can provide samples; we will recommend suitable products if they are standard, or we can customize based on your requirements.
This LCD is what we want, but it's too big. Do you have smaller sizes? The display content also needs minor changes.
For segment type LCD modules, if you need to modify the outline size or display content, a new LCD glass module is required. We will need to create new tooling for you.
This LCD display is HTN type, but I want STN type. Can you make it?
That's all right. We can change the type according to your request.
I want to customize a new LCD module. Can you do this?
Yes, we can. Please send your drawing. If you don't have one, please provide the outline size of the LCD display, display information (glass thickness, polarizer, display type, connector mode, storage temperature, operating temperature, supply voltage, viewing direction, drive condition), and we can customize for you.
What is the lead time for tooling?
Generally, it takes 15 to 25 days after drawing confirmation and tooling charge payment. We will provide the exact timeline when you confirm the drawing.
Can you send us samples for checking?
Yes, sample orders are available.
What is the lead time?
If we have stock for standard products, lead time is one day after payment. For mass production of special orders, lead time is about 15-30 days. If we can finish earlier, we will notify you in advance.
Our Services
- Free repair within one year after product shipment from us
- Replacement within 30 days after product shipment due to product problems
- We can print your logo and stick your model number on the products
- Long-term cooperation with shipping companies offering good discounts due to large export volume
- Professional technical support with experienced after-sales service team
- All goods inspected and tested by engineers and QC/QA before packing and shipment
- Customer satisfaction is our priority - contact us by email or online for responses within 24 hours
- Product pictures are for reference only - please refer to specifications or provide your own for customization
