White Blue Backlight VATN Monochrome LCD Screen

White Blue Backlight VATN Monochrome LCD Screen

Description

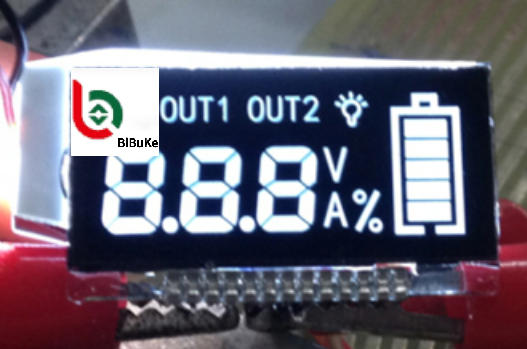

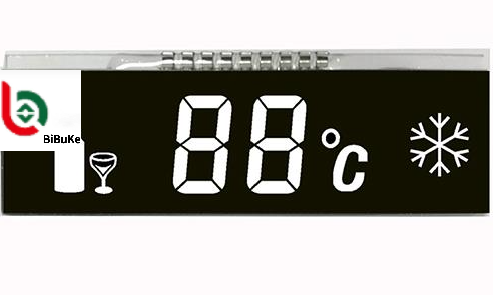

White and blue backlit VATN single-color LCD screen. The core technology is VATN (Vertical Alignment TN) liquid crystal technology. It is a negative display single-color screen. The typical visual effect is black background with white characters / blue background with white characters. It is equipped with white or blue LED backlight, featuring high contrast and sharp text.

Core principle: When the power is off, the liquid crystal molecules are arranged vertically, forming a pure black background; when the power is on, the molecules rotate to allow light to pass through, presenting clear white text and graphics. No crossed polarizers are needed, and there are no ghost images or wide viewing angles.
Optical properties: The contrast ratio can reach 120:1 to 1000:1. The horizontal viewing angle is approximately 170°, and the vertical viewing angle is approximately 110°. The backlight can be either pure white or ice blue. It is clearly visible in both low light and strong light conditions.
Electrical and environmental: The working voltage is 3.0 to 5.0V, with low power consumption. The temperature range is **-30℃ to 85℃**, suitable for harsh industrial and vehicle environments.
Form and interface: Common segment display screens, character screens (16×2/20×2), and graphic screens (128×64); the interfaces are mostly COB/COG, SPI/I2C/MCU. The size is small and easy to embed.

Main purpose

Industrial Control: PLC, frequency converters, temperature controllers, instruments and meters, display parameters, status and alarm codes.
Household Appliances: Refrigerators, air conditioners, washing machines, microwave ovens, display temperature, mode, timing, etc.
Vehicle Electronics: Dashboard, central control screen, tire pressure monitoring, compatible with vehicle scenarios in wide temperature and wide viewing angle.
Consumer Electronics: Blood glucose meters, electronic scales, chargers, handheld devices, low power consumption, high cost performance.
Office and Commercial: Attendance machines, cash registers, elevator displays, clear and legible, long-term stable.

Product Feature Summary

✅ High Contrast: Black background with white text, sharp and clear, far exceeding traditional STN/FSTN.
✅ Ultra-Wide Viewing Angle: 170° horizontal, 110° vertical, no distortion at multiple viewing angles.
✅ Low Power Consumption: LED backlight + low voltage driving, friendly for battery-powered equipment.
✅ Wide Temperature Stability: -30℃~85℃, reliable operation in industrial / vehicle environments.
✅ Cost Advantage: Performance close to OLED but lower cost, suitable for mass production equipment.

Our Services:

1. Free repair within one year after the shipment of products from us.

2. Replacement within 30 days after the shipment of products from us due to products' problems.
3. We can print your logo and stick your model No.on the cameras.
4. We have long cooperation with many shipping companies and our export volume is large. The shipping companies

can offer us good discounts.
5. Professional technician supports. We have a good after-sales service team. They can solve your problems in time.
6.All goods will be inspected and tested by our engineers and QC/QA before packing and shipment.
7.Customers satisfactory is most important to us.If you have any problem or questions regarding our transaction.Please contact us by Email or online. It will be responded within 24 hours.

8.Products pictures only for your reference. please kindly refer to the specification. we can provide the products basic on the specification. or you can offer your own specification or drawing , we can customize all kinds of LCD displays for you. thanks for your kind support always.

FAQ:

1. I want the LCD display 8 digits and the outline size is 65x30x2.8mm………?

Answer: No problem. Firstly, please kindly send us your specification/ drawing paper

If you have not the specification, you can also provide your samples; we will recommend the suitable one

 if it is standard products. Or we can customize for you based on your own requirement.

2.This LCD  is just what we want, but it is big size, do you have any smaller size? And the display content need to be changed a little.
      Answer: For the segment type LCD module, if you need modify the outline size or display content,

a new LCD glass module is need. We have to open new tooling for you.

3. This LCD display is HTN type, but I want STN type,can you make?
      Answer: That’s all right .  we can change for you as per you request.

4. I want customize a new LCD module. Can you do?
      Answer: Yes, we can. Please send your drawing paper. If you have not, please advise me the outline size

of the LCD display, display information( Glass thickness, Polarizer, Display Type, Connector mode,
Storage Temp. Operating Temp.  Supply Voltage, Viewing direction, drive condition), we can customize for you.

5. What is leading time for tooling?
      Answer: General speaking, it will cost 15 to 25 days  after drawing paper confirmation and tooling charge payment,

we can report you the exact time when you confirm the drawing paper.

6. Can you send us samples for checking?
     Answer: Yes,. Samples order is available.

7. What is the Leading Time?
    Answer: If we have stock for the standard ones, the leading time is one day after payment. If it is the mass production for

special ones, the leading time is about 15-30 days. suppose we can finish earlier,  we will report the information in advanced.
