3-inch TFT LCD Display Module, 360x640 RGB IPS Panel, ST7701S Driver, Wide Temperature

3-inch TFT LCD Display Module, 360x640 RGB IPS Panel, ST7701S Driver, Wide Temperature

Product Introduction

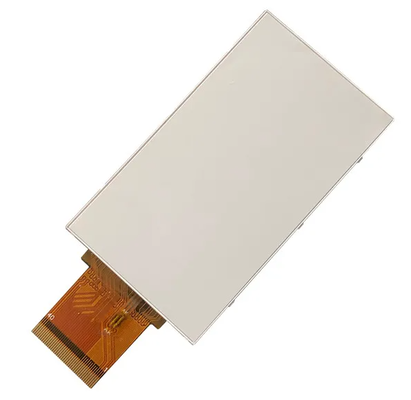

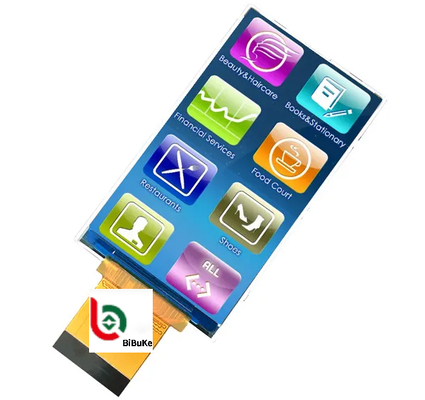

This is a 3-inch TFT liquid crystal display module, featuring a 360×640 resolution RGB IPS panel and equipped with the ST7701S driver IC. It has a wide temperature operating range and is a high-performance display solution for industrial, medical, and portable devices.

Core Specifications:

Size: 3 inches (vertical screen 9:16), shape approximately 42.64×74.51×2.35mm, effective display area 36.72×65.28mm.
Resolution: 360 (RGB) × 640 pixels, IPS wide viewing angle (up, down, left, right 170° visible), excellent color reproduction.
Driver and Interface: ST7701S driver IC, supports 24bit RGB/MIPI dual interface, compatible with mainstream controllers, simplifies hardware design.
Brightness and Contrast: Typical 300–600cd/m², contrast 1200:1, backlight 6 white LEDs.
Wide Temperature Characteristics: Working temperature -20℃~+70℃, storage -30℃~+80℃, suitable for harsh industrial/outdoor environments.
Optional Configurations: Capacitive/resistive touch screen, supports custom backlight brightness, FPC pin definition.

Main Applications

Industrial Control: Handheld terminals, data collectors, equipment control panels, high resolution capable of simultaneously displaying multiple sensor data and GUI.
Medical Equipment: Portable monitors, blood glucose meters, medical testing instruments, meeting low power consumption, high reliability and wide temperature requirements.
Smart Wearables and Portable Devices: Smart watches, sports trackers, portable navigators, handheld game consoles, vertical screen adaptation and low power adaptation to battery-powered scenarios.
Consumer Electronics: Smart home control panels, video intercom doorbells, POS terminals, small printer display interfaces.
Vehicle and Outdoor: Car dash cams, tire pressure monitoring screens, outdoor instrument panels, IPS wide viewing angle and wide temperature adaptation for complex lighting and temperature environments.

Mechanical Dimensions

Pin Interface Definition
