2.4" Inch 240x320 QVGA MCU/RGB Interface With RTP TFT LCD Display
| Product: | 2.4 Inch TFT | Touch Screen: | Resistive Touch Panel (RTP) |
|---|---|---|---|
| Resolution: | 240x320 QVGA | Cover Glass: | Without(Customizable) |
| Viewing Direction: | 12 O'clock | Interface: | MCU/RGB/SPI |
| Pin Number: | 48pins | Connection: | Soldering |
| Surface Luminance: | 350 Cd/m2 | LED Lifetime: | 40,000 Hours |
Product Introduction

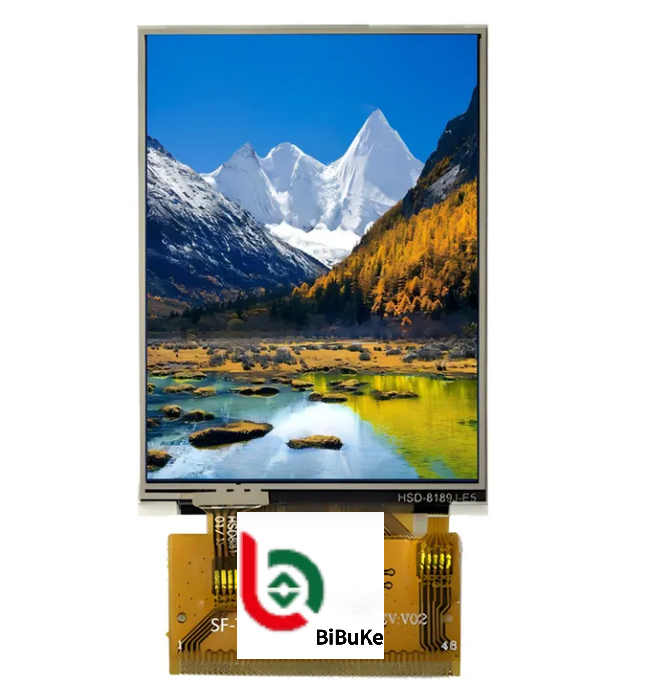

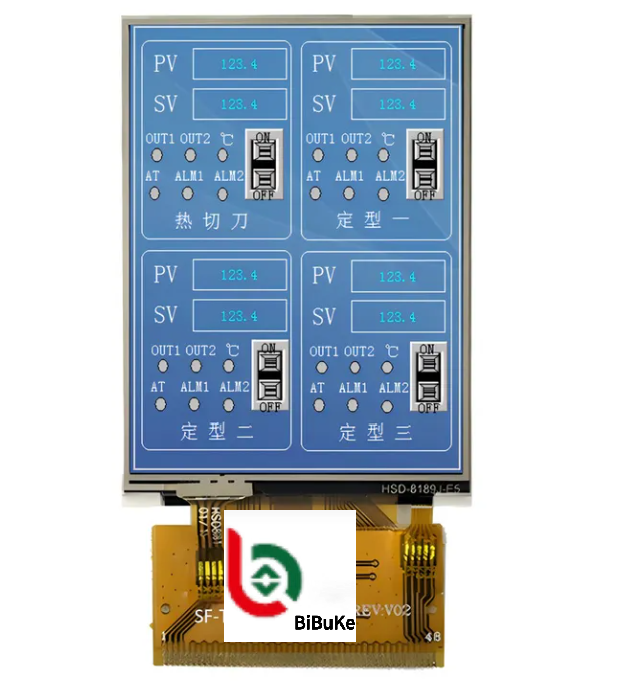

This is a 2.4-inch QVGA resolution TFT liquid crystal display module, integrating an MCU/RGB dual interface and resistive touch screen (RTP). It is a miniaturized and cost-effective color display solution for embedded systems.
Core parameters
Size: 2.4 inches (diagonal), display area 36.72×48.96mm, overall approximately 42.72×60.26×3.5mm.
Resolution: 240×320 pixels (QVGA), supports 65K/262K color display.
Interface: MCU (8/16-bit parallel) + RGB dual interface, compatible with SPI, compatible with mainstream single-chip microcontrollers such as STM32.
Touch: Built-in RTP resistive touch screen, supports pressing input, no need for additional touch chip.
Driver and Electrical: Common ST7789V/ILI9341V driver IC, 3.3V power supply, brightness 250–350cd/m², operating temperature -20℃ to +70℃.
Features: TFT thin-film transistor technology, fast response, vivid colors; onboard controller, simplifies main control development; FPC flexible ribbon cable connection, small size, easy integration.
Main purpose
Industrial control and instruments: PLC control panel, data acquisition terminal, portable detector, display parameters, status and waveforms, suitable for harsh temperature and humidity as well as vibration environments.
Consumer electronics and portable devices: Children's camera, MP4, game console, smart door lock, temperature control panel, provide interactive interface and information display, low power consumption and battery-powered adaptation.
Medical electronics: Blood glucose meter, blood pressure monitor, handheld electrocardiogram device, display measurement data, menu and waveforms, meet the requirements of miniaturization and low energy consumption.
Vehicle and security: Driving recorder, vehicle terminal, walkie-talkie, access control equipment, display status, picture and operation menu, resistant to vibration, adaptable to wide temperature range.
Embedded development and DIY: Arduino/STM32 development board, Internet of Things terminal, smart instrument prototype, rich interfaces and mature data, quickly realize visual interface.
External Dimension
![]()
Interface Pin Definition
| NO. | PIN NAME | I/O | Description |
| 1 | YU | I | Touch Panel Pin |
| 2 | XL | I | Touch Panel Pin |
| 3 | YD | I | Touch Panel Pin |
| 4 | XR | I | Touch Panel Pin |
| 5 | GND | I | Ground |
| 6 | VCI | I | Power Supply 2.8V Voltage |
| 7 | VDD3 | I | Power Supply 2.8V/ 1.8V Voltage |
| 8 | VDD3_P(NC) | - | Set Open |
| 9 | BC_CTRL(NC) | - | Set Open |
| 10 | BC(NC) | - | Set Open |
|
11 |
TE |
O |
Tearing effect output pin to synchronize MPU to frame writing, activated by S/W command. When this pin is not activated, this pin is low. |
| 12-29 | DB17-DB0 | I/O | Display Data I/O |
| 30 | SDA | I/O | Serial input signal |
| 31 | DOTLCK | I | Dot Clock Signal for RGB Interface Operation |
| 32 | ENABLE | I | Data Enable Signal for RGB Interface Operation |
| 33 | HSYNC | I | Line Horizontal Synchronizing Signal |
| 34 | VSYNC | I | Frame Vertical Synchronizing Signal |
| 35 | RDX | I | Read strobe signal input pin |
| 36 | WRX | I | Write strobe signal input pin |
| 37 | DCX | I | Register select signal |
| 38 | CSX | I | Input pin for chip selection signal |
| 39 | RESET | I | LCM Reset input signal |
| 40 | IM0 |
I |
Please refer to the fourth page, Select the MCU interface mode |
| 41 | IM1 | ||
| 42 | IM2 | ||
| 43 | IM3 | ||
| 44 | LED_A | I | LED Anode |
| 45 | LED_K1 | I | LED Cathode |
| 46 | LED_K2 | I | LED Cathode |
| 47 | LED_K3 | I | LED Cathode |
| 48 | LED_K4 | I | LED Cathode |
![]()
![]()
