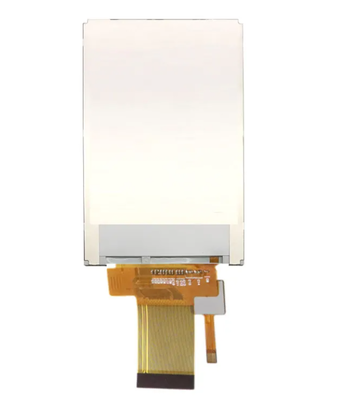

3.5 Inch With ILI9488 Capacitive Touch Panel TFT LCD Display
Product Introduction
3.5-inch ILI9488 capacitive touch panel TFT liquid crystal display is a high-integration and stable performance small-sized color display module. Its core consists of TFT liquid crystal screen + ILI9488 driver chip + capacitive touch screen, and is specially designed for embedded and intelligent devices.
- Core parameters: Screen diagonal 3.5 inches, resolution 480×320 (RGB565, 16-bit color), uses IPS wide-angle technology (up, down, left, right viewing angles approximately 60°/60°/60°/60°), backlight brightness about 300-350 cd/m², contrast 500:1, vivid colors and clear details.
- Driver and touch: LCD driver is ILI9488 (industry mainstream, stable), touch chip commonly used is GT911/FT6336, supports 5-point capacitive touch, responsive, supports multi-finger gestures, more durable and better experience than resistive screens.
- Interface and power supply: Standard SPI (4-wire) or MCU parallel port, some come with GDI plug-and-play interface; supports wide voltage of 3.3V/5V, compatible with mainstream main controllers such as Arduino, ESP32, STM32; board has MicroSD card slot, can directly read display image resources.
- Physical and environmental: Module size approximately 70.8×102.8×6.2 mm, operating temperature -20°C to 70°C, suitable for harsh industrial and outdoor environments.
Main Applications
- Home automation control: As an intelligent panel (air conditioner / lighting / window controller), IoT central control screen, it enables display of device status and touch operation.
- Industrial and instrumentation: Industrial control panel, data recorder, sensor monitoring terminal, medical equipment (portable testing instrument), displays parameters, curves and alarm information.
- Consumer electronics and DIY: Arduino/ESP32 project development, mini game console, desktop weather / event notifier, smart speaker display module, in-vehicle simple instrument panel.
- Commercial equipment: Small POS machine, cashier secondary screen, printer operation panel, security access control indoor unit, provides interactive interface and status feedback.
| Product: |
3.5" Inch TFT LCD Screen |
Touch Screen: |
With CTP |
| Capacitive Touch: |
Standard And Customized Options |
Resolution: |
320x480 Dots |
| Viewing Direction: |
12:00 |
Interface: |
MCU & SPI |
| Pin Number: |
32 Pins |
Connection: |
Plugging |
| Surface Luminance: |
300cd/m2 (nits) |
LED Lifetime: |
40,000 Hours |
Frequently Asked Questions
1. I want the LCD display 8 digits and the outline size is 65x30x2.8mm?
No problem. Firstly, please kindly send us your specification/ drawing paper. If you have not the specification, you can also provide your samples; we will recommend the suitable one if it is standard products. Or we can customize for you based on your own requirement.
2. This LCD is just what we want, but it is big size, do you have any smaller size? And the display content need to be changed a little.
For the segment type LCD module, if you need modify the outline size or display content, a new LCD glass module is need. We have to open new tooling for you.
3. This LCD display is HTN type, but I want STN type, can you make?
That's all right. We can change for you as per you request.
4. I want customize a new LCD module. Can you do?
Yes, we can. Please send your drawing paper. If you have not, please advise me the outline size of the LCD display, display information (Glass thickness, Polarizer, Display Type, Connector mode, Storage Temp. Operating Temp. Supply Voltage, Viewing direction, drive condition), we can customize for you.
5. What is leading time for tooling?
General speaking, it will cost 15 to 25 days after drawing paper confirmation and tooling charge payment, we can report you the exact time when you confirm the drawing paper.
6. Can you send us samples for checking?
Yes. Samples order is available.
7. What is the Leading Time?
If we have stock for the standard ones, the leading time is one day after payment. If it is the mass production for special ones, the leading time is about 15-30 days. Suppose we can finish earlier, we will report the information in advanced.
Packaging
Carton boxes, Cupboard, EPE, Blister Tray. About the package way, it is up to the size of products, according to customer request and demand. Different countries have not same requirement.
Shipping
Express way as DHL, Fedex, EMS, UPS, air shipping, sea shipping. Any shipping method you prefer.
