2.8" Inch 240x320 With ILI9341 IC And RGB/MCU Interface Touch LCD Display
Product Overview

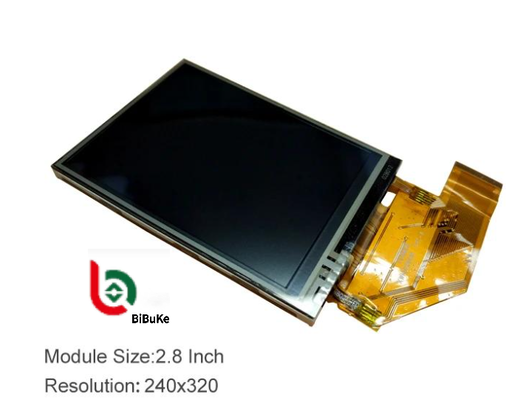

This is a 2.8-inch TFT color liquid crystal touch display module with a resolution of 240×320. The core driver is ILI9341 (often written as il9341). It supports both RGB and MCU (8/16-bit parallel) interfaces and comes with a resistive touch screen. It is a commonly used small-sized color display solution in embedded systems.
Product Specifications
| Product: |
2.8" Inch TFT LCD MODULE |
Touch Screen: |
With Resistive Touch Screen |
| Resolution: |
240x320 |
Viewing Direction: |
12 O'clock |
| Interface: |
RGB/MCU |
Pin Number: |
50 Pins |
| Connection: |
FPC Type Connection |
Surface Luminance: |
280-350 Cd/m² |
| Operating Temp.: |
-20℃ To +70℃ |
Compliance: |
REACH & RoHS Compliant |
Core Parameters
- Screen size: 2.8 inches (diagonal)
- Resolution: 240 (columns) × 320 (rows), RGB pixel arrangement
- Driver chip: ILI9341, with built-in GRAM, display controller and power circuit
- Touch type: Four-wire resistive touchscreen, paired with XPT2046 touch chip
- Display color: 16-bit RGB565, capable of showing 65,536 colors
- Interfaces: MCU interface (8-bit / 16-bit parallel) and RGB interface
- Brightness / contrast: Approximately 280-300 cd/m², contrast 300:1
- Power supply: Logic 3.3V, backlight 5V, working current approximately 60-90mA
- Size: Module approximately 50×69.2×3.65mm, display area 43.2×57.6mm
- Operating temperature: -20°C to +70°C
Main Applications
- Embedded Development Board: Standard display module for development boards such as STM32, ESP32, and Arduino
- Smart Home Appliances Control: Operation panels for rice cookers, air conditioners, washing machines, and smart speakers
- Industrial Control Terminal: Display and human-machine interaction interfaces for small PLCs, data collectors, and instruments
- Consumer Electronics: Color screens for mini game consoles, MP4 players, digital photo frames, and educational devices
- Internet of Things Devices: Local display and touch operation interfaces for sensor nodes and smart home controllers
- Education and Maker Projects: Interactive screens in electronic DIY, course design, and robot projects
Frequently Asked Questions
1. I want the LCD display 8 digits and the outline size is 65x30x2.8mm?
No problem. Firstly, please kindly send us your specification/drawing paper. If you have not the specification, you can also provide your samples; we will recommend the suitable one if it is standard products. Or we can customize for you based on your own requirement.
2. This LCD is just what we want, but it is big size, do you have any smaller size? And the display content need to be changed a little.
For the segment type LCD module, if you need modify the outline size or display content, a new LCD glass module is need. We have to open new tooling for you.
3. This LCD display is HTN type, but I want STN type, can you make?
That's all right. We can change for you as per you request.
4. I want customize a new LCD module. Can you do?
Yes, we can. Please send your drawing paper. If you have not, please advise me the outline size of the LCD display, display information (Glass thickness, Polarizer, Display Type, Connector mode, Storage Temp. Operating Temp. Supply Voltage, Viewing direction, drive condition), we can customize for you.
5. What is leading time for tooling?
General speaking, it will cost 15 to 25 days after drawing paper confirmation and tooling charge payment, we can report you the exact time when you confirm the drawing paper.
6. Can you send us samples for checking?
Yes. Samples order is available.
7. What is the Leading Time?
If we have stock for the standard ones, the leading time is one day after payment. If it is the mass production for special ones, the leading time is about 15-30 days. Suppose we can finish earlier, we will report the information in advanced.
